N°99672 · Family detail
TokinaWide·CANON EF mount·1998

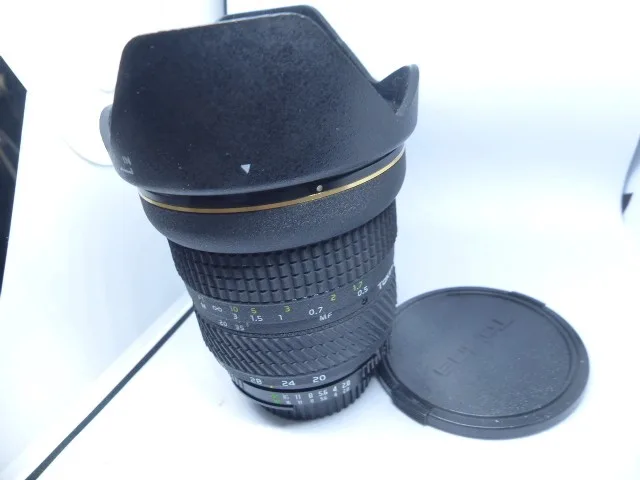

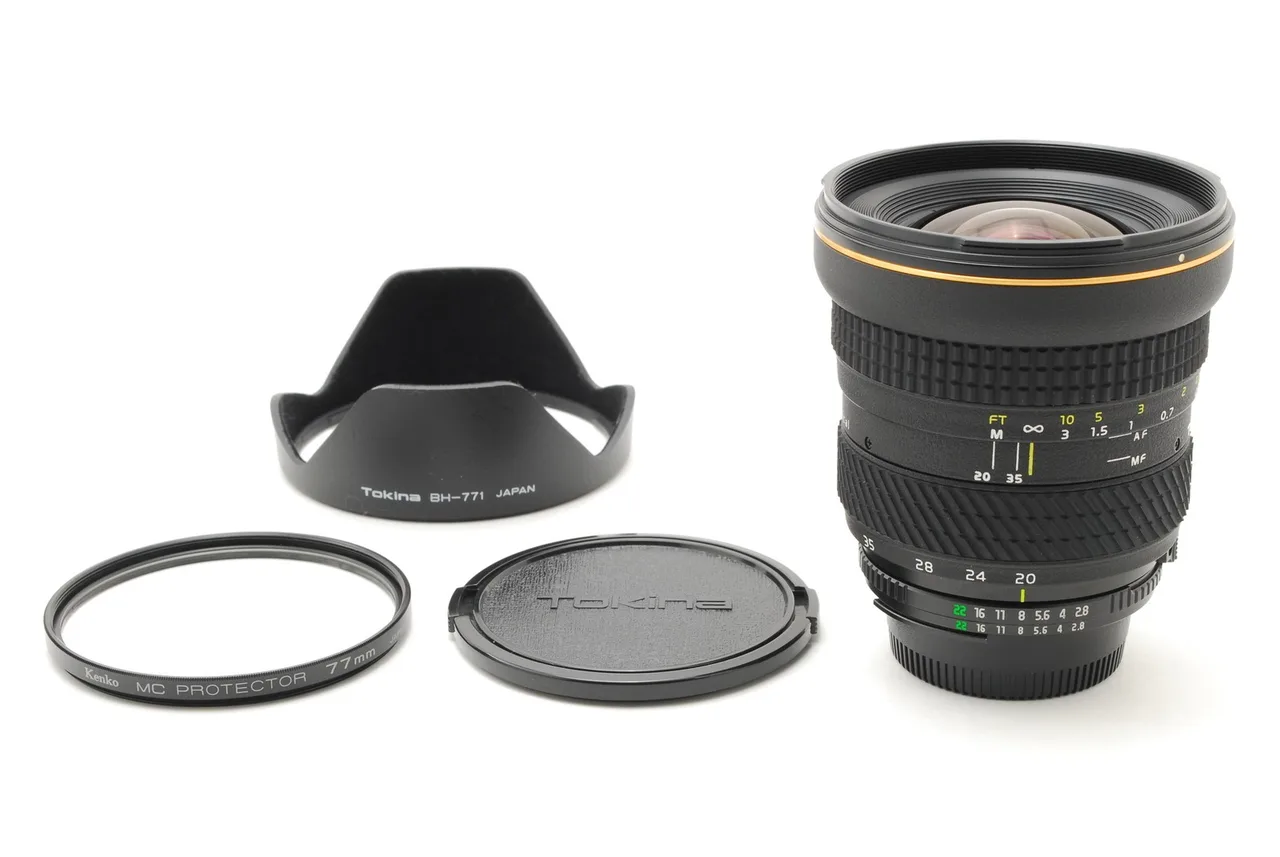

Tokina AT-X Pro AF 20-35mm F/2.8
Specifications01
MountCANON EF
Focal length20-35mm
Max aperturef/2.8
TypeWide · Zoom
Release year1998
Weight585 g
Filter size77 mm
Min focus distance0.5 m
Max magnification0.0862
Aperture blades9
Optical elements15
Groups11
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera(Canon EF, Minolta/Sony A)
Aperture ring (Manual settings + Auto Exposure setting)(Nikon F, Pentax K)
Lens hoodBH-771 - Bayonet-type petal-shaped
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeWide-angle zoom lens
Field Notes02
Tokina AT-X Pro AF 20–35mm f/2.8 zoom lens for Canon EF mount. Designed for general wide-to-standard shooting, using a constant f/2.8 maximum aperture.
AI-assisted summary — verify against linked sources
Other Mounts03
This lens family is also indexed in 3 other mounts.
