N°99086 · Family detail
CanonMacro·CANON EF mount·1996

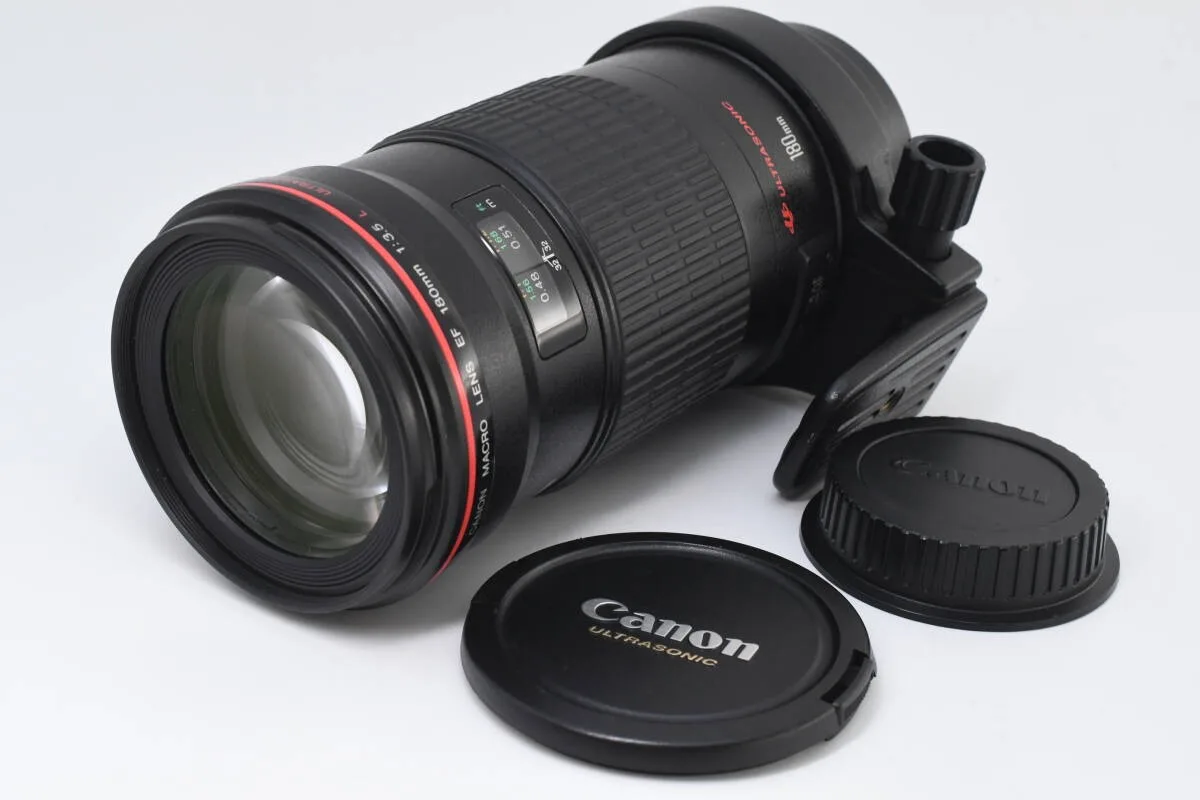

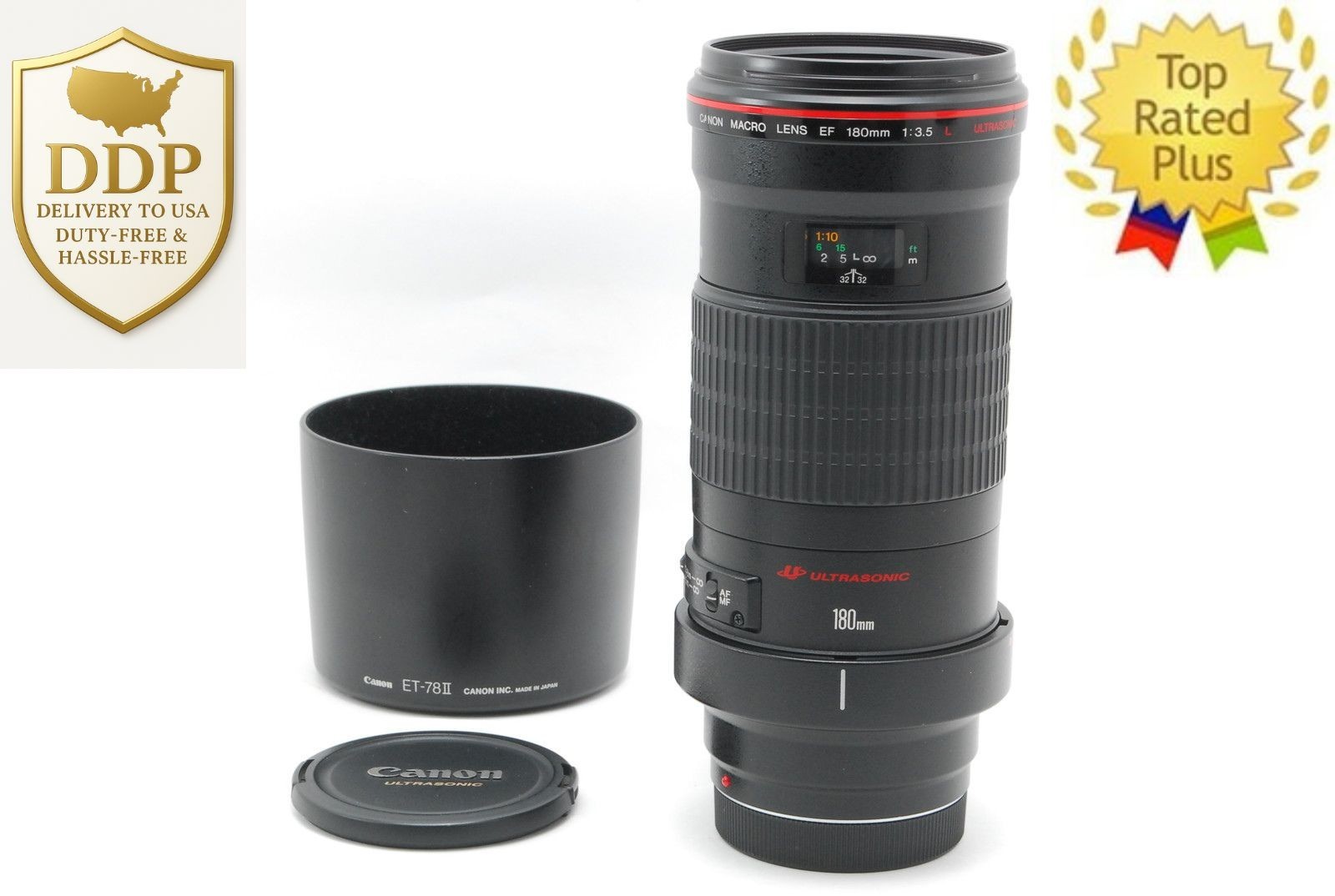

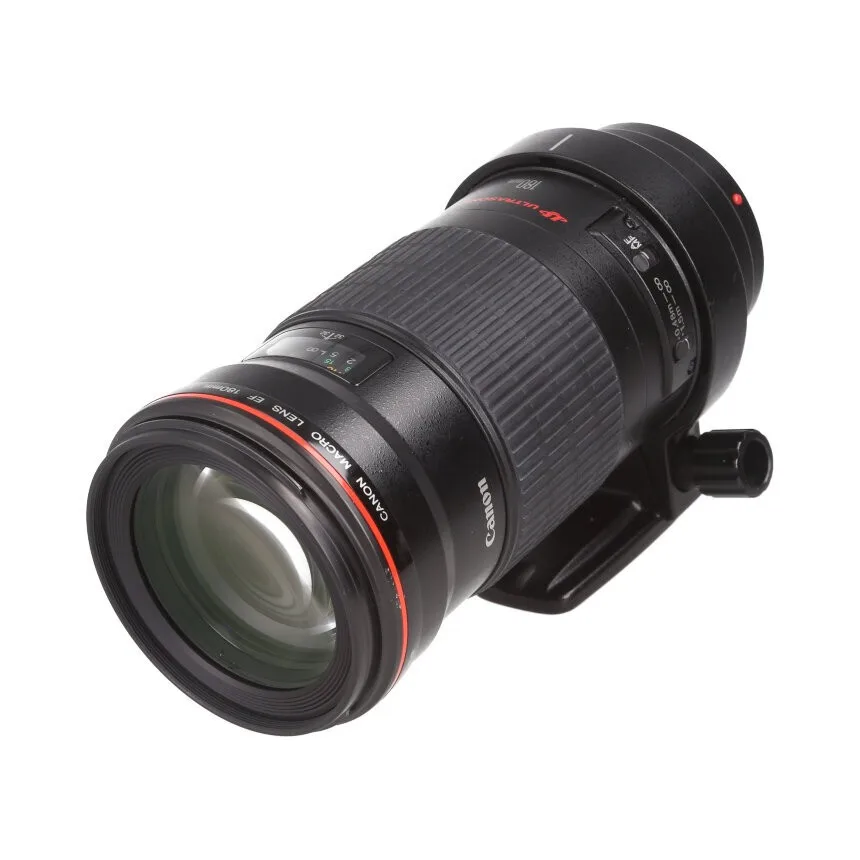

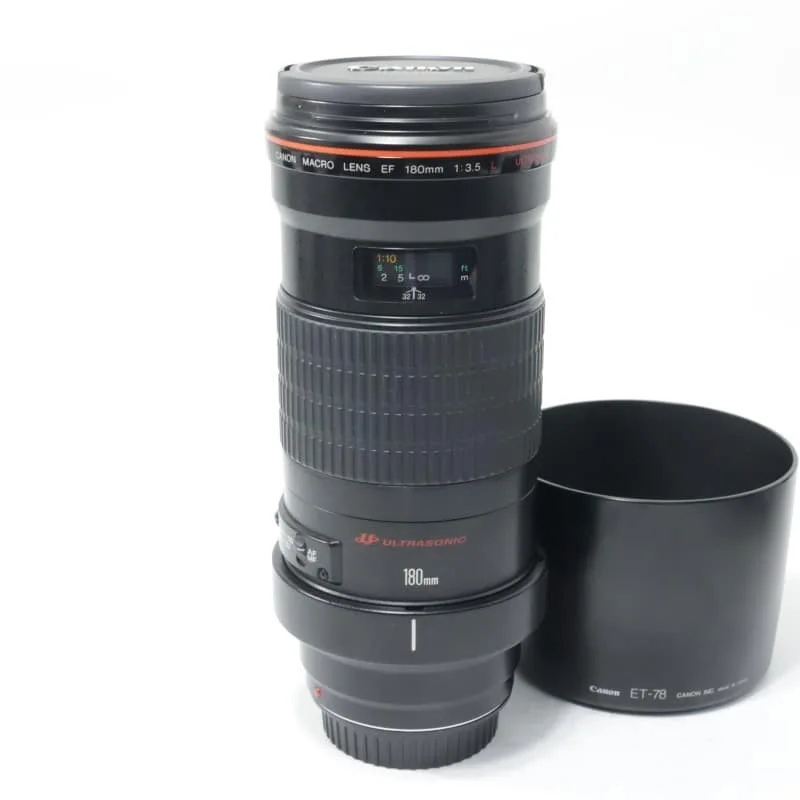

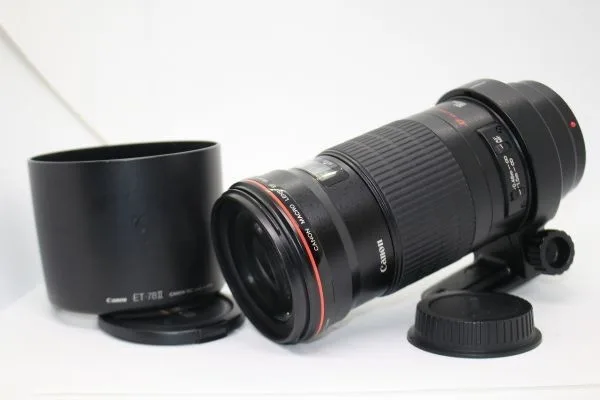

Canon EF 180mm F/3.5L Macro USM
Specifications01
MountCANON EF
Focal length180mm
Max aperturef/3.5
TypeMacro · Telephoto · Prime
Release year1996
Weight1090 g
Filter size72 mm
Physical length187 mm
Min focus distance0.48 m
Max magnification1
Aperture blades8
Optical elements14
Groups12
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodET-78II - Bayonet-type round
TeleconvertersCanon Extender EF 1.4X II→ 252mm F/4.9
Canon Extender EF 1.4X III→ 252mm F/4.9
Canon Extender EF 2X II→ 360mm F/7
Canon Extender EF 2X III→ 360mm F/7
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeMacro lens
Summary02
Canon EF 180mm f/3.5L Macro USM is a macro prime lens for close-up photography, with a medium-telephoto focal length for portrait and detailed subjects. It uses an ultrasonics (USM) autofocus system.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
