N°99067 · Family detail
SigmaMacro·CANON EF mount·2005
Sigma 180mm F/3.5 APO EX DG Macro
Specifications01
MountCANON EF
Focal length180mm
Max aperturef/3.5
TypeMacro · Telephoto · Prime
Release year2005
Weight965 g
Filter size72 mm
Min focus distance0.46 m
Max magnification1
Aperture blades9
Optical elements13
Groups10
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera(Canon EF, Minolta/Sony A, Sigma SA)
Aperture ring (Manual settings + Auto Exposure setting)(Nikon F, Pentax K)

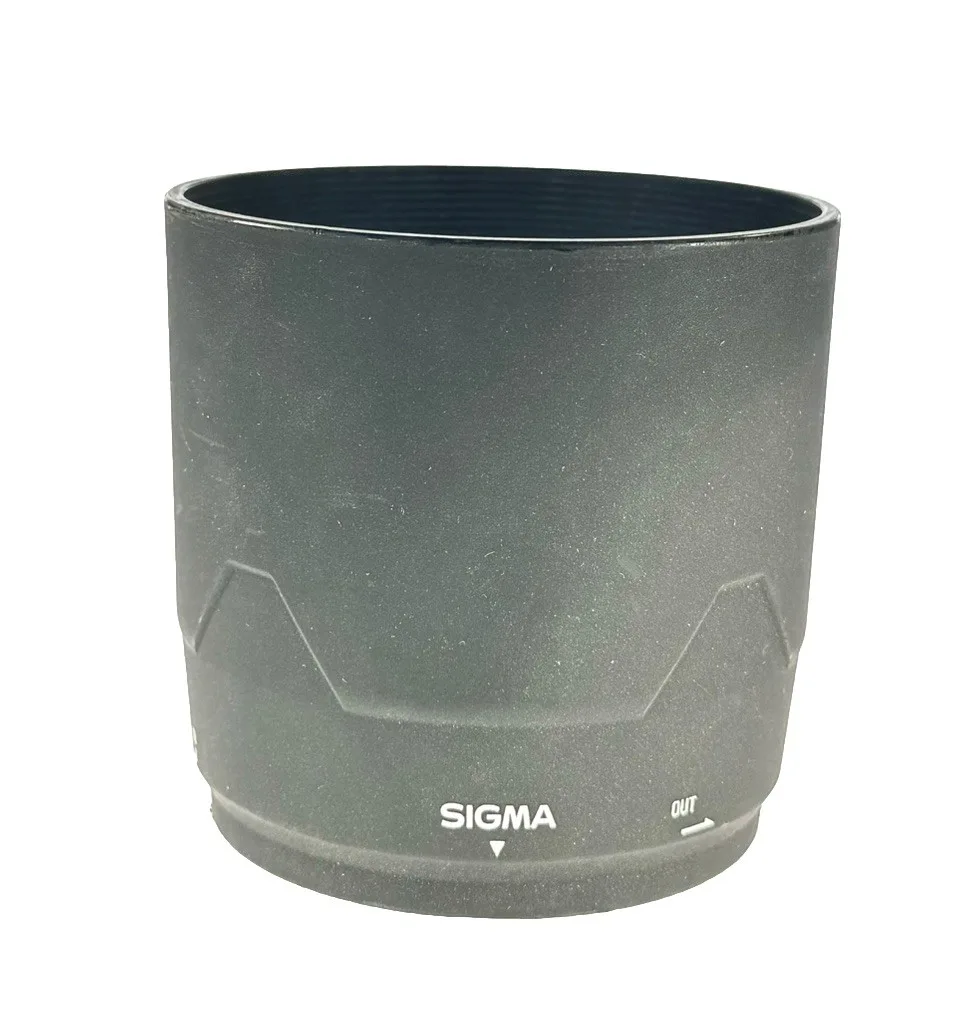

Lens hoodLH780-02 - Bayonet-type round
TeleconvertersSigma APO Tele Converter 1.4x EX DG→ 252mm F/4.9
Sigma APO Tele Converter 2x EX DG→ 360mm F/7
EraDigital era
Production statusDiscontinued
Additional Info02
Lens TypeMacro lens
Summary02
Sigma 180mm f/3.5 APO EX DG HSM is a macro prime for Canon EF mounts, intended for close-up work with moderate telephoto framing. It uses a fixed 180mm focal length and a maximum aperture of f/3.5.
Where can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
This lens family is also indexed in 2 other mounts.
