N°98577 · Family detail
CanonTilt-shift·CANON EF mount

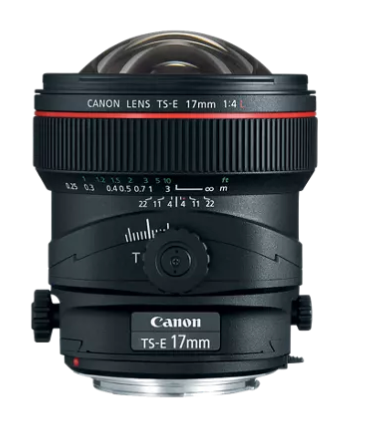

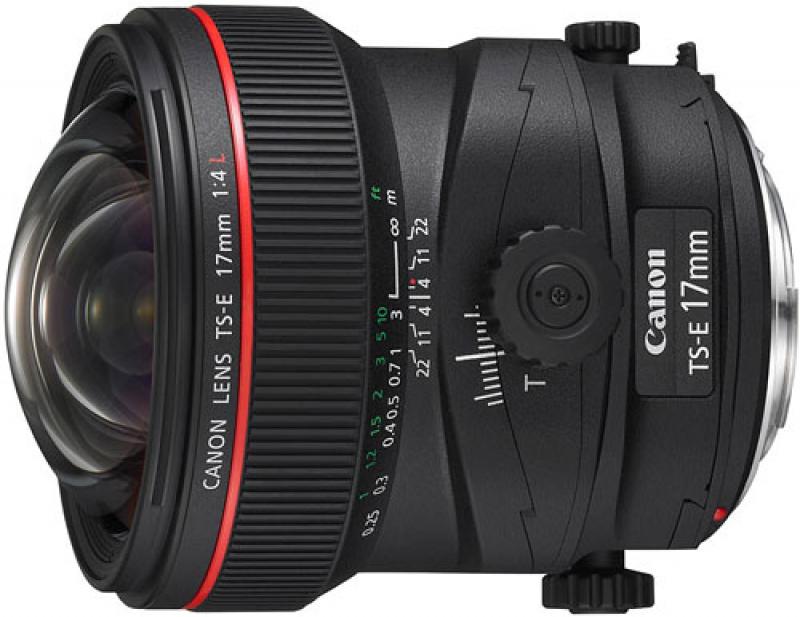

Canon TS-E 17mm F/4 L
Specifications01
MountCANON EF
Focal length17mm
Max aperturef/4
TypeTilt-shift · Wide · Prime
Weight820 g
Physical length106.7 mm
Min focus distance0.25 m
Optical elements18
Groups12
Min aperturef/22
Additional Info02
ModelL Tiltshift
FormatFF
SeriesTS-E
Iris Blades8
Image Circle Mm67.2
Summary02
Canon TS-E 17mm f/4 L is a tilt-shift prime lens for the Canon EF mount, used for architectural and perspective-control work. It has a fixed 17mm focal length and maximum aperture of f/4.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
