N°98574 · Family detail
SigmaWide·L-MOUNT mount·2023

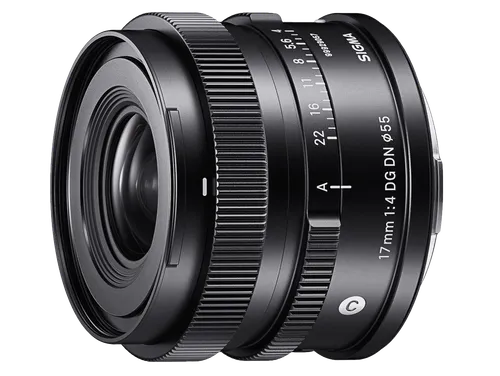

Sigma 17mm F/4 DG DN | C
Specifications01
MountL-MOUNT
Focal length17mm
Max aperturef/4
TypeWide · Prime
Release year2023
Weight225 g
Filter size55 mm
Physical length49 mm
Min focus distance0.12 m
Max magnification0.2778
Aperture blades7
Optical elements9
Groups8
AutofocusYes
StabilizationNo
Aperture controlAperture ring (Manual settings + Auto Exposure setting)
Lens hoodLH576-03 - Bayonet-type petal-shaped
TeleconvertersNot compatible
EraDigital era
Additional Info02
Lens TypeUltra-wide angle prime lens
Summary02
Sigma 17mm F4 DG DN is a fixed 17mm prime lens for L-mount cameras, designed for wide-angle photography. The maximum aperture is f/4 for general daylight use and compact travel or landscape work.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The L-Mount mount has a flange distance of 20 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Leica TL and Sigma DC lenses cover APS-C only.
- Sony EAdapter · 2 mm
The camera mount (46.1 mm) is narrower than the lens mount (51.6 mm). A large rear element can darken the corners.
- Nikon ZAdapter · 4 mm
- Fujifilm XAdapter · 2.3 mm
- L-MountNative
- Canon EF-MAdapter · 2 mm
No plain adapter reaches infinity focus on: Canon RF, Micro Four Thirds, Fujifilm G (GFX), Canon EF, Nikon F.
Other Mounts03
This lens family is also indexed in 2 other mounts.
