N°97232 · Family detail
PentaxWide·PENTAX K mount·2004
Smc Pentax-DA 14mm F/2.8 ED [IF]
Specifications01
MountPENTAX K
Focal length14mm
Max aperturef/2.8
TypeWide · Prime
Release year2004
Weight420 g
Filter size77 mm
Physical length69 mm
Min focus distance0.17 m
Max magnification0.1901
Aperture blades6
Optical elements12
Groups11
Min aperturef/22
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodPH-RBH77 - Bayonet-type petal-shaped
With filter access window
TeleconvertersHD Pentax-DA 1.4X AF Rear Converter AW→ 19.6mm F/3.9
EraDigital era
Production statusDiscontinued
Additional Info02
Lens TypeUltra-wide angle prime lens
Summary02
Pentax K-mount 14mm f/2.8 fixed (prime) ultra-wide-angle lens for general and landscape use, including low-light due to its fast maximum aperture.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Pentax K mount has a flange distance of 45.46 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Pentax DA and FA J lenses have no aperture ring. Use an adapter with its own aperture control.
- Pentax DA lenses are made for APS-C.
- Sony EAdapter · 27.46 mm
- Canon RFAdapter · 25.46 mm
- Nikon ZAdapter · 29.46 mm
- Fujifilm XAdapter · 27.76 mm
- L-MountAdapter · 25.46 mm
- Micro Four ThirdsAdapter · 26.21 mm
- Fujifilm G (GFX)Adapter · 18.76 mm
- Canon EF-MAdapter · 27.46 mm
- Canon EFAdapter · 1.46 mm
A rear element that sticks out can hit the camera mirror.
No plain adapter reaches infinity focus on: Nikon F.

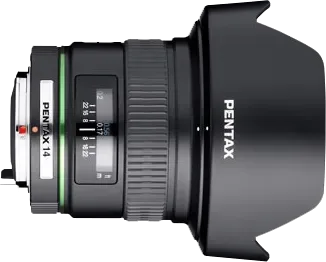

![Smc Pentax-DA 14mm F/2.8 ED [IF]](https://img.lens-database.com/lenses/variants/v1/9be7067052160ec8e234db3d3dc1f56c669bd212c53b2495660b0041e56a05c0/d32bc915e04020e3d5b7ec1ca81139da152c27354be56825c394de5ab55cea8d/326x262/1280.webp)
Other Mounts03
No alternate mounts are indexed for this family yet.
