N°96701 · Family detail
CanonTelephoto·CANON FD mount·1970

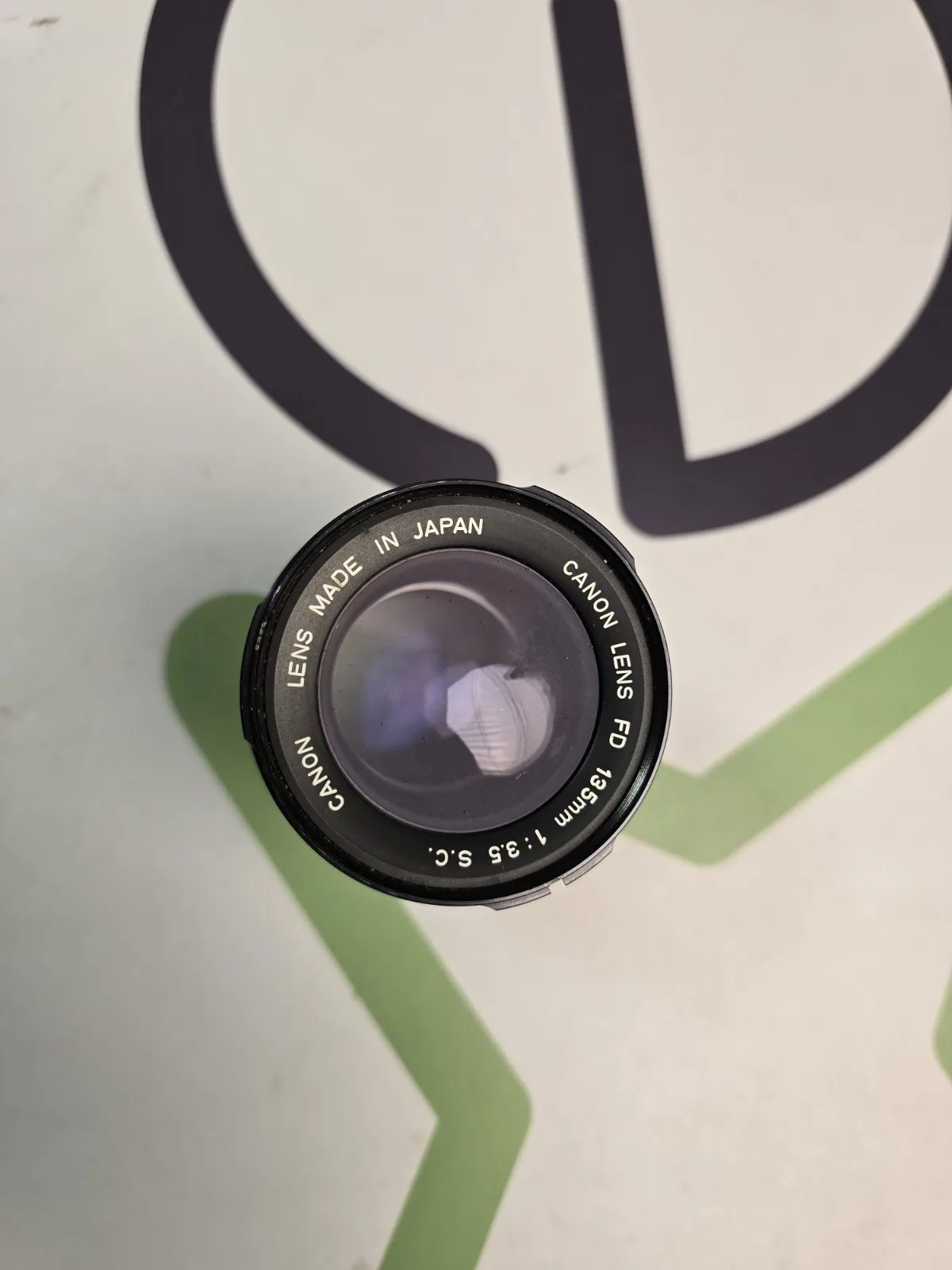

Canon FD 135mm F/3.5
Specifications01
MountCANON FD
Focal length135mm
Max aperturef/3.5
TypeTelephoto · Prime
Release year1970
Weight480 g
Filter size55 mm
Min focus distance1.5 m
Max magnification0.098
Aperture blades8
Optical elements4
Groups3
AutofocusNo
StabilizationNo
Aperture controlAperture ring (Manual settings + Auto Exposure setting)
Lens hoodBT-55 - Bayonet-type round
TeleconvertersCanon Extender FD 2X-B→ 270mm F/7
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeMedium telephoto prime lens
Summary02
Canon FD 135mm F/3.5 is a prime telephoto lens for Canon FD-mount cameras, suited for portraits, sports, and general telephoto use. It has a maximum aperture of f/3.5.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon FD mount has a flange distance of 42 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- FD lenses stay at full aperture until the camera moves a lever on the lens. Use an FD adapter with a ring that moves this lever.
- Sony EAdapter · 24 mm
- Canon RFAdapter · 22 mm
- Nikon ZAdapter · 26 mm
- Fujifilm XAdapter · 24.3 mm
- L-MountAdapter · 22 mm
- Micro Four ThirdsAdapter · 22.75 mm
- Fujifilm G (GFX)Adapter · 15.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 24 mm
No plain adapter reaches infinity focus on: Canon EF, Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
