N°95830 · Family detail
TokinaZoom·CANON EF mount·2009

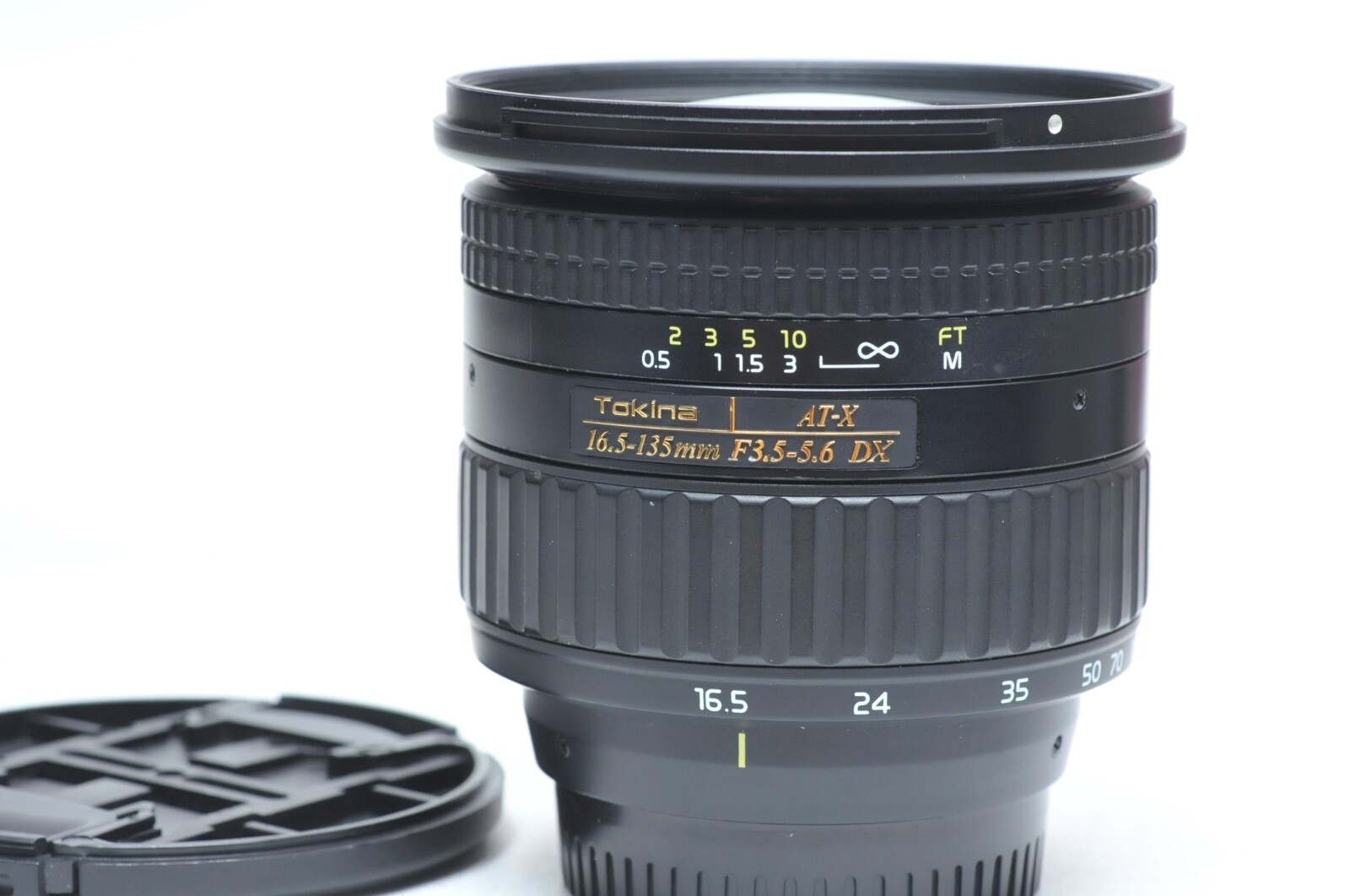

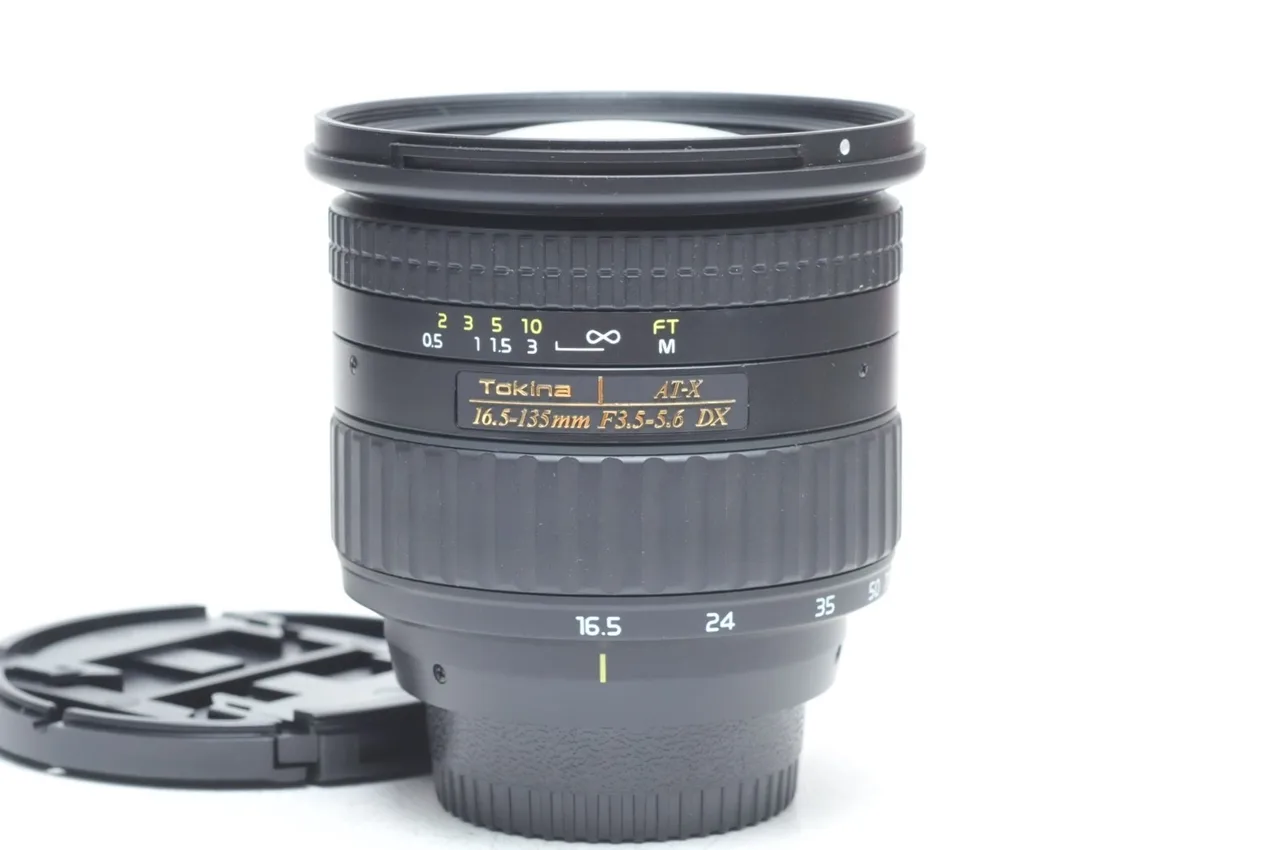

Tokina AT-X AF 16.5-135mm F/3.5-5.6 DX
Specifications01
MountCANON EF
Focal length16-135mm
Max aperturef/3.5
TypeZoom
Release year2009
Weight610 g
Filter size77 mm
Min focus distance0.5 m
Max magnification0.1842
Aperture blades9
Optical elements15
Groups12
Min aperturef/5.6
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodBH-777 - Bayonet-type petal-shaped
EraDigital era
Production statusDiscontinued
Additional Info02
Lens TypeSuperzoom lens
Summary02
Tokina AT-X AF DX zoom lens for Canon EF (APS-C), covering 16.5–135mm with variable maximum aperture of F/3.5–5.6. Intended for general-purpose wide-to-telephoto photography.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
This lens family is also indexed in 1 other mount.
