N°95549 · Family detail
Carl ZeissMacro·ROLLEI SL66 mount

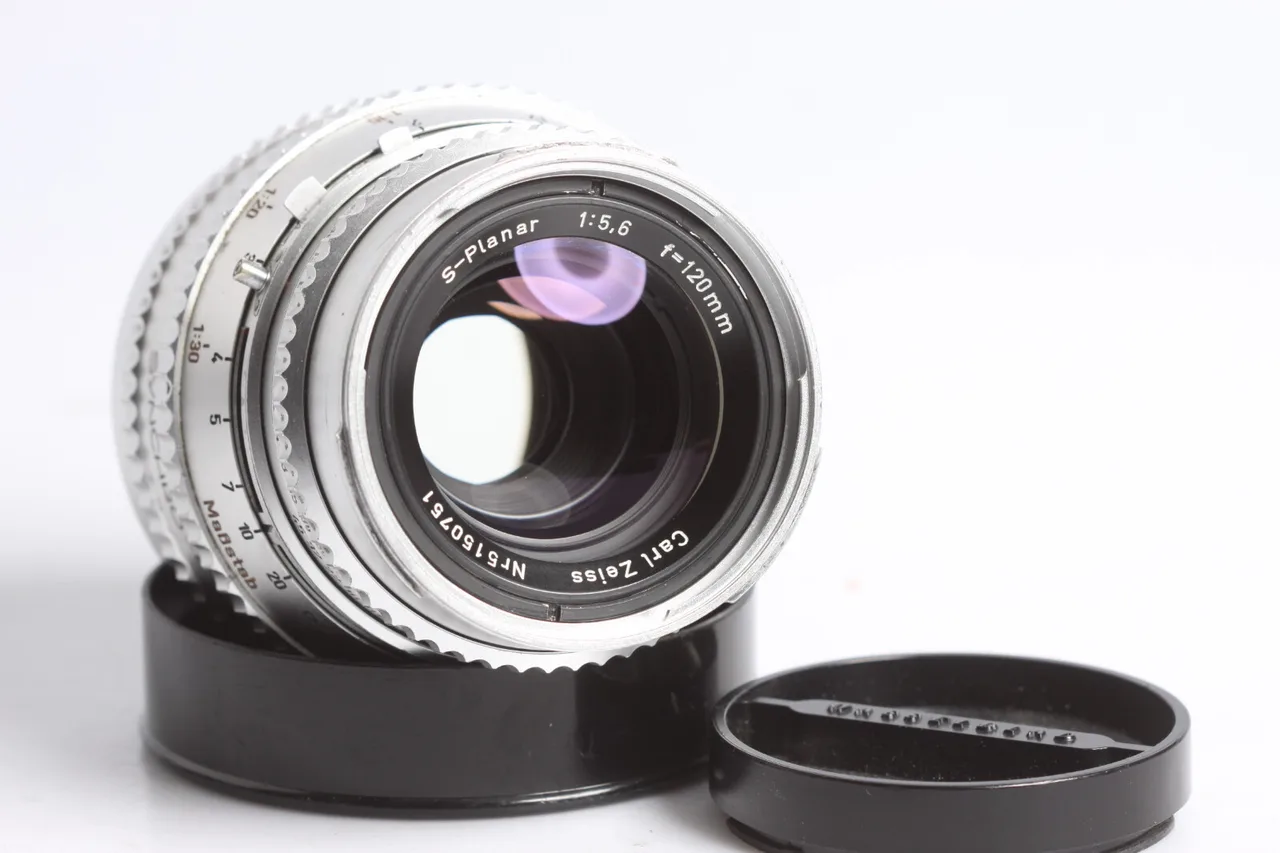

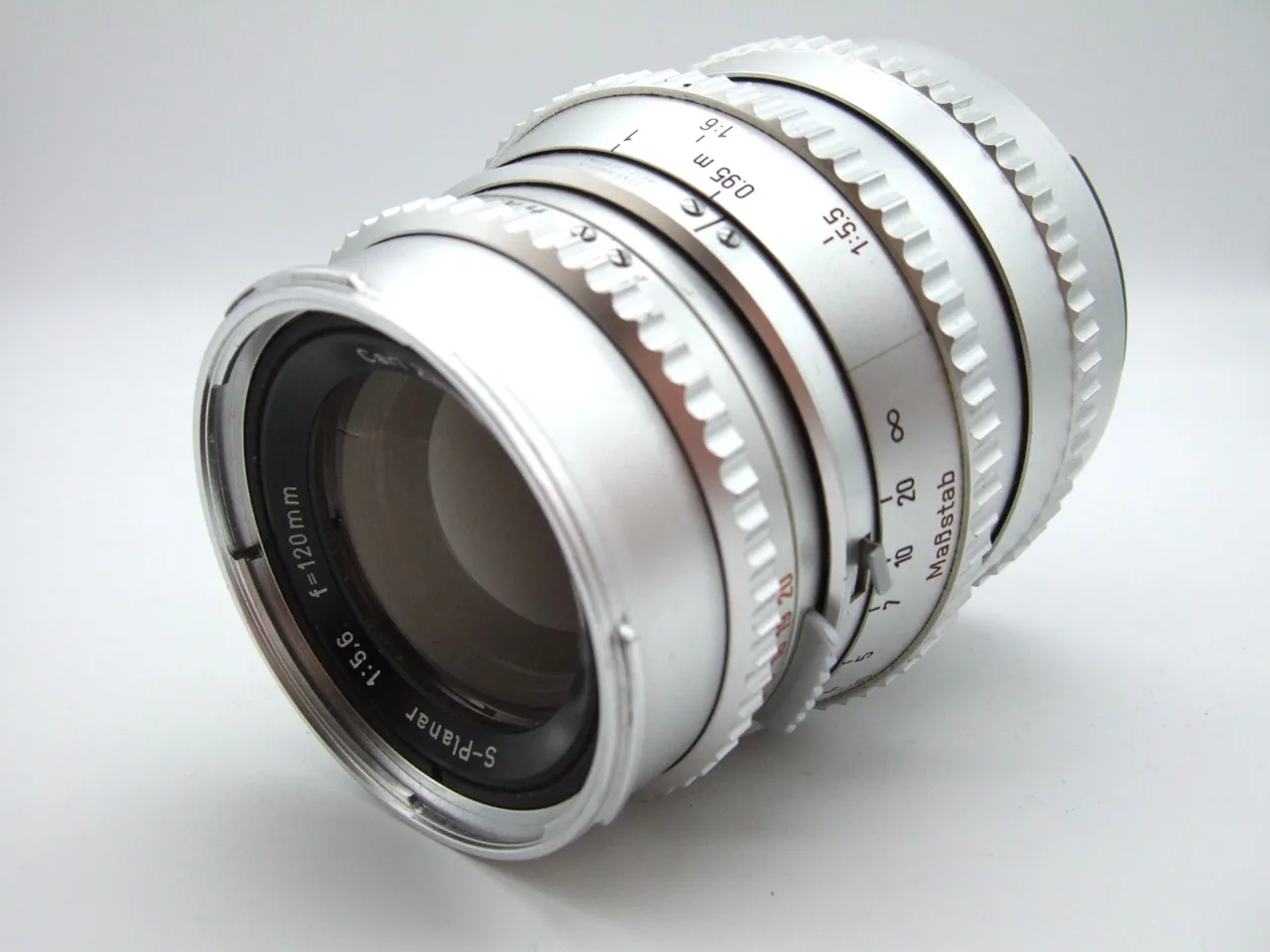

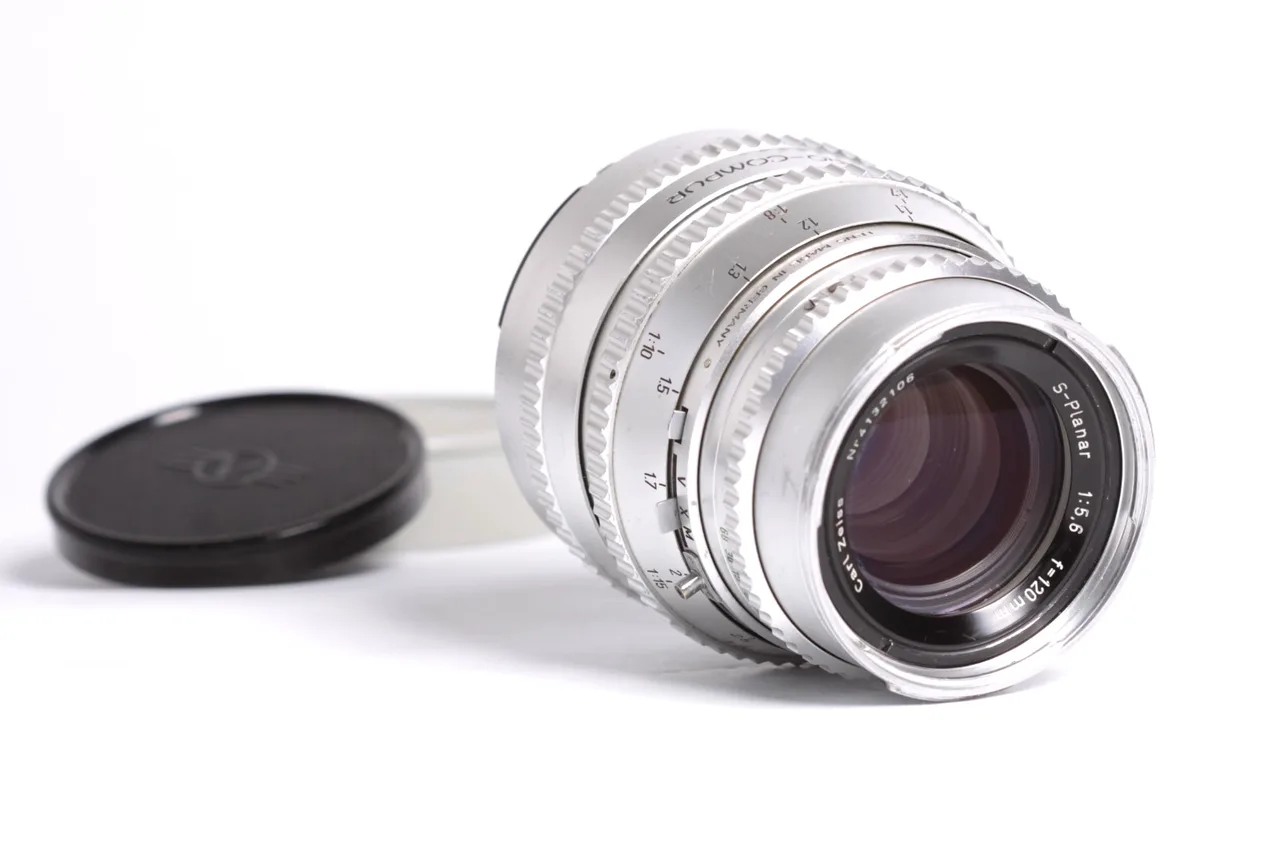

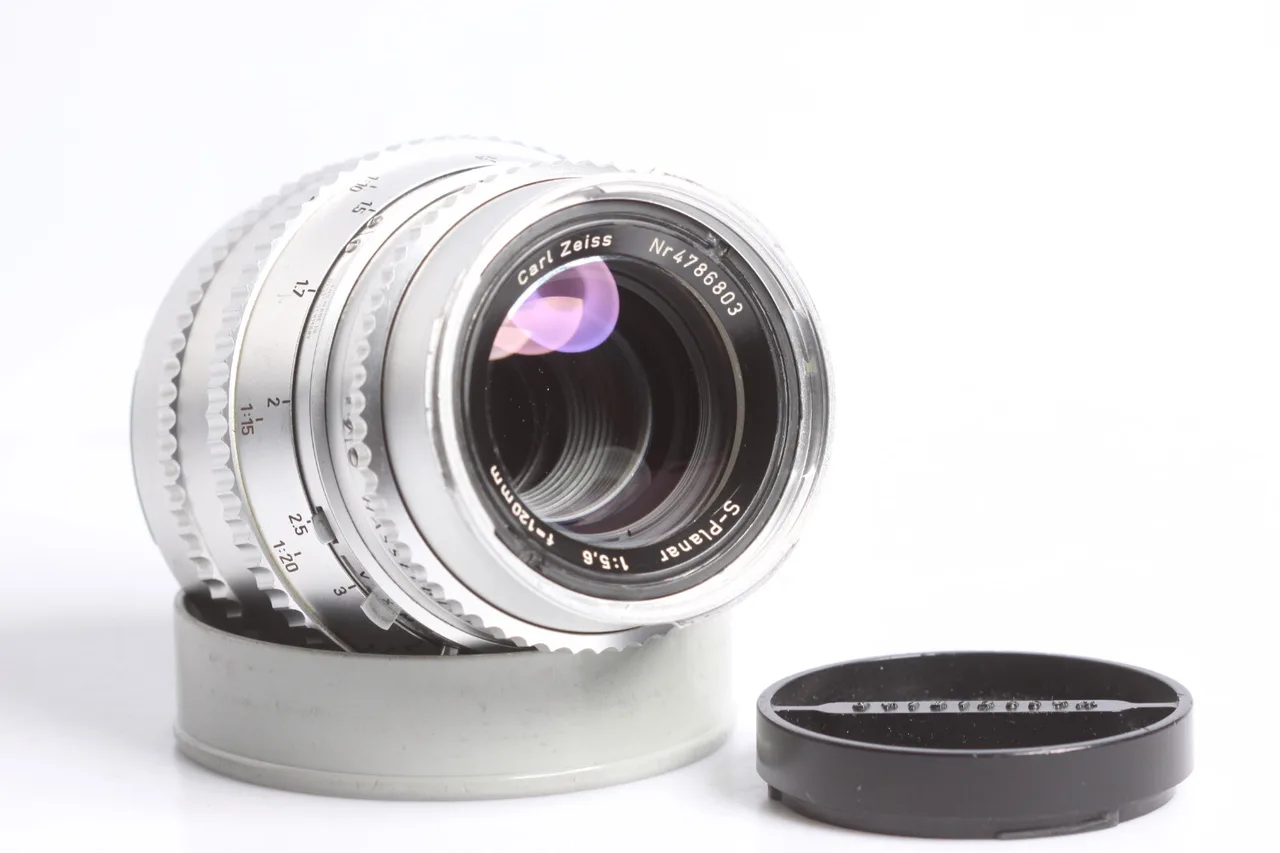

Carl Zeiss S-Planar 120mm F/5.6
Specifications01
MountROLLEI SL66
Focal length120mm
Max aperturef/5.6
TypeMacro · Telephoto · Prime
Weight435 g
Min focus distance0.35 m
Max magnification0.4
Aperture blades5
Optical elements6
Groups4
AutofocusNo
StabilizationNo
Aperture controlAperture ring (Manual settings only)
Lens hood206 020 (12025) - Bayonet-type square
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeMacro lens
Summary02
Carl Zeiss S-Planar 120mm is a prime lens for the Rollei SL66 (medium-format) system. It has a fixed f/5.6 aperture and is suited to applications like general-purpose imaging where longer focal length coverage is desired.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Rollei SL66 mount has a flange distance of 102.8 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Sony EAdapter · 84.8 mm
- Canon RFAdapter · 82.8 mm
- Nikon ZAdapter · 86.8 mm
- Fujifilm XAdapter · 85.1 mm
- L-MountAdapter · 82.8 mm
- Micro Four ThirdsAdapter · 83.55 mm
- Fujifilm G (GFX)Adapter · 76.1 mm
- Canon EF-MAdapter · 84.8 mm
- Canon EFAdapter · 58.8 mm
A rear element that sticks out can hit the camera mirror.
- Nikon FAdapter · 56.3 mm
A rear element that sticks out can hit the camera mirror.
Other Mounts03
No alternate mounts are indexed for this family yet.
