N°94609 · Family detail
CanonZoom·CANON EF mount·1992

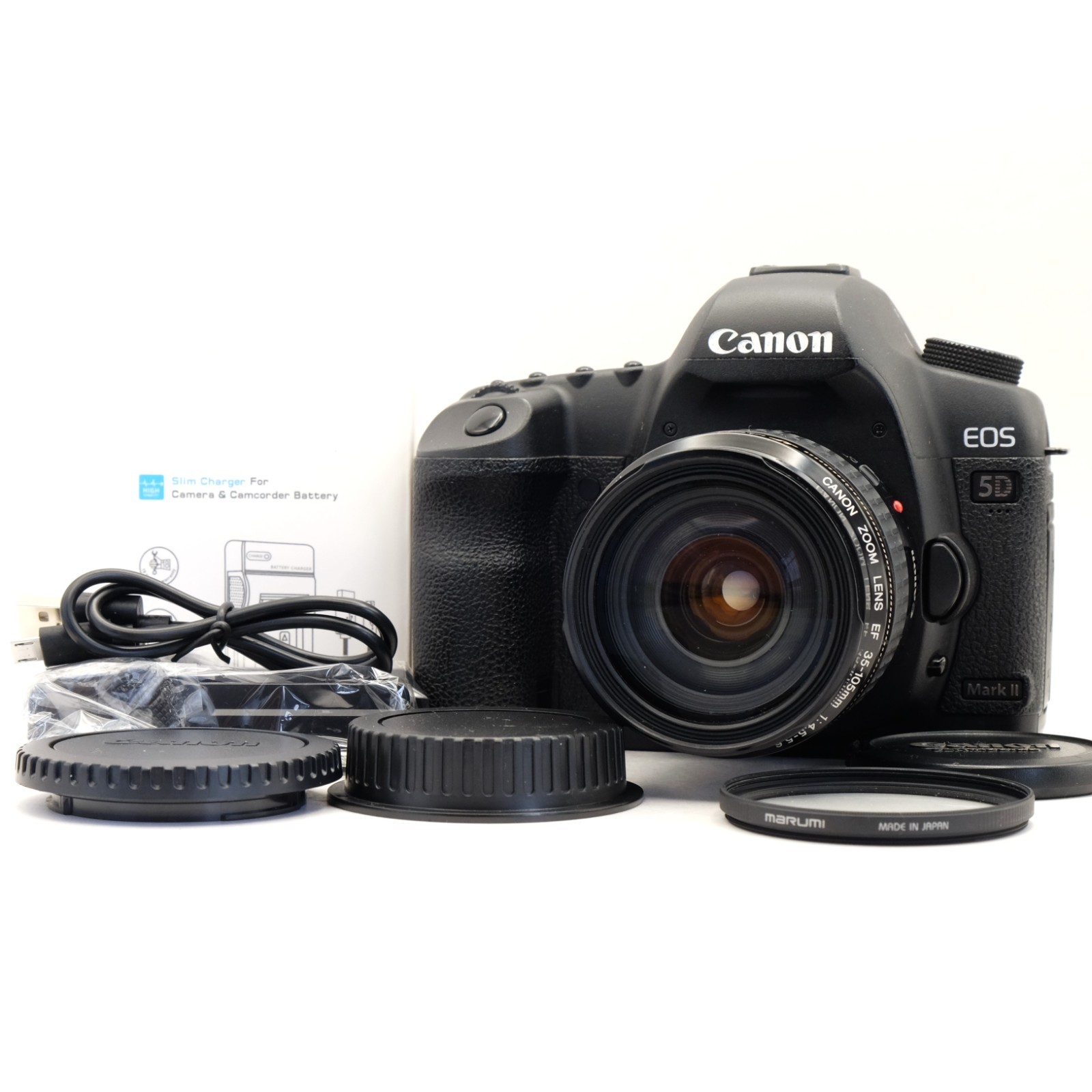

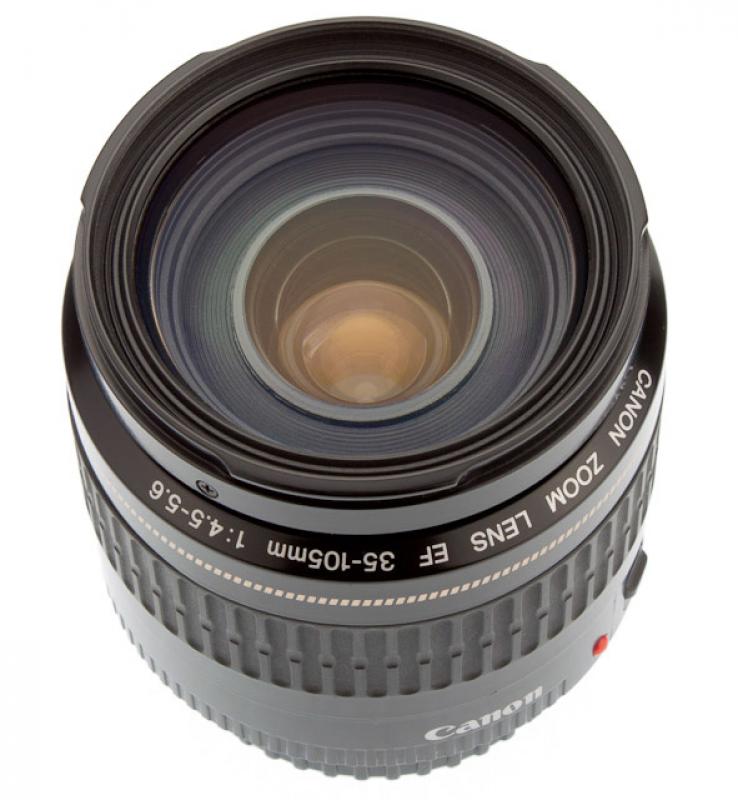

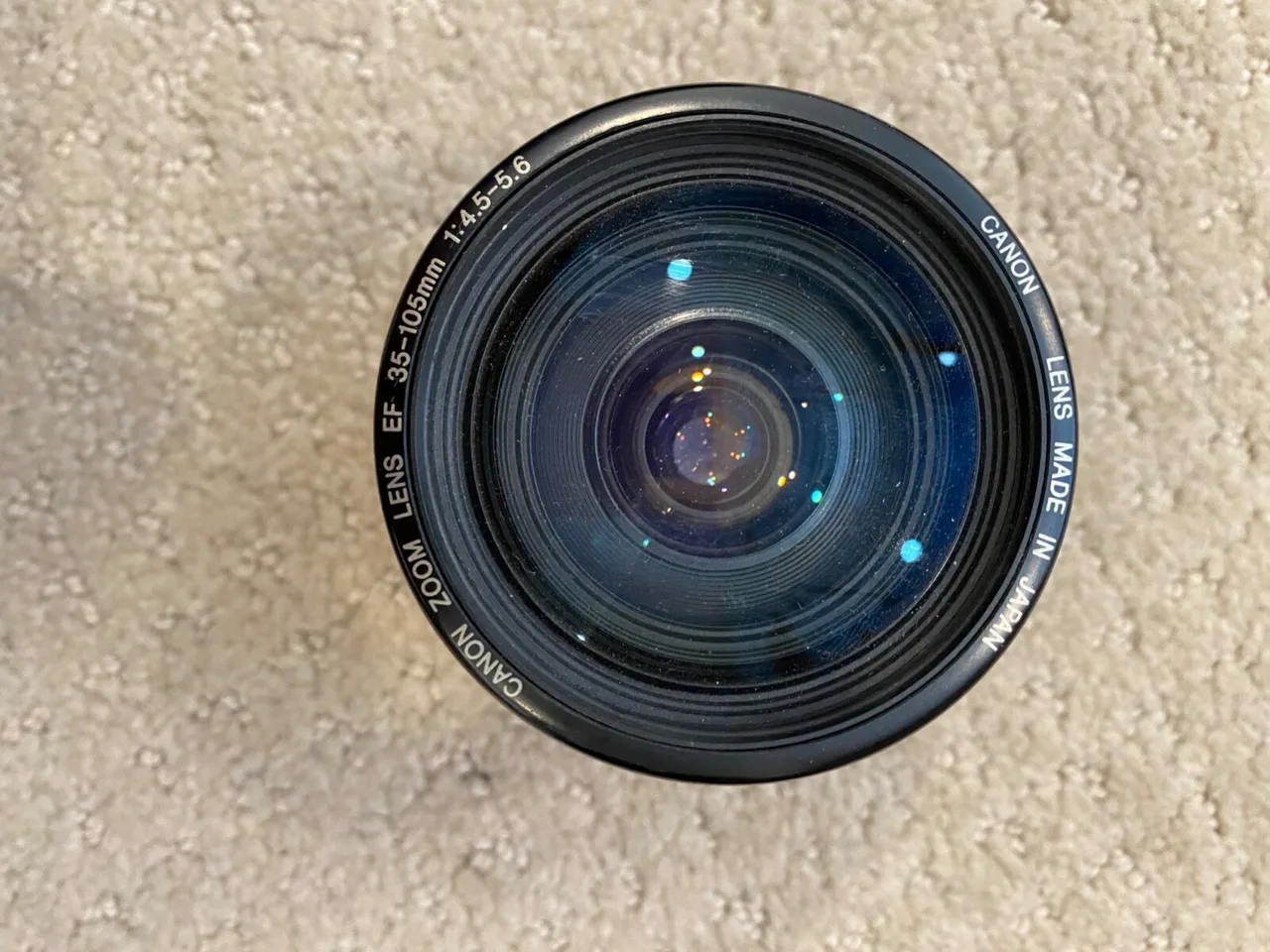

Canon EF 35-105mm F/4.5-5.6 USM
Specifications01
MountCANON EF
Focal length35-105mm
Max aperturef/4.5
TypeZoom
Release year1992
Weight280 g
Filter size58 mm
Physical length63 mm
Min focus distance0.85 m
Max magnification0.16
Aperture blades5
Optical elements13
Groups12
Min aperturef/5.6
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera

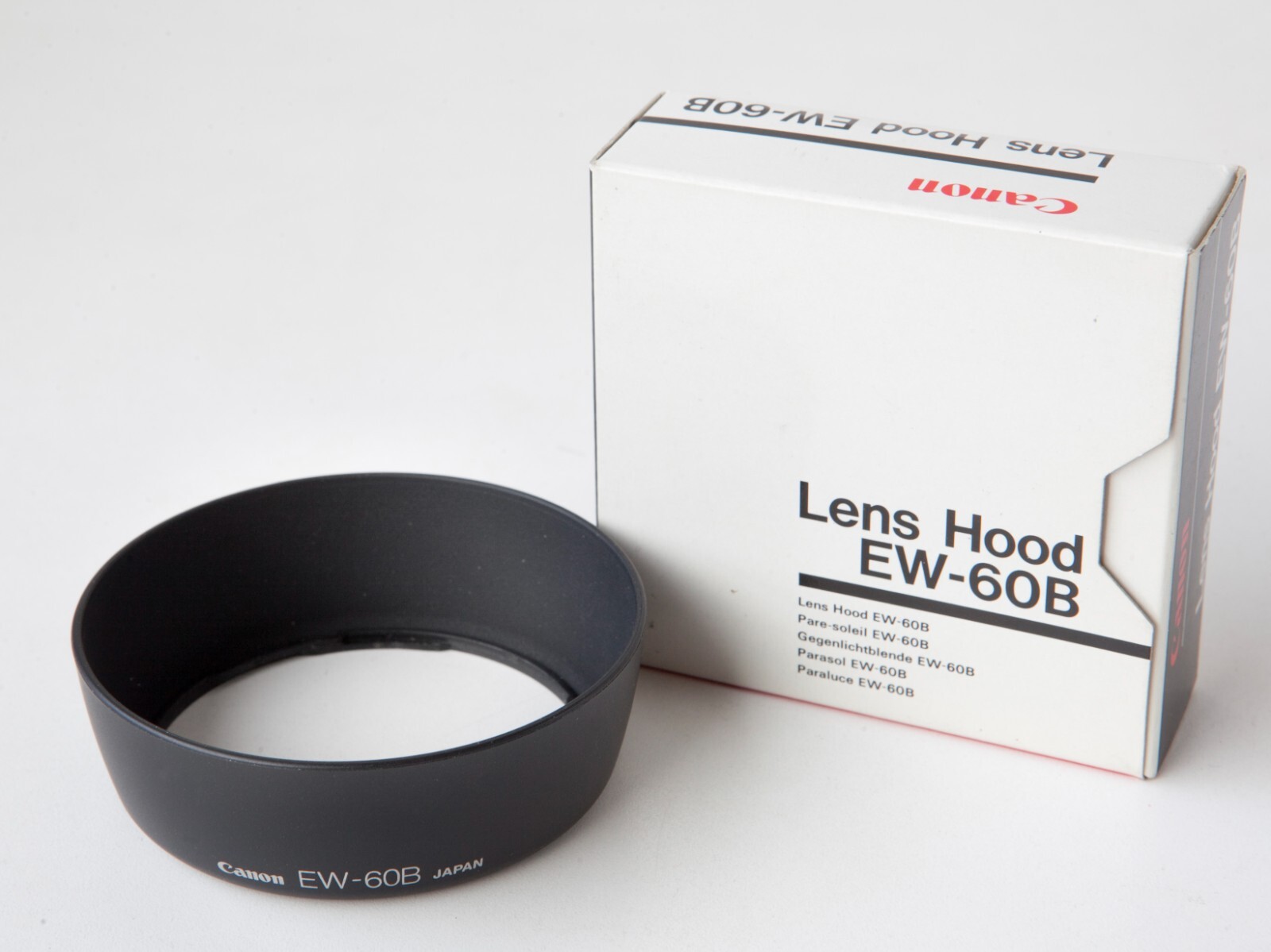

Lens hoodEW-60B - Bayonet-type round
TeleconvertersNot compatible
Sensor coverage43.3 mm
EraFilm era
Production statusDiscontinued
Additional Info02
SpecialUSM
Lens TypeStandard zoom lens
Summary02
Canon EF standard zoom lens with focal length 35–105mm and maximum aperture f/4.5–5.6. Intended for general-purpose photography (including short telephoto).
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
