N°94022 · Family detail
PentaxMacro·M42 mount·1964

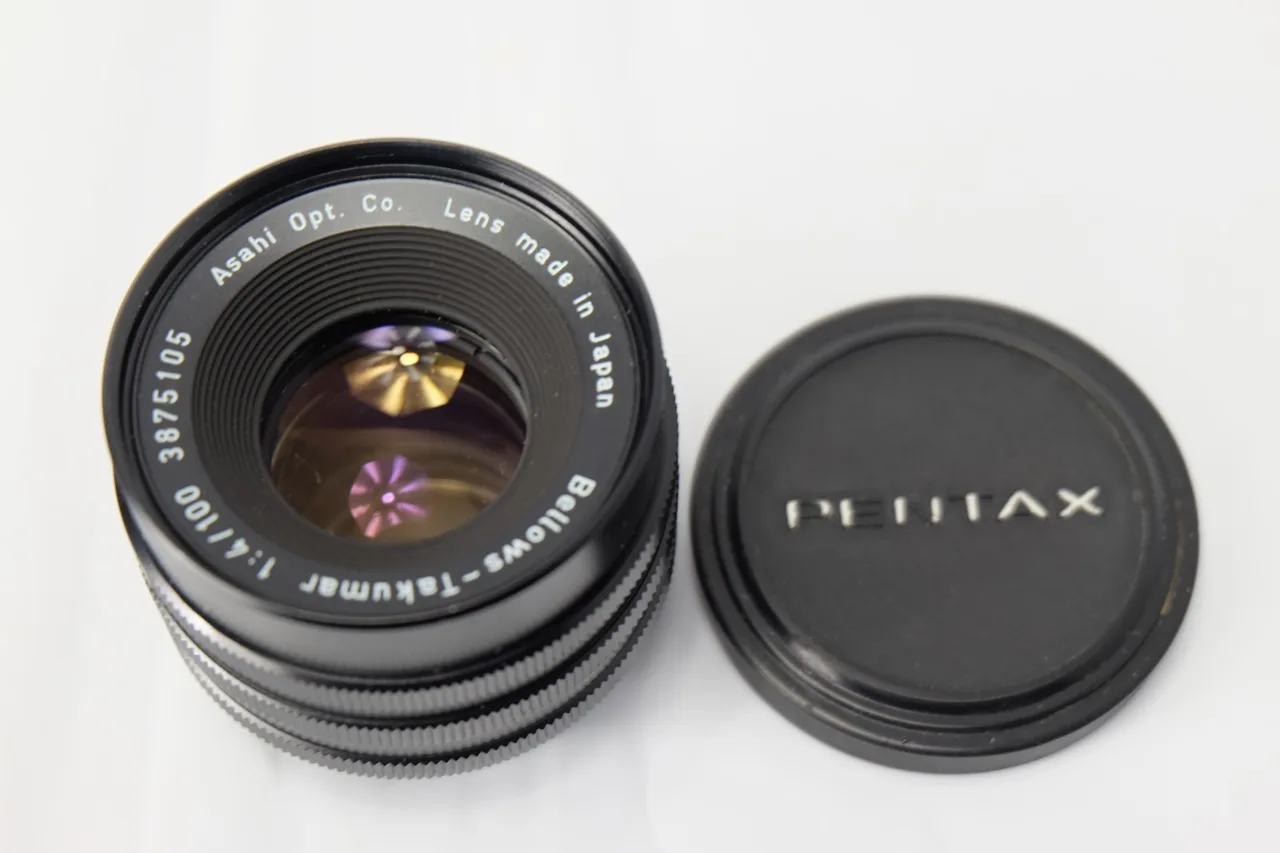

Asahi Bellows-Takumar 100mm F/4
Specifications01
MountM42
Focal length100mm
Max aperturef/4
TypeMacro · Telephoto · Prime
Release year1964
Weight142 g
Filter size49 mm
Aperture blades8
Optical elements5
Groups3
AutofocusNo
StabilizationNo
Aperture controlPreset ring + Aperture ring
Lens hoodScrew-type round
TeleconvertersNot available
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeMacro lens
Summary02
Asahi Bellows-Takumar 100mm f/4 is a manual-focus M42 prime lens designed for use with bellows for close-up and macro-style photography.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The M42 screw mount has a flange distance of 45.46 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Many M42 lenses close the aperture only when a pin at the rear is pressed. Use an adapter that presses the pin, or set the A/M switch to M.
- Sony EAdapter · 27.46 mm
- Canon RFAdapter · 25.46 mm
- Nikon ZAdapter · 29.46 mm
- Fujifilm XAdapter · 27.76 mm
- L-MountAdapter · 25.46 mm
- Micro Four ThirdsAdapter · 26.21 mm
- Fujifilm G (GFX)Adapter · 18.76 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 27.46 mm
- Canon EFAdapter · 1.46 mm
A rear element that sticks out can hit the camera mirror.
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
