N°93453 · Family detail
CanonTelephoto·CANON EF mount·2014

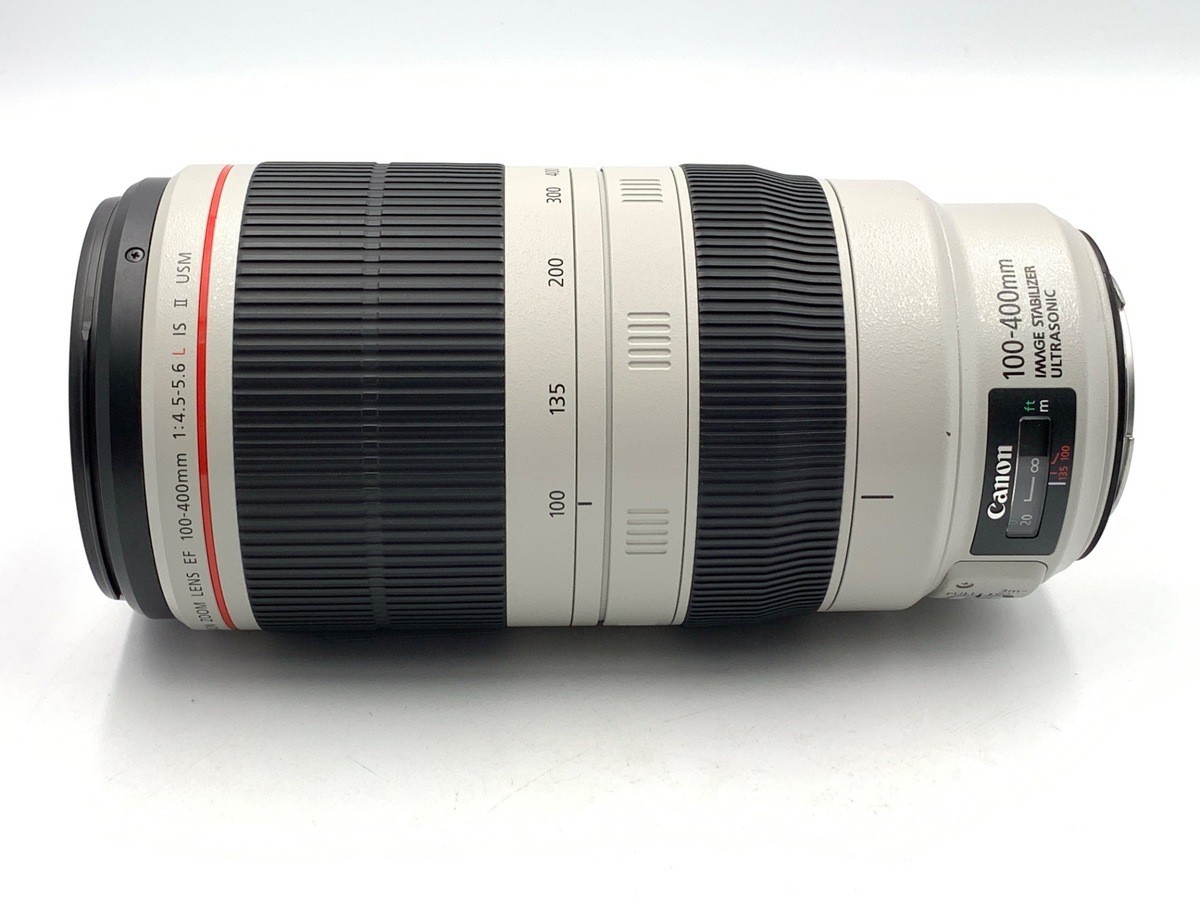

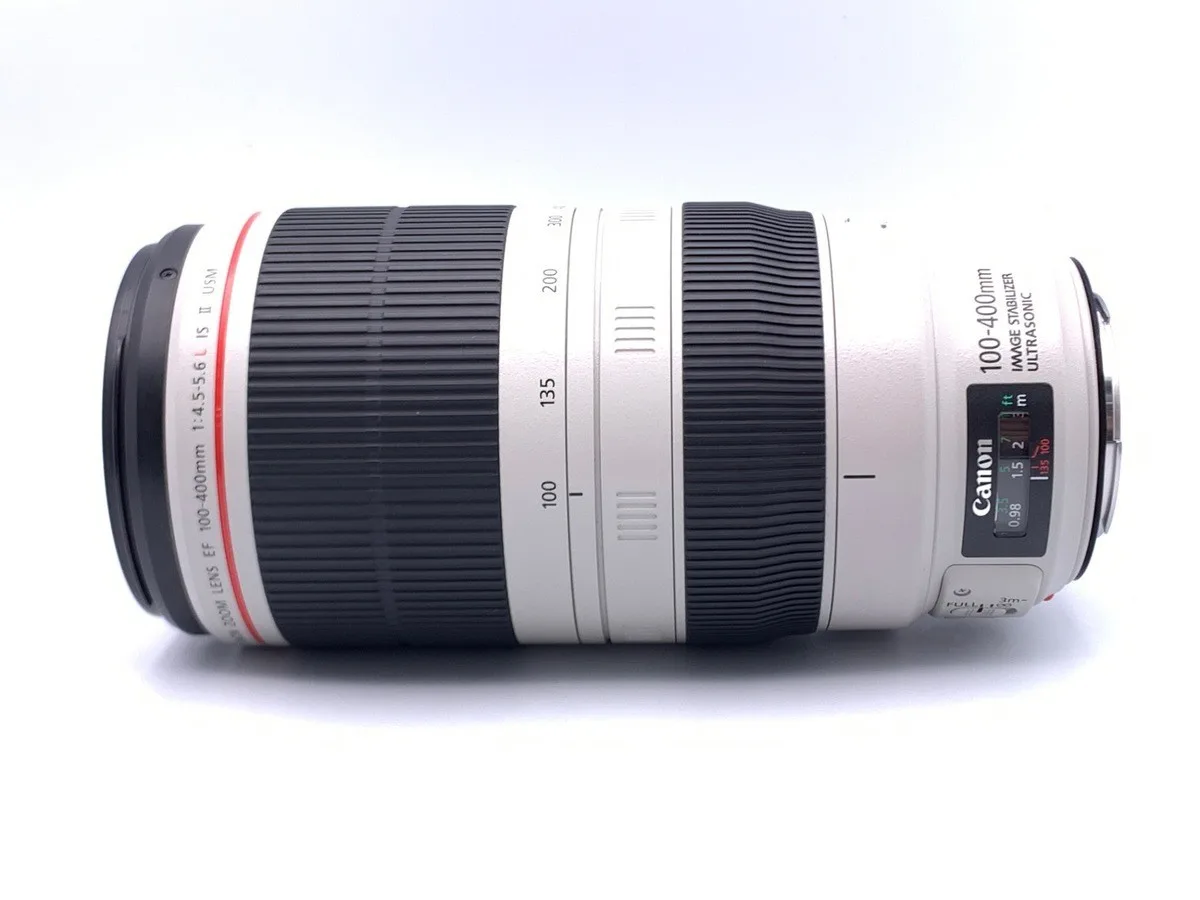

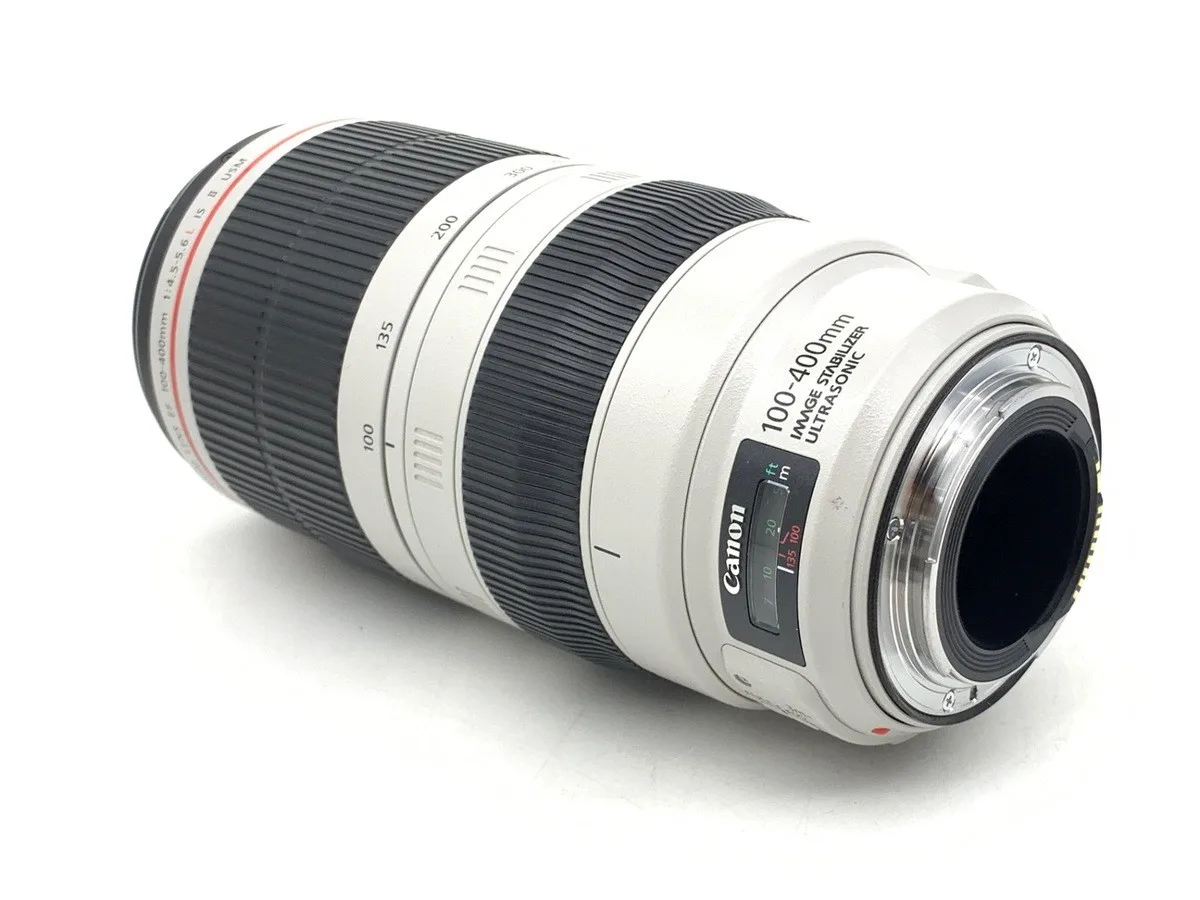

Canon EF 100-400mm F/4.5-5.6L IS II USM

Specifications01

Focal length100-400mm
Max aperturef/4.5
TypeTelephoto · Zoom
Release year2014
Weight1570 g
Filter size77 mm
Physical length193 mm
Min focus distance0.98 m
Max magnification0.3096
Aperture blades9
Optical elements21
Groups16
Min aperturef/5.6
AutofocusYes
StabilizationYes
Aperture controlNone The aperture is controlled from the camera

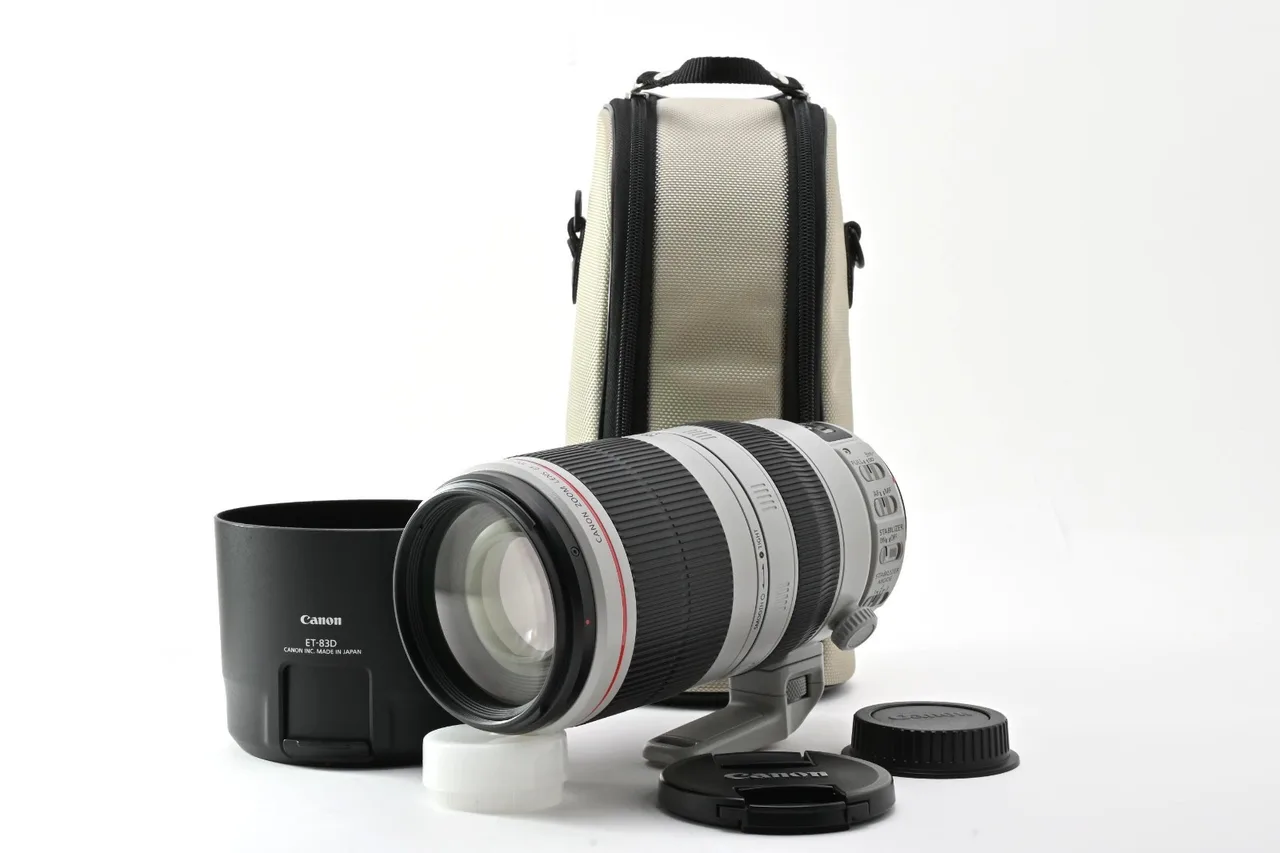

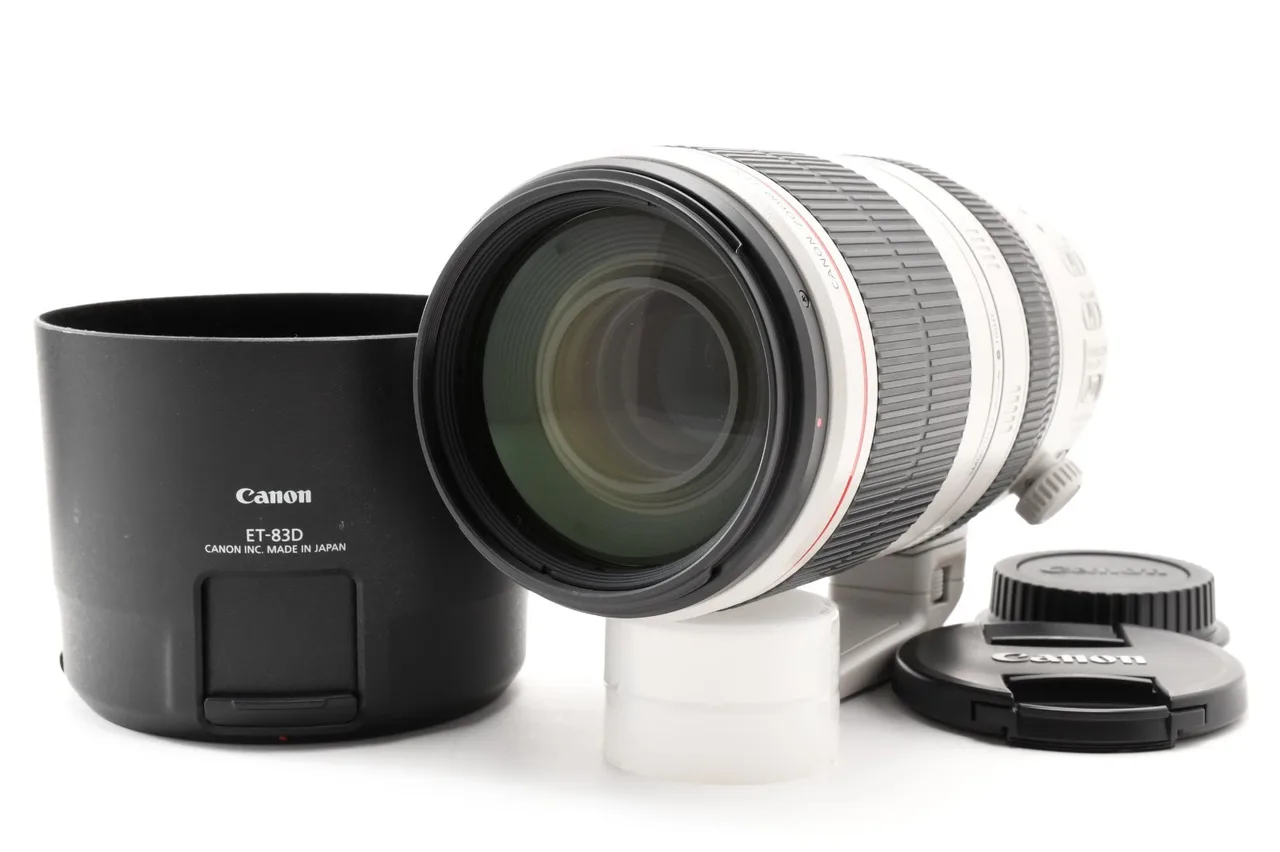

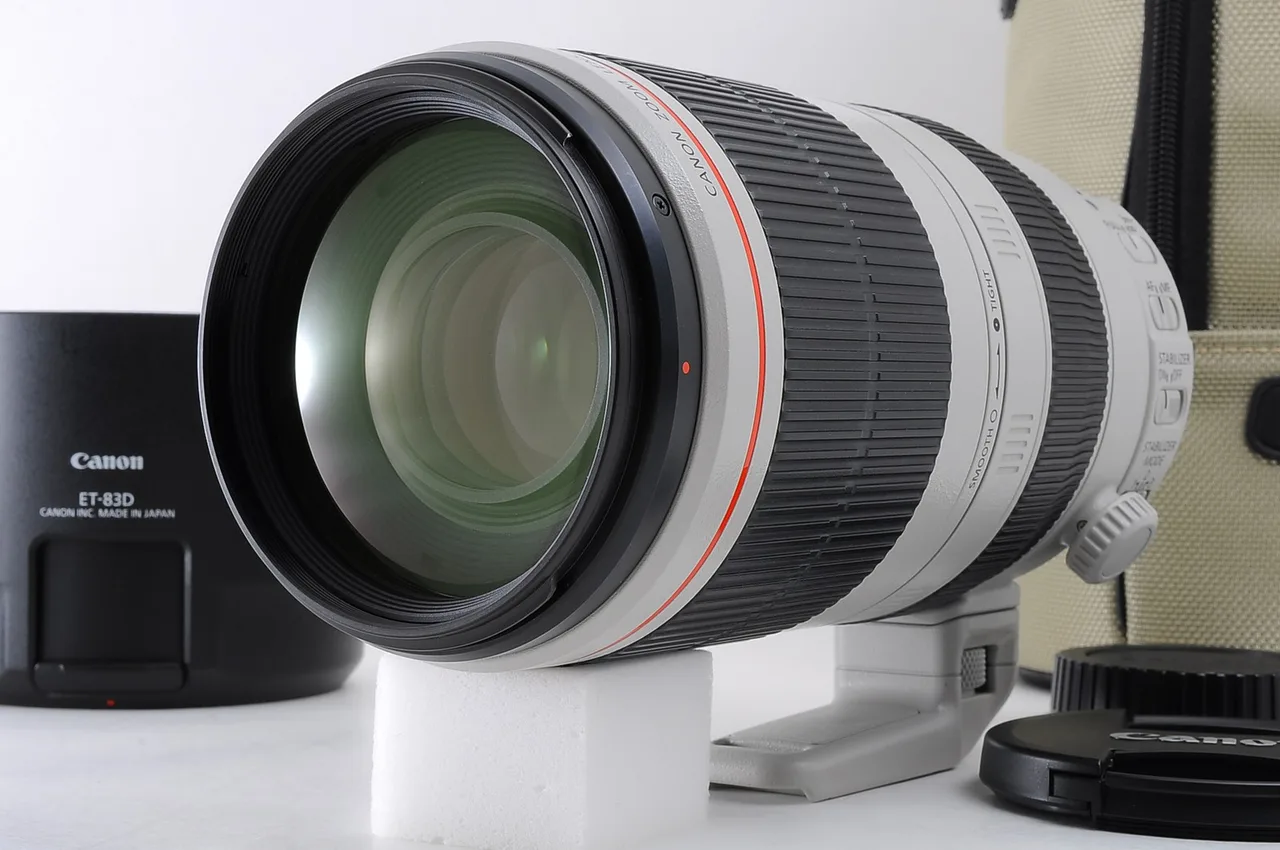

Lens hoodET-83D - Bayonet-type round With filter access window
TeleconvertersCanon Extender EF 1.4X II→ 140-560mm F/6.3-7.8 Canon Extender EF 1.4X III→ 140-560mm F/6.3-7.8 Canon Extender EF 2X II→ 200-800mm F/9-11.2 Canon Extender EF 2X III→ 200-800mm F/9-11.2
EraDigital era
Production statusIn production

Additional Info02

Lens TypeTelephoto zoom lens

Summary02

Canon EF 100-400mm F/4.5-5.6L IS II USM zoom lens for Canon EF mounts, covering telephoto to super-telephoto focal lengths with image stabilization for outdoor sports, wildlife, and travel. Maximum aperture ranges from f/4.5 to f/5.6.

AI-assisted summary — verify against linked sources

Specifications from thelensdb

Where can this lens be adapted?

The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work

  • Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
  • Sony EAdapter · 26 mm

    The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.

  • Canon RFAdapter · 24 mm
  • Nikon ZAdapter · 28 mm
  • Fujifilm XAdapter · 26.3 mm
  • L-MountAdapter · 24 mm

    The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.

  • Micro Four ThirdsAdapter · 24.75 mm
  • Fujifilm G (GFX)Adapter · 17.3 mm

    Covers full-frame: it can vignette on a medium format sensor.

  • Canon EF-MAdapter · 26 mm
  • Canon EFNative

No plain adapter reaches infinity focus on: Nikon F.

Sources03

thelensdb.comVisit ↗
dpreview.comVisit ↗
lens-db.comVisit ↗
lesdeuxpiedsdehors.comVisit ↗

Other Mounts03

No alternate mounts are indexed for this family yet.
