N°93072 · Family detail
CanonWide·CANON EF mount·2004

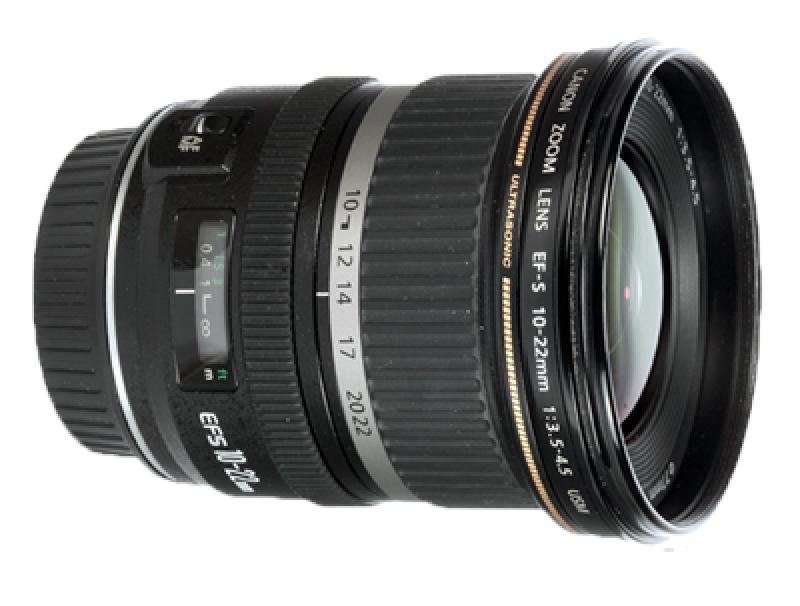

Canon EF-S 10-22mm F/3.5-4.5 USM
Specifications01
MountCANON EF
Focal length10-22mm
Max aperturef/3.5
TypeWide · Zoom
Release year2004
Weight385 g
Filter size77 mm
Min focus distance0.24 m
Max magnification0.1701
Aperture blades6
Optical elements13
Groups10
Min aperturef/4.5
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodEW-83E - Bayonet-type petal-shaped
TeleconvertersNot available
Sensor coverageAPS-C
EraDigital era
Additional Info02
Lens TypeWide-angle zoom lens
Summary02
Canon EF-S 10-22mm zoom lens with a variable maximum aperture of f/3.5-4.5, designed for APS-C wide-angle shooting such as landscapes and interiors. Uses USM for autofocus.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
