N°93060 · Family detail
SigmaWide·CANON EF mount·2005

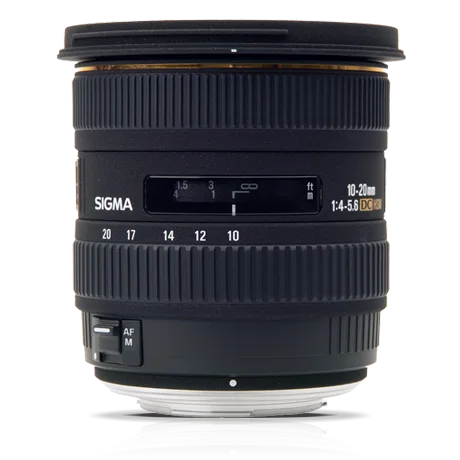

Sigma 10-20mm F/4-5.6 EX DC [HSM]
Specifications01
MountCANON EF
Focal length10-20mm
Max aperturef/4
TypeWide · Zoom
Release year2005
Weight465 g
Filter size77 mm
Min focus distance0.24 m
Max magnification0.1493
Aperture blades6
Optical elements14
Groups10
Min aperturef/5.6
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera

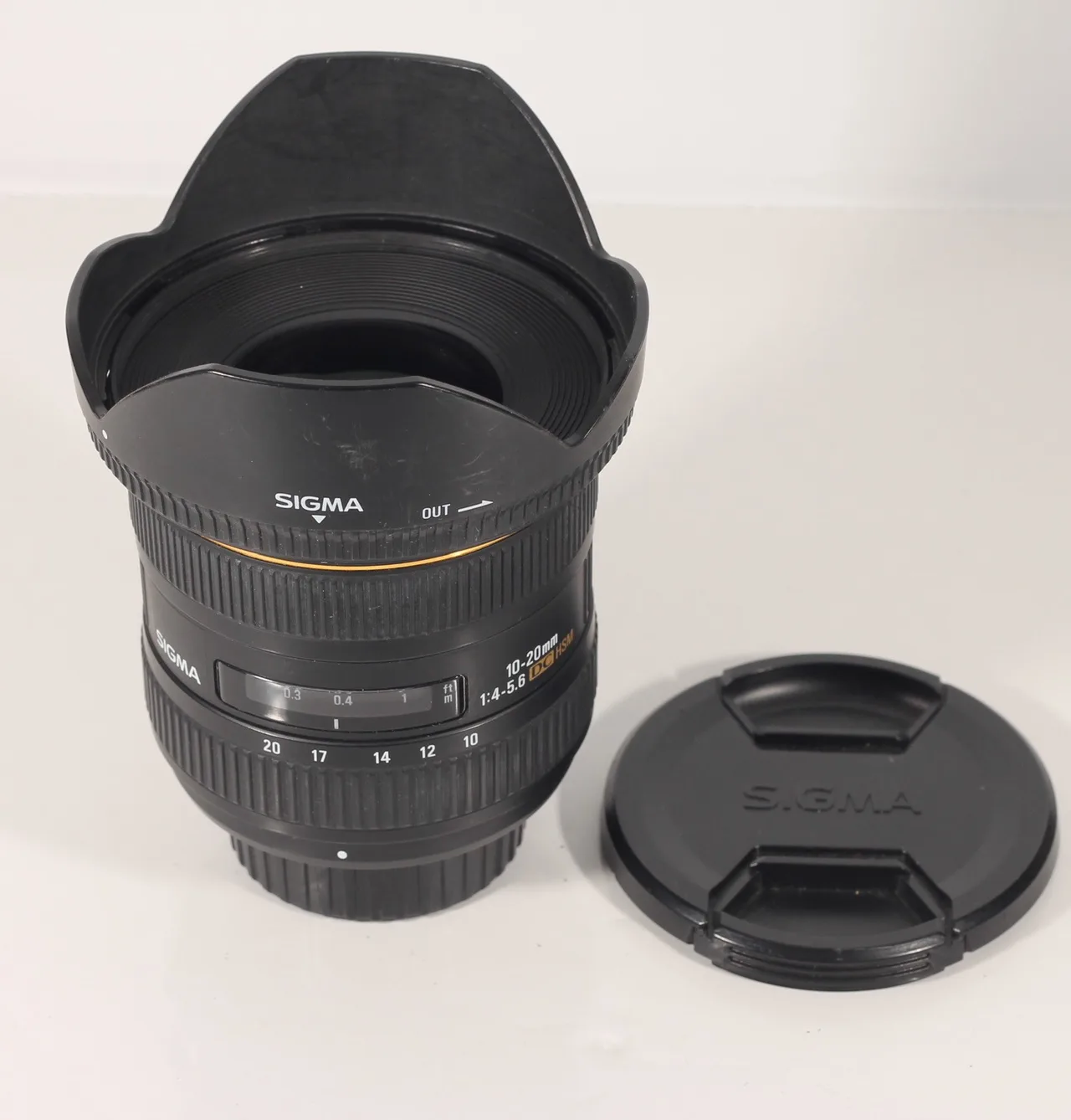

Lens hoodLH825-04 - Bayonet-type petal-shaped
TeleconvertersNot compatible
EraDigital era
Production statusDiscontinued
Additional Info02
Lens TypeWide-angle zoom lens
Summary02
Sigma DC 10-20mm zoom lens for Canon EF APS-C cameras, with variable maximum aperture f/4–5.6. Intended for wide-angle needs like landscapes and interiors.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
![Sigma 10-20mm F/4-5.6 EX DC [HSM]](https://img.lens-database.com/lenses/variants/v1/cd60ee83d113943c8783a431c0e5fcee9c132deb65fdf3ddf0a104936cf3c900/2575d9af0191cd4b96af91d19ac2212ab5c43991d9d16d2cb489b4b1e7603b92/460x460/1280.webp)
Other Mounts03
This lens family is also indexed in 6 other mounts.
