N°89908 · Family detail
TomiokaPortrait·M42 mount·1970

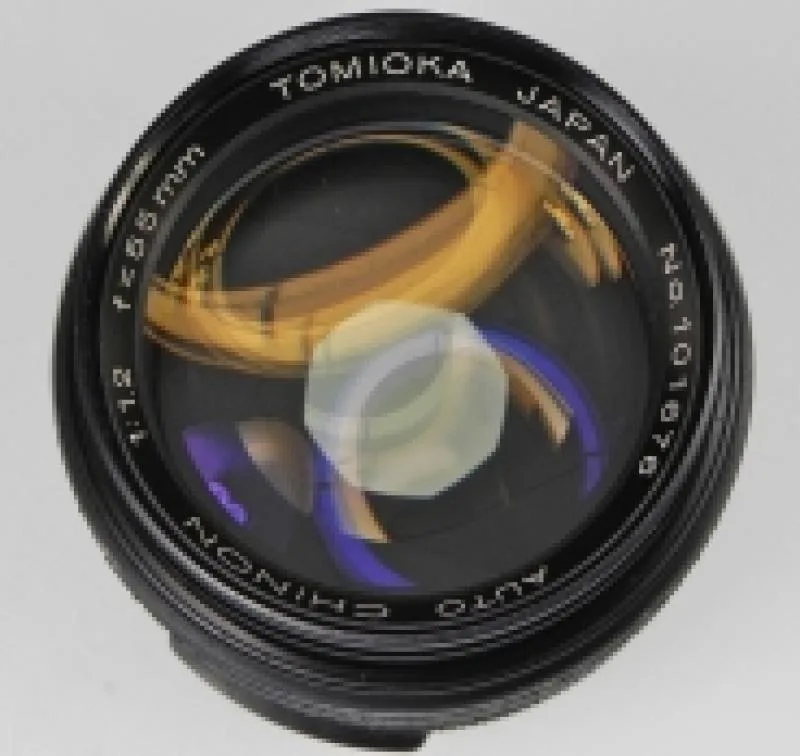

Tomioka Auto Chinon 55mm F/1.2
Specifications01
MountM42
Focal length55mm
Max aperturef/1.2
TypePortrait · Prime
Release year1970
Weight339 g
Filter size55 mm
Min focus distance0.5 m
Aperture blades8
Optical elements7
Groups6
AutofocusNo
StabilizationNo
Aperture controlAperture ring (Manual settings only)
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeStandard prime lens
Summary02
55mm prime lens for M42 screw mount, with a maximum aperture of f/1.2 for low-light and shallow depth-of-field use. Suitable for portraits and general photography.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The M42 screw mount has a flange distance of 45.46 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Many M42 lenses close the aperture only when a pin at the rear is pressed. Use an adapter that presses the pin, or set the A/M switch to M.
- Sony EAdapter · 27.46 mm
- Canon RFAdapter · 25.46 mm
- Nikon ZAdapter · 29.46 mm
- Fujifilm XAdapter · 27.76 mm
- L-MountAdapter · 25.46 mm
- Micro Four ThirdsAdapter · 26.21 mm
- Fujifilm G (GFX)Adapter · 18.76 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 27.46 mm
- Canon EFAdapter · 1.46 mm
A rear element that sticks out can hit the camera mirror.
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
