N°89907 · Family detail
CanonPortrait·CANON FD mount·1975

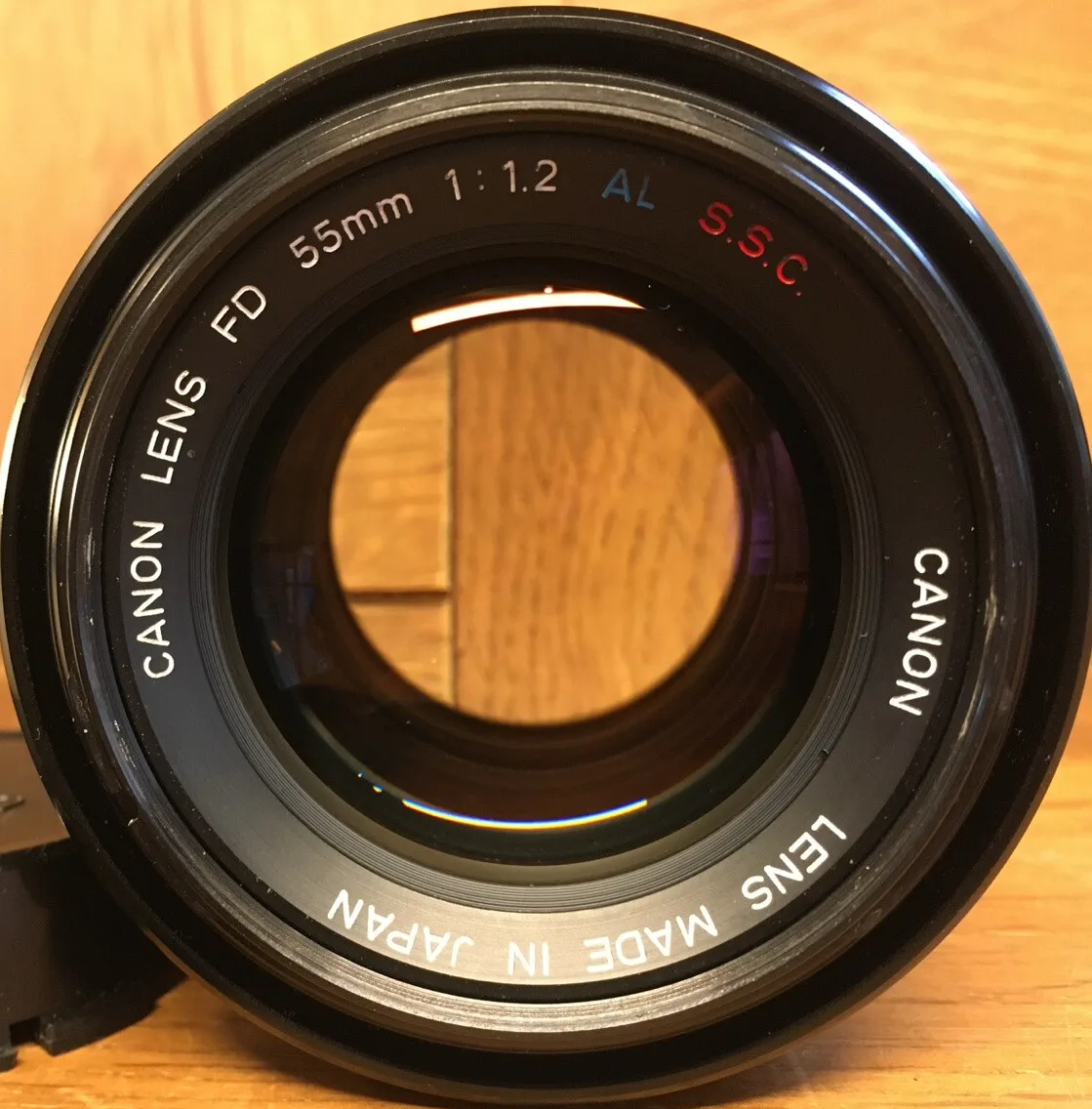

Canon FD 55mm F/1.2 S.S.C. ASPH
Specifications01
MountCANON FD
Focal length55mm
Max aperturef/1.2
TypePortrait · Prime
Release year1975
Weight575 g
Filter size58 mm
Min focus distance0.6 m
Max magnification0.1099
Aperture blades8
Optical elements8
Groups6
AutofocusNo
StabilizationNo
Aperture controlAperture ring (Manual settings + Auto Exposure setting)
Lens hoodBS-58 - Bayonet-type round
TeleconvertersCanon Extender FD 2X-B→ 110mm F/2.4
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeStandard prime lens
Summary02
Canon FD 55mm prime lens for the Canon FD mount, with a maximum aperture of f/1.2. Designed for general use with a bright aperture suitable for low-light and shallow depth of field effects.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon FD mount has a flange distance of 42 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- FD lenses stay at full aperture until the camera moves a lever on the lens. Use an FD adapter with a ring that moves this lever.
- Sony EAdapter · 24 mm
- Canon RFAdapter · 22 mm
- Nikon ZAdapter · 26 mm
- Fujifilm XAdapter · 24.3 mm
- L-MountAdapter · 22 mm
- Micro Four ThirdsAdapter · 22.75 mm
- Fujifilm G (GFX)Adapter · 15.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 24 mm
No plain adapter reaches infinity focus on: Canon EF, Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
