N°8668033 · Family detail
ChinonWide·M42 mount

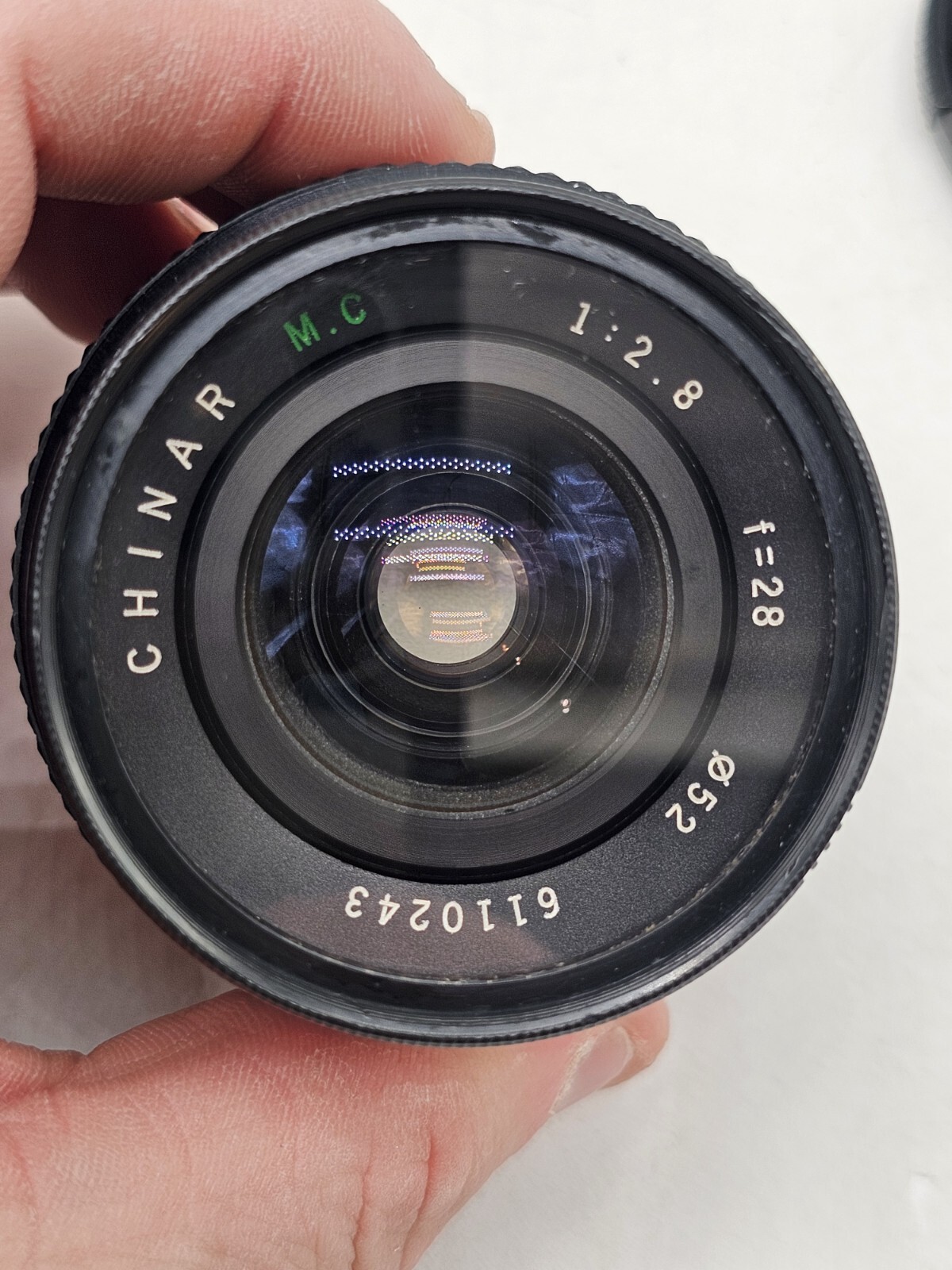

Chinar 28mm F/2.8 [M.C]
Specifications01
MountM42
Focal length28mm
Max aperturef/2.8
TypeWide · Prime
Weight290 g
Filter size52 mm
Min focus distance0.45 m
Aperture blades6
Optical elements8
Groups6
AutofocusNo
StabilizationNo
Aperture controlAperture ring (Manual settings only)
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeWide-angle prime lens
Summary02
28mm f/2.8 manual-focus M42 wide-angle prime lens for general photography and landscape. Suitable for low-to-moderate light due to the f/2.8 maximum aperture.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The M42 screw mount has a flange distance of 45.46 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Many M42 lenses close the aperture only when a pin at the rear is pressed. Use an adapter that presses the pin, or set the A/M switch to M.
- Sony EAdapter · 27.46 mm
- Canon RFAdapter · 25.46 mm
- Nikon ZAdapter · 29.46 mm
- Fujifilm XAdapter · 27.76 mm
- L-MountAdapter · 25.46 mm
- Micro Four ThirdsAdapter · 26.21 mm
- Fujifilm G (GFX)Adapter · 18.76 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 27.46 mm
- Canon EFAdapter · 1.46 mm
A rear element that sticks out can hit the camera mirror.
No plain adapter reaches infinity focus on: Nikon F.
Sources03
thelensdb.comVisit ↗
![Chinar 28mm F/2.8 [M.C]](https://img.lens-database.com/lenses/variants/v1/12342543ba0fb97ff670539302491cd23d5d99d9d5a0c8d74c241df6f6443bd4/b40fb6e12481f2a8a3657350268382ac413a73fc931499242d50fc41e6cf3402/1200x1600/1280.webp)
Other Mounts03
No alternate mounts are indexed for this family yet.
