N°8660516 · Family detail
TokinaWide·CANON EF mount·2007

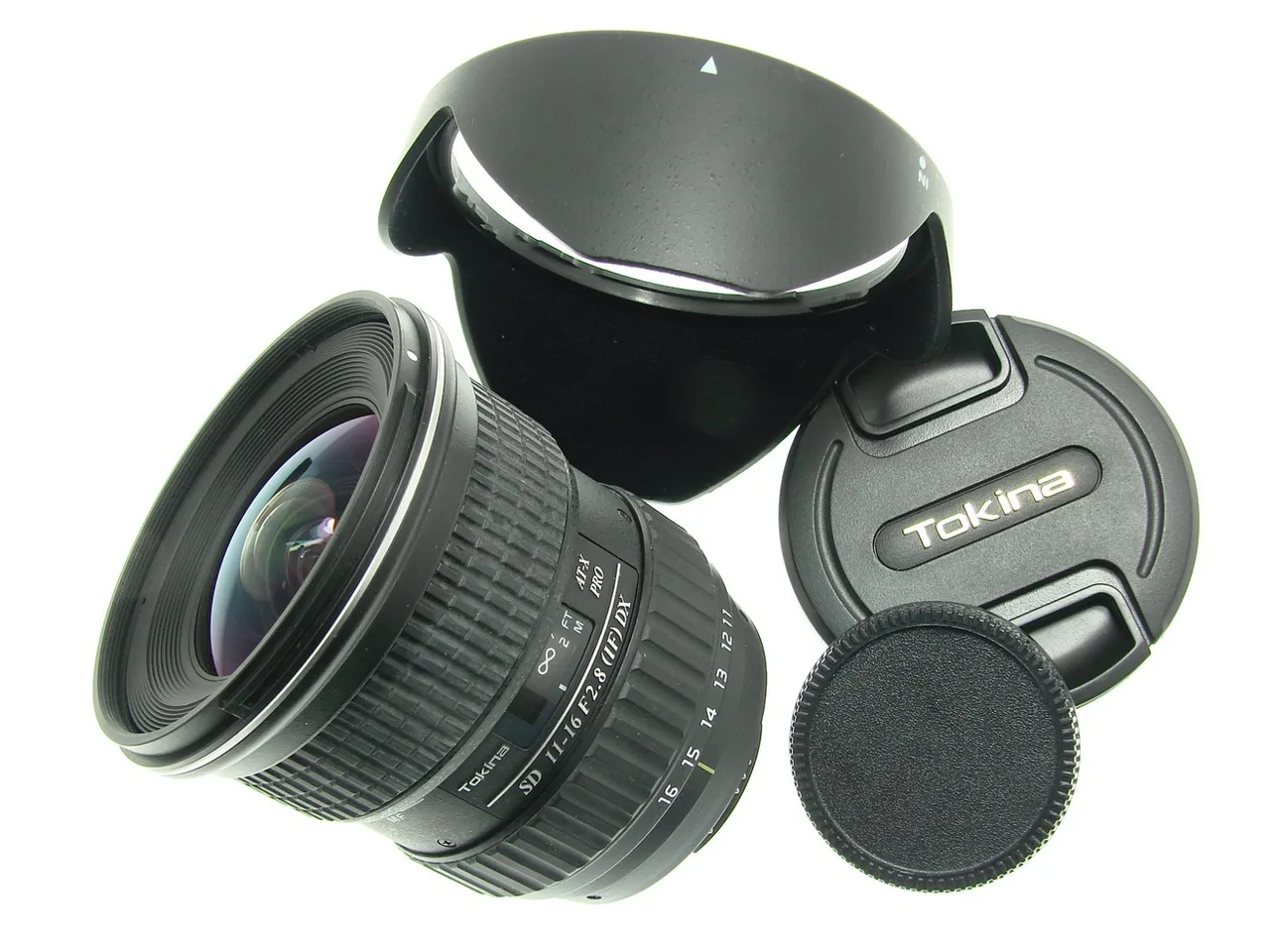

Tokina AT-X Pro AF SD 11-16mm F/2.8 [IF] DX
Specifications01
MountCANON EF
Focal length11-16mm
Max aperturef/2.8
TypeWide · Zoom
Release year2007
Weight560 g
Filter size77 mm
Min focus distance0.3 m
Max magnification0.0862
Aperture blades9
Optical elements13
Groups11
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodBH-777 - Bayonet-type petal-shaped
BH-77A - Bayonet-type petal-shaped
EraDigital era
Production statusDiscontinued
Additional Info02
Lens TypeWide-angle zoom lens
Summary02
Tokina AT-X Pro AF SD 11-16mm f/2.8 [IF] is an EF-mount ultra-wide zoom for APS-C. It uses a constant f/2.8 aperture for low-light wide-angle photos and video.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
![Tokina AT-X Pro AF SD 11-16mm F/2.8 [IF] DX](https://img.lens-database.com/lenses/variants/v1/cd06e6df1d680bad72a926beafac8af67637d27321ab086e49715183566a2070/0e39398a84ea6cc2c5171e6ed10bbc2516723f08a87e9625e2cd9c212a968985/1600x1200/1280.webp)
Other Mounts03
This lens family is also indexed in 2 other mounts.
