N°435896 · Family detail
GL OpticsMirror·ARRI LPL mount

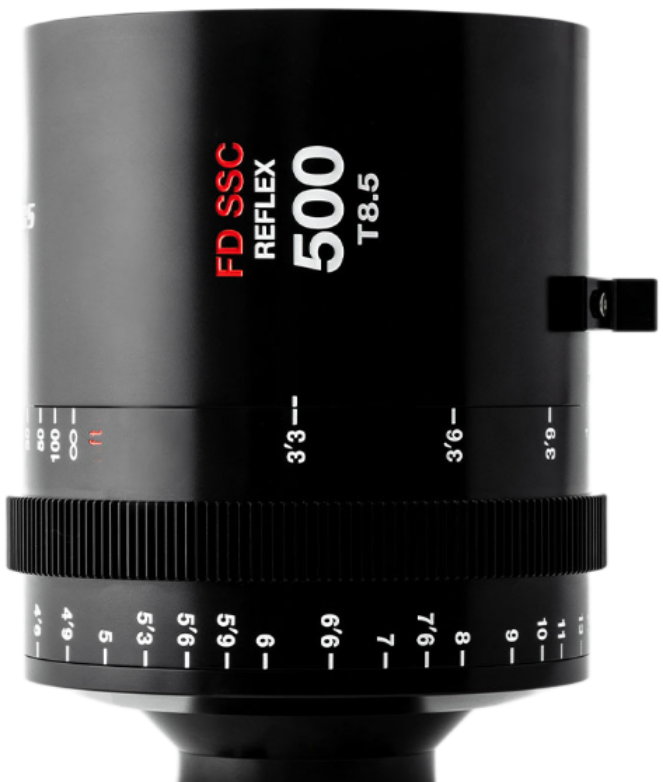

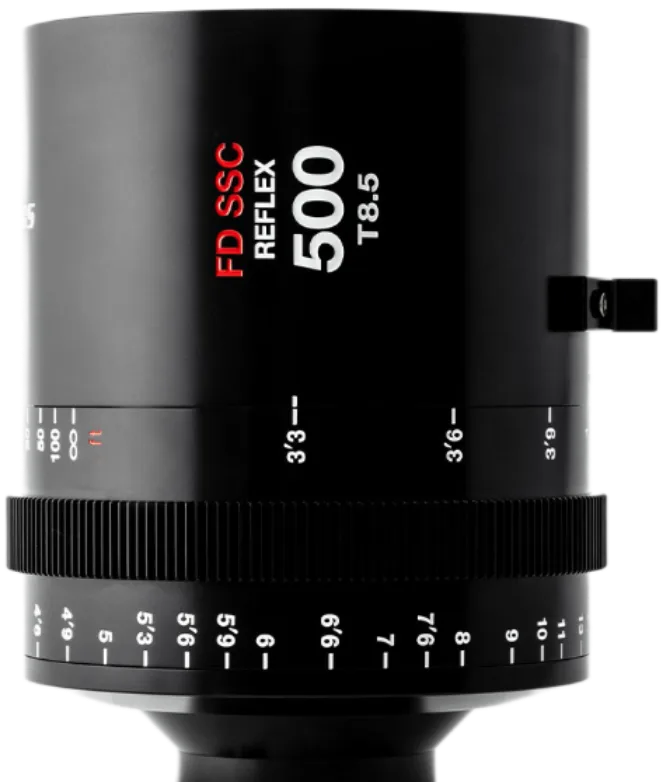

GL Optics Canon Reflex 500mm F/8

Specifications01

Focal length500mm
Max aperturef/8
TypeMirror · Telephoto · Prime
Weight3100 g
Physical length187.5 mm
Min focus distance0.991 m

Additional Info02

ModelCanon Reflex
SeriesPrime
Iris Driven/a
Zoom Driven/a
Focus Drivemanual
Body Materialaluminum
Data Protocolnone
Front Diameter Mm136
Focus Rotation Deg330

Summary02

GL Optics Canon Reflex 500mm f/8 is a mirror (reflex) telephoto lens intended for long-distance subjects in low-light conditions due to its f/8 maximum aperture. Designed for the ARRI LPL mount.

AI-assisted summary — verify against linked sources

Specifications from cinelenswiki

Where can this lens be adapted?

The ARRI LPL mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work

  • Sony EAdapter · 26 mm

    The camera mount (46.1 mm) is narrower than the lens mount (62 mm). A large rear element can darken the corners.

  • Canon RFAdapter · 24 mm

    The camera mount (54 mm) is narrower than the lens mount (62 mm). A large rear element can darken the corners.

  • Nikon ZAdapter · 28 mm

    The camera mount (55 mm) is narrower than the lens mount (62 mm). A large rear element can darken the corners.

  • Fujifilm XAdapter · 26.3 mm
  • L-MountAdapter · 24 mm

    The camera mount (51.6 mm) is narrower than the lens mount (62 mm). A large rear element can darken the corners.

  • Micro Four ThirdsAdapter · 24.75 mm
  • Fujifilm G (GFX)Adapter · 17.3 mm

    Covers full-frame: it can vignette on a medium format sensor.

  • Canon EF-MAdapter · 26 mm

No plain adapter reaches infinity focus on: Canon EF, Nikon F.

Sources03

cinelenswiki.comVisit ↗

Other Mounts03

No alternate mounts are indexed for this family yet.
