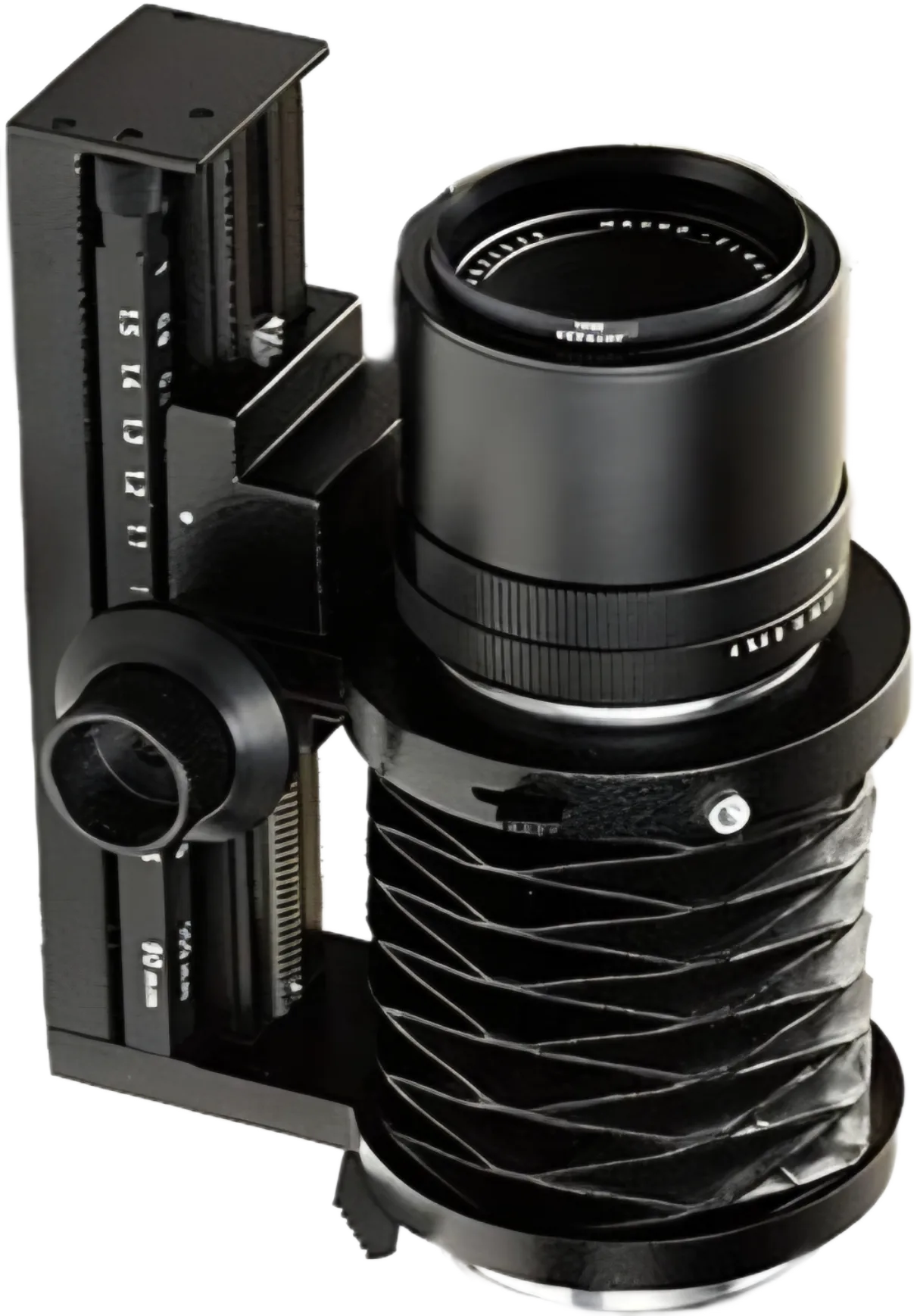

Leica Macro-Elmar-R Bellows 100mm F/4

Specifications01

MountLEICA R

Focal length100mm

Max aperturef/4

TypeMacro · Telephoto · Prime

Release year1978

Weight670 g

Physical length120 mm

Min focus distance1.097 m

Optical elements4

Groups3

Min aperturef/22

Additional Info02

ModelMacro-Elmar (bellows)

SeriesR

Squeezenone

Iris DriveManual

Zoom Driven/a

Focus DriveManual

Iris Blades8

Release Date1978-1995

Summary02

Leica R Macro-Elmar bellows lens at 100mm focal length with maximum aperture f/4, intended for close-up work using a bellows extension system.

AI-assisted summary — verify against linked sources

Specifications from cinelenswiki

Where can this lens be adapted?

The Leica R mount has a flange distance of 47 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work

Sony EAdapter · 29 mm
Canon RFAdapter · 27 mm
Nikon ZAdapter · 31 mm
Fujifilm XAdapter · 29.3 mm
L-MountAdapter · 27 mm
Micro Four ThirdsAdapter · 27.75 mm
Fujifilm G (GFX)Adapter · 20.3 mm
Covers full-frame: it can vignette on a medium format sensor.
Canon EF-MAdapter · 29 mm
Canon EFAdapter · 3 mm
A rear element that sticks out can hit the camera mirror.

No plain adapter reaches infinity focus on: Nikon F.
