N°196951 · Family detail
LeicaWide·LEICA M mount·1996

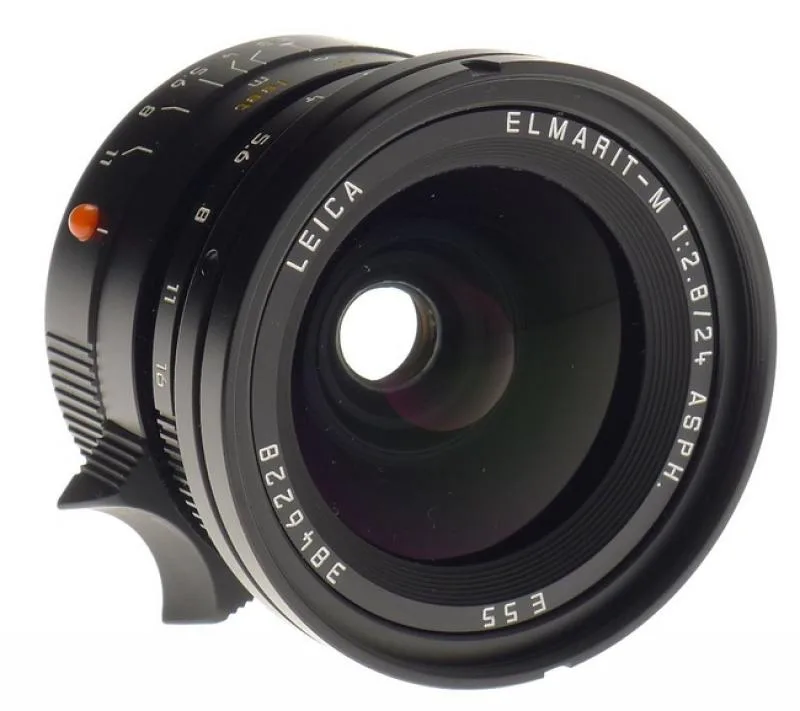

Leica Elmarit-M 24mm F/2.8 ASPH.
Specifications01
MountLEICA M
Focal length24mm
Max aperturef/2.8
TypeWide · Prime
Release year1996
Weight290 g
Filter size55 mm
Physical length45 mm
Min focus distance0.7 m
Max magnification0.0385
Aperture blades8
Optical elements7
Groups5
AutofocusNo
StabilizationNo
Aperture controlAperture ring
Lens hood12464
12592
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeWide-angle prime lens
Summary02
Leica M Elmarit-M 24mm F/2.8 ASPH is a wide-angle prime lens for Leica M-mount rangefinder cameras, intended for general-purpose wide views. It has a maximum aperture of f/2.8.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Leica M mount has a flange distance of 27.8 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Some wide-angle M lenses show colour shifts or soft corners on digital sensors.
- Sony EAdapter · 9.8 mm
- Canon RFAdapter · 7.8 mm
- Nikon ZAdapter · 11.8 mm
- Fujifilm XAdapter · 10.1 mm
- L-MountAdapter · 7.8 mm
- Micro Four ThirdsAdapter · 8.55 mm
- Canon EF-MAdapter · 9.8 mm
No plain adapter reaches infinity focus on: Fujifilm G (GFX), Canon EF, Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
