N°12894762 · Family detail
TK LensesCinema·ARRI PL mount

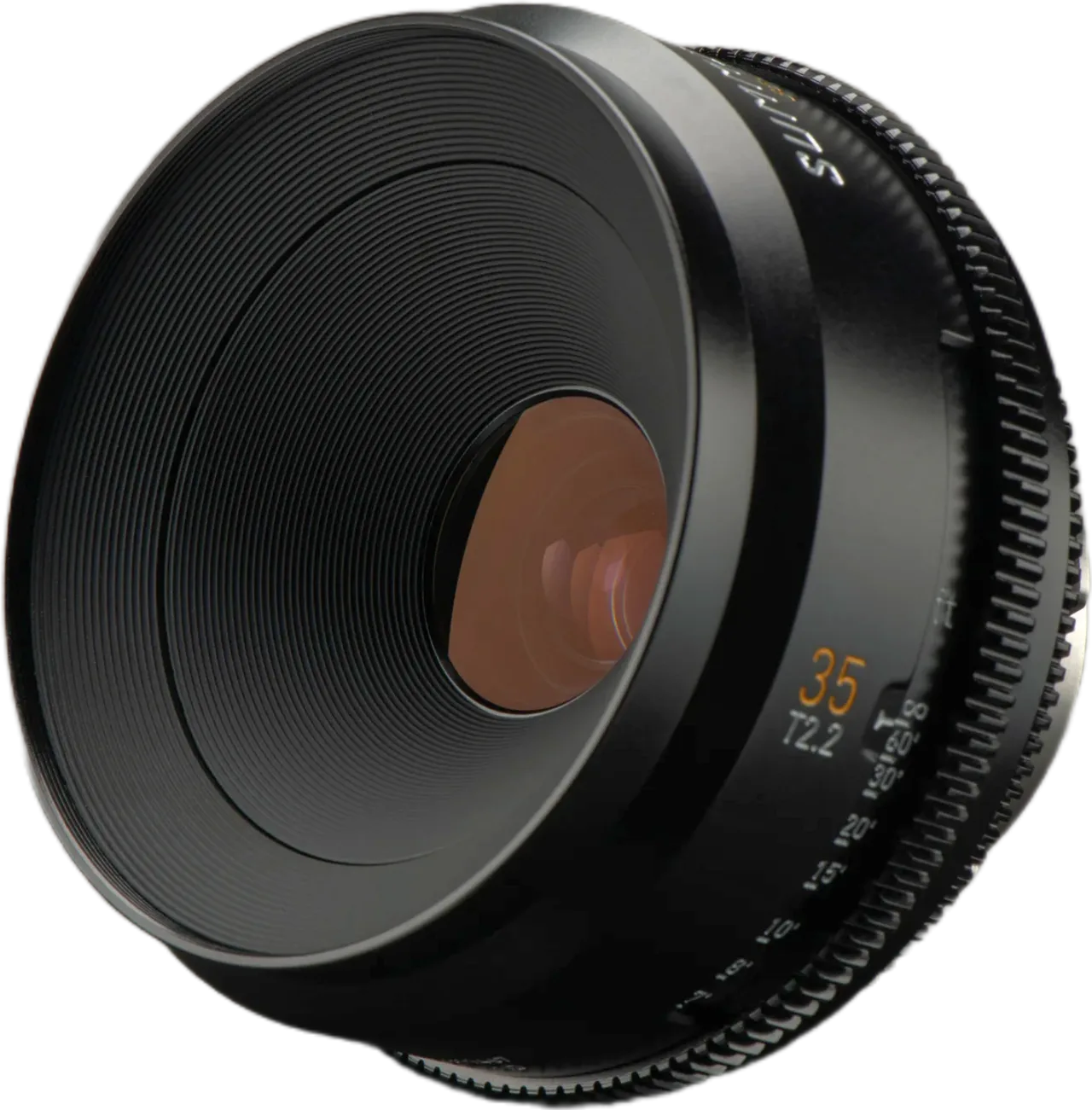

TK Lenses Leica-R 35mm T2.2 F/2

Specifications01

MountARRI PL
Focal length35mm
Max aperturef/2
TypeCinema · Wide · Prime
Filter size92 mm
Min focus distance0.279 m
Min aperturef/22

Additional Info02

SeriesLeica-R
Squeezenone
Iris Drivemanual
Zoom Drivenone
Focus Drivemanual
Iris Blades14
Body Materialaluminum
Data Protocolnone
Body Telescopenone
Focus Zoom Rodnone
Front Diameter Mm95
Focus Rotation Deg270

Summary02

35mm prime cinema lens for ARRI PL mount with a T2.2 maximum aperture, intended for motion-picture use on full-frame/super-35 sensors. Covers a wide-to-standard field of view for general and documentary shooting.

AI-assisted summary — verify against linked sources

Specifications from cinelenswiki

Where can this lens be adapted?

The ARRI PL mount has a flange distance of 52 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work

  • Many PL lenses cover Super 35 only. Check the image circle before you use a full-frame sensor.
  • Sony EAdapter · 34 mm

    The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.

  • Canon RFAdapter · 32 mm
  • Nikon ZAdapter · 36 mm
  • Fujifilm XAdapter · 34.3 mm
  • L-MountAdapter · 32 mm

    The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.

  • Micro Four ThirdsAdapter · 32.75 mm
  • Fujifilm G (GFX)Adapter · 25.3 mm
  • Canon EF-MAdapter · 34 mm
  • Canon EFAdapter · 8 mm

    A rear element that sticks out can hit the camera mirror.

  • Nikon FAdapter · 5.5 mm

    The camera mount (44 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.

    A rear element that sticks out can hit the camera mirror.
