Lens Database/Cooke/N°12881673
N°12881673 · Family detail
CookeCinema·ARRI PL mount

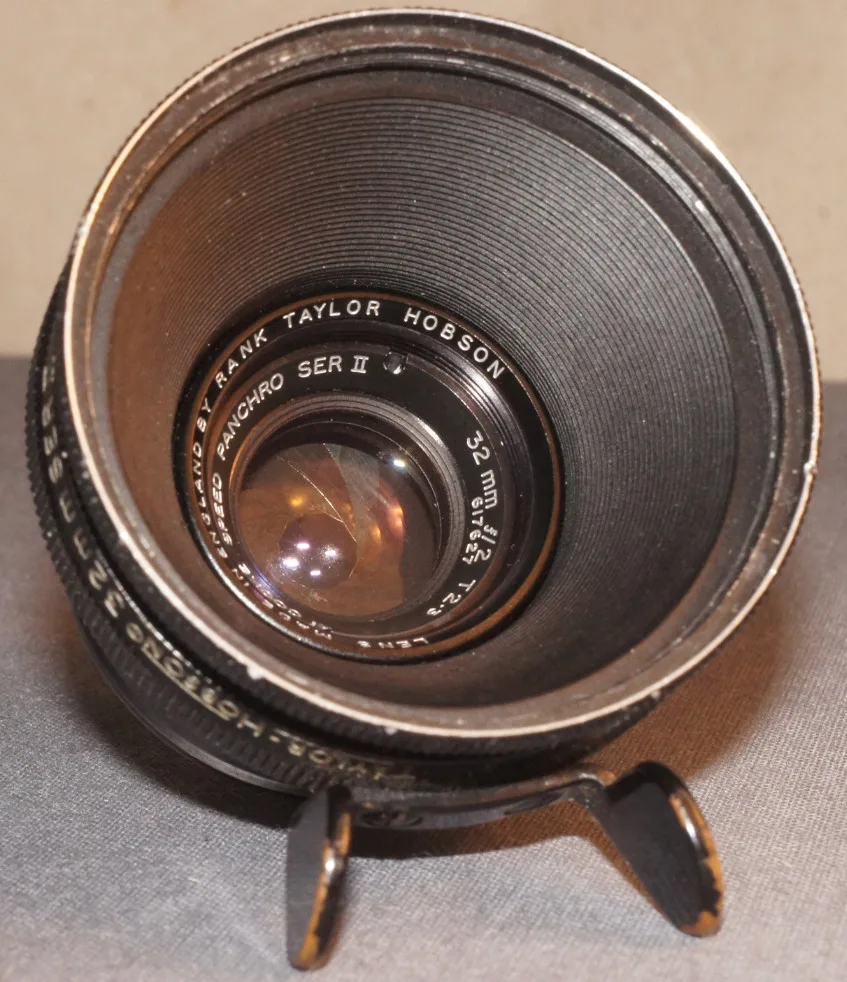

Cooke Speed Panchro Series II 32mm F/2.0 T2.3

Specifications01

MountARRI PL
Focal length32mm
Max aperturef/2
TypeCinema · Wide · Prime
Min focus distance0.305 m
Min aperturef/22

Additional Info02

ModelSeries II
FormatS35
SeriesSpeed Panchro
Squeezenone
Iris DriveManual
Zoom Driven/a
Focus DriveManual
Body MaterialAluminum
Data Protocolnone
Body Telescopenone
Focus Zoom Rodnone
Image Circle Mm33

Summary02

32mm Cooke Speed Panchro Series II cinema prime for ARRI PL cameras, with an aperture of F/2.0 (T2.3). Designed for motion-picture use, typically for wider-angle coverage.

AI-assisted summary — verify against linked sources

Specifications from cinelenswiki

Where can this lens be adapted?

The ARRI PL mount has a flange distance of 52 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work

  • Many PL lenses cover Super 35 only. Check the image circle before you use a full-frame sensor.
  • Sony EAdapter · 34 mm

    The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.

  • Canon RFAdapter · 32 mm
  • Nikon ZAdapter · 36 mm
  • Fujifilm XAdapter · 34.3 mm
  • L-MountAdapter · 32 mm

    The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.

  • Micro Four ThirdsAdapter · 32.75 mm
  • Fujifilm G (GFX)Adapter · 25.3 mm
  • Canon EF-MAdapter · 34 mm
  • Canon EFAdapter · 8 mm

    A rear element that sticks out can hit the camera mirror.

  • Nikon FAdapter · 5.5 mm

    The camera mount (44 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.

    A rear element that sticks out can hit the camera mirror.

Sources03

cinelenswiki.comVisit ↗

Other Mounts03

This lens family is also indexed in 1 other mount.
