N°110508 · Family detail
CanonTelephoto·CANON EF mount·2011

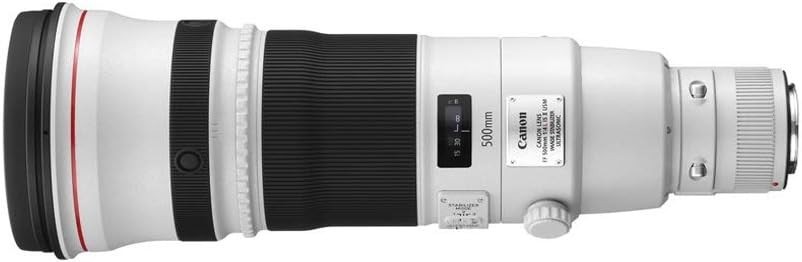

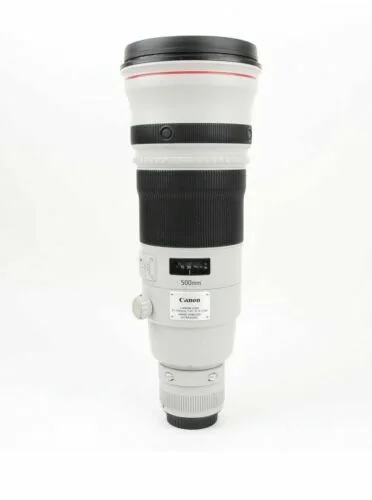

Canon EF 500mm F/4L IS II USM
Specifications01
MountCANON EF
Focal length500mm
Max aperturef/4
TypeTelephoto · Prime
Release year2011
Weight3190 g
Min focus distance3.7 m
Max magnification0.1499
Aperture blades9
Optical elements16
Groups12
AutofocusYes
StabilizationYes
Aperture controlNone
The aperture is controlled from the camera
Lens hoodET-138 - Clamp-on round
TeleconvertersCanon Extender EF 1.4X II→ 700mm F/5.6
Canon Extender EF 1.4X III→ 700mm F/5.6
Canon Extender EF 2X II→ 1000mm F/8
Canon Extender EF 2X III→ 1000mm F/8
EraDigital era
Production statusDiscontinued
Additional Info02
Lens TypeSuper telephoto prime lens
Summary02
Canon EF 500mm f/4L IS II USM is a fixed (prime) telephoto lens for Canon EF-mount cameras, intended for sports and wildlife use. It has a maximum aperture of f/4 and includes optical image stabilization.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
