Lens Database/Nikon/N°109957
N°109957 · Family detail
NikonZoom·NIKON F mount·2013

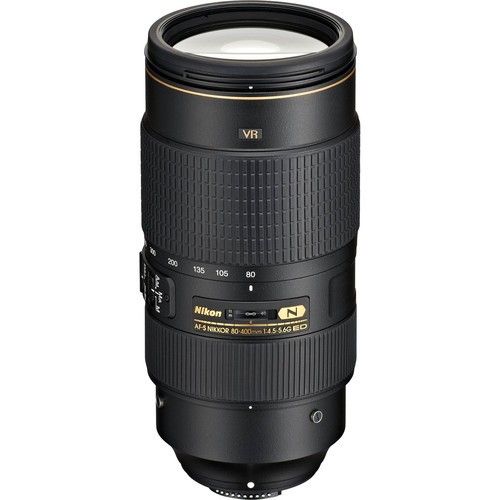

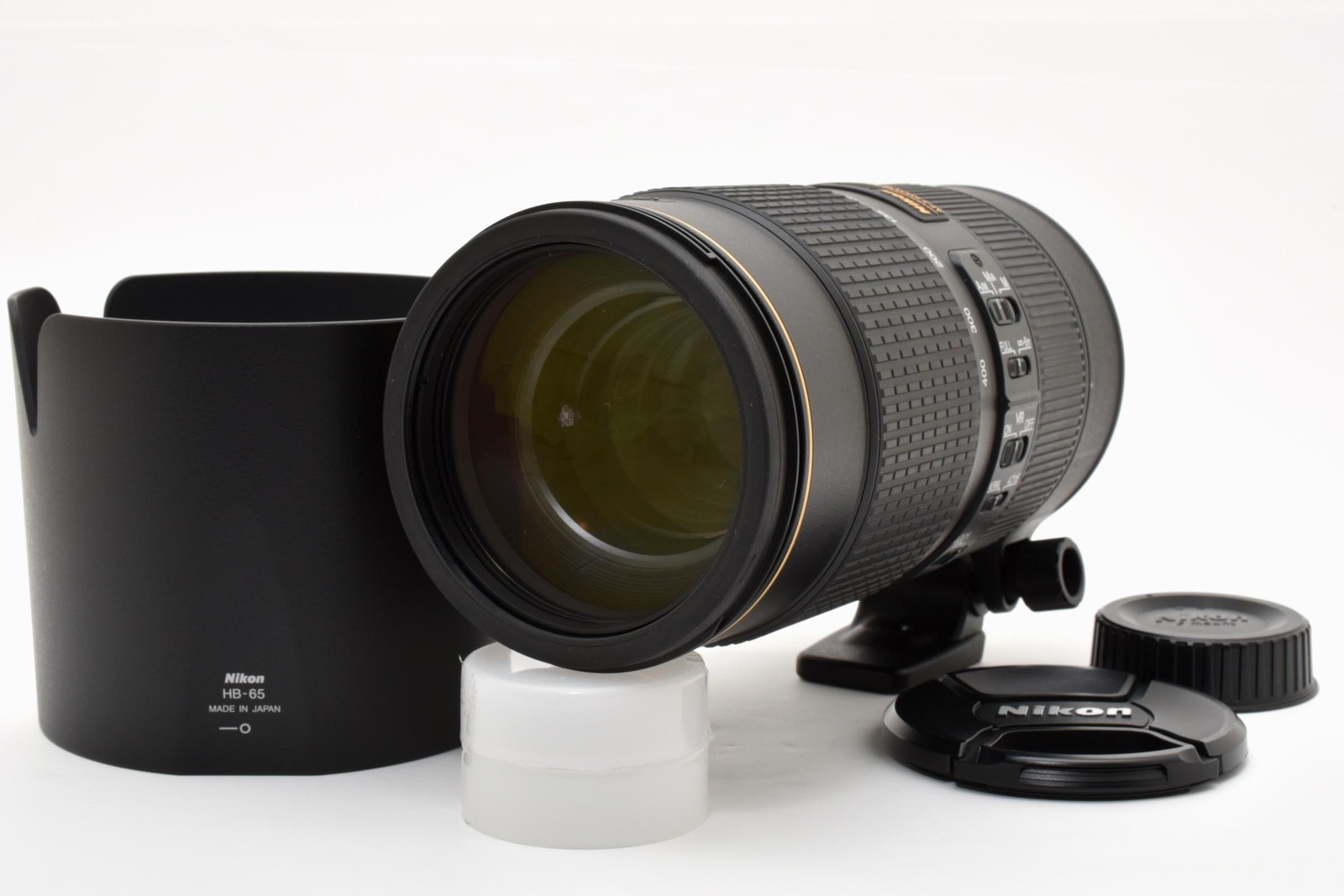

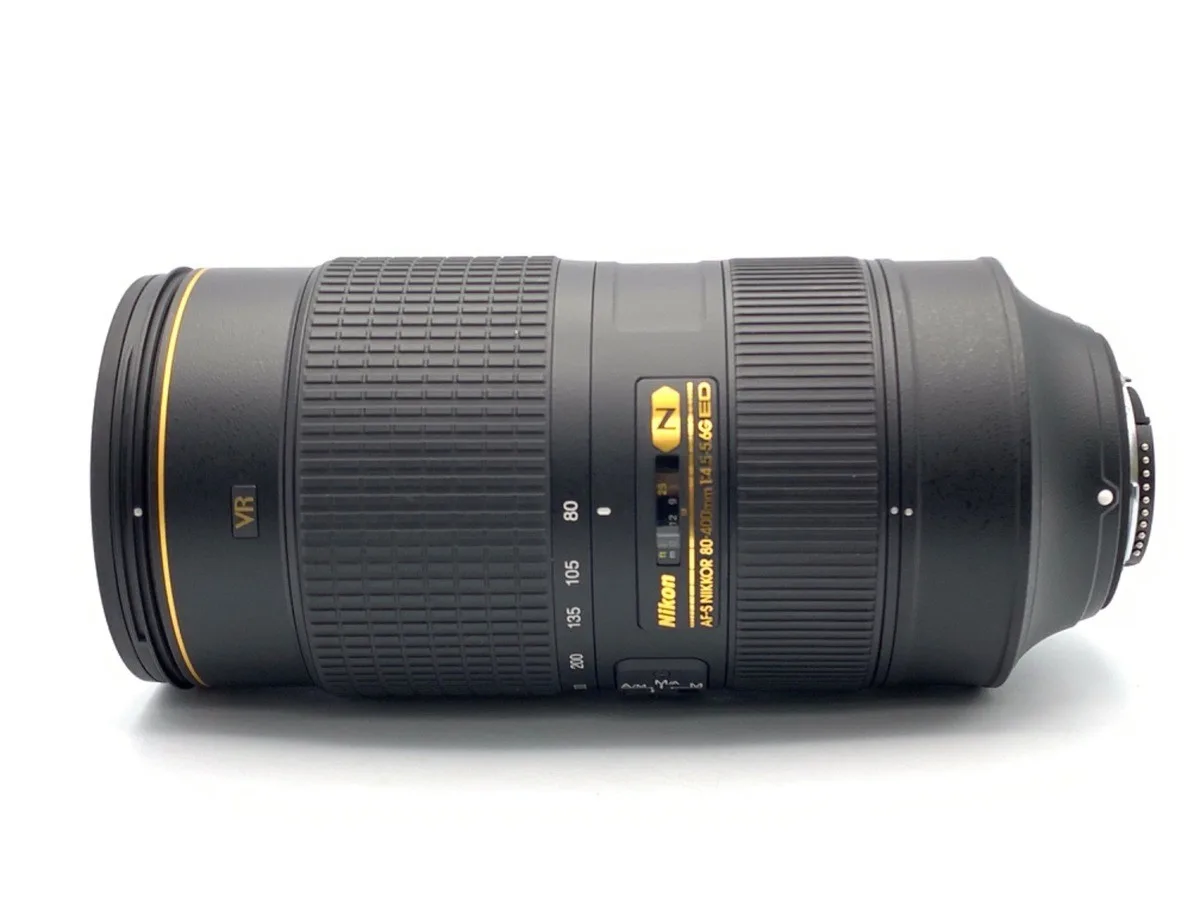

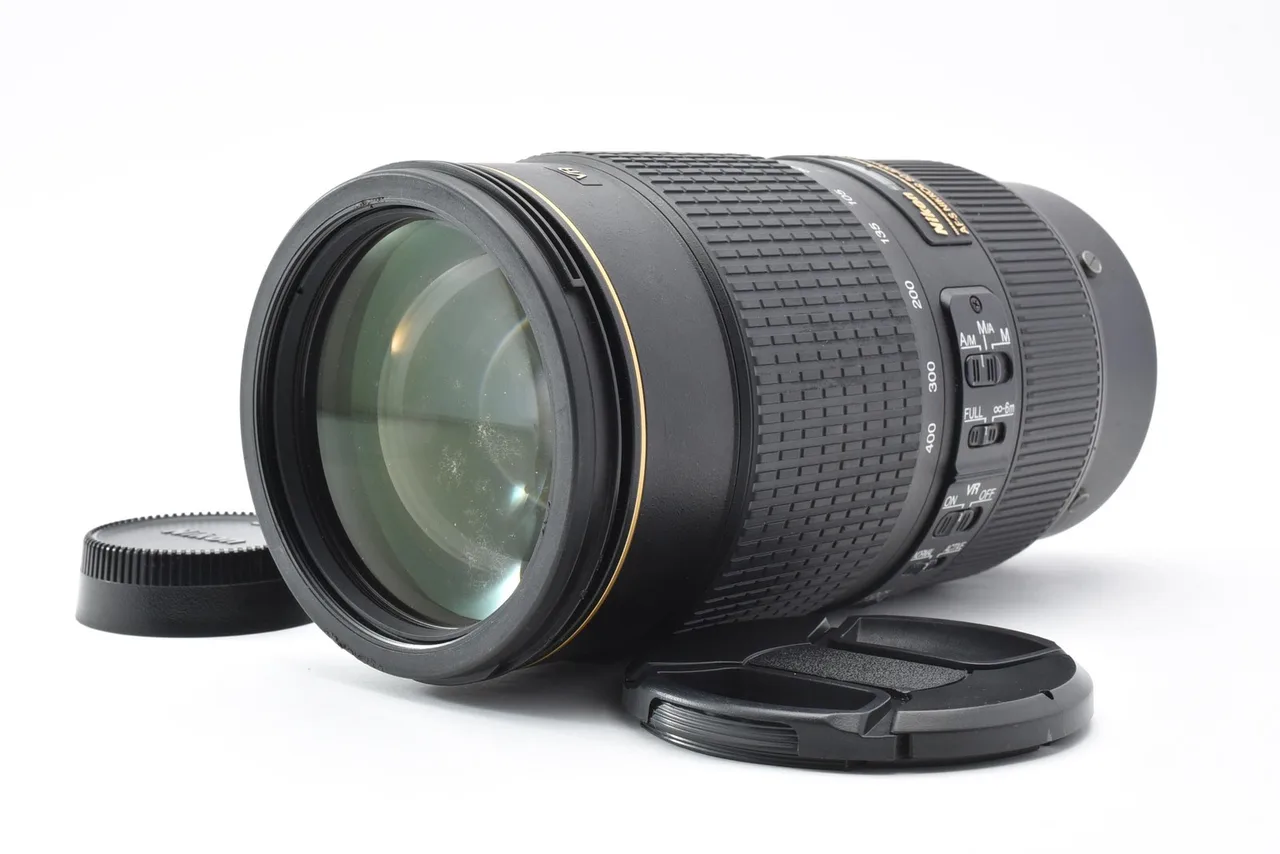

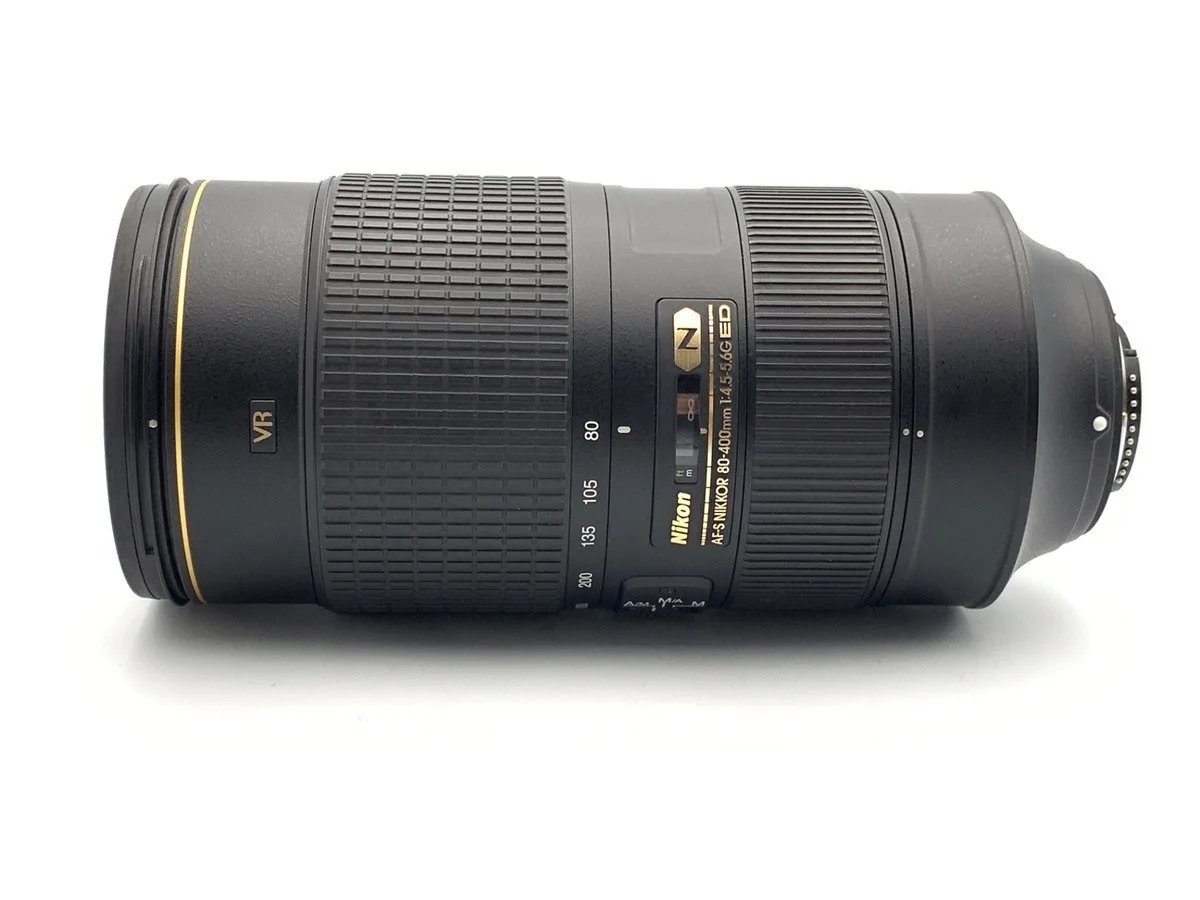

Nikon AF-S Nikkor 80-400mm F/4.5-5.6G ED VR

Specifications01

MountNIKON F
Focal length80-400mm
Max aperturef/4.5
TypeZoom
Release year2013
Weight1570 g
Filter size77 mm
Physical length203 mm
Min focus distance1.75 m
Max magnification0.1754
Aperture blades9
Optical elements20
Groups12
Min aperturef/5.6
AutofocusYes
StabilizationYes
Aperture controlNone The aperture is controlled from the camera

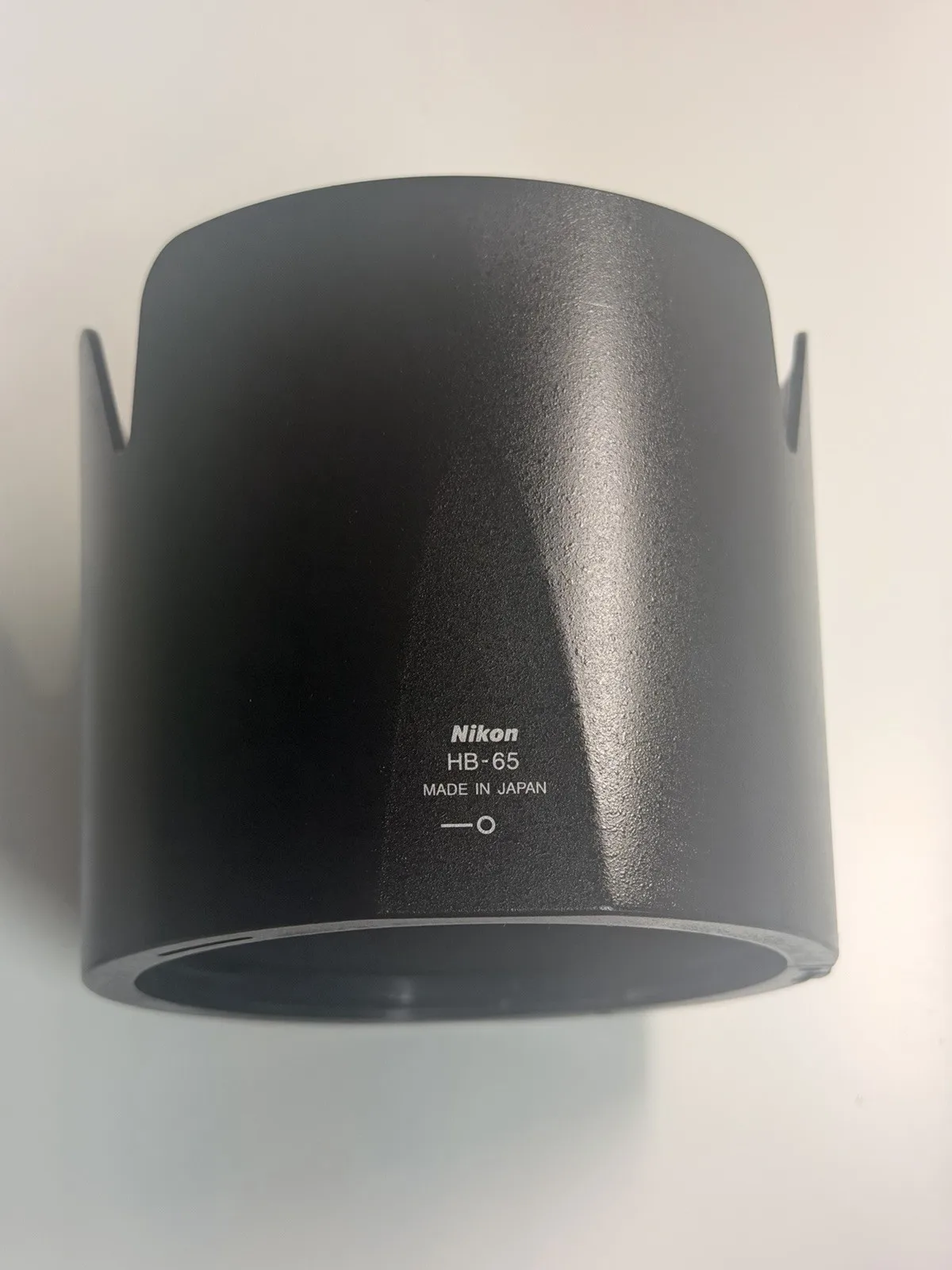

Lens hoodHB-65 - Bayonet-type petal-shaped
TeleconvertersNikon AF-I Teleconverter TC-14E→ 112-560mm F/6.3-7.8 Nikon AF-S Teleconverter TC-14E II→ 112-560mm F/6.3-7.8 Nikon AF-S Teleconverter TC-14E III→ 112-560mm F/6.3-7.8 Nikon AF-S Teleconverter TC-17E II→ 136-680mm F/7.7-9.5 Nikon AF-I Teleconverter TC-20E→ 160-800mm F/9-11.2 Nikon AF-S Teleconverter TC-20E II→ 160-800mm F/9-11.2 Nikon AF-S Teleconverter TC-20E III Aspherical→ 160-800mm F/9-11.2
EraDigital era

Additional Info02

Lens TypeTelephoto zoom lens

Summary02

Nikon F-mount AF-S zoom lens with an 80-400mm focal range and maximum apertures of f/4.5-5.6. Designed for general telephoto use such as wildlife and sports, with Vibration Reduction (VR) for camera shake control.

AI-assisted summary — verify against linked sources

Specifications from thelensdb

Where can this lens be adapted?

The Nikon F mount has a flange distance of 46.5 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work

  • Nikon G lenses have no aperture ring: use an adapter with an aperture lever. Nikon E lenses set the aperture electronically: use an electronic adapter.
  • Sony EAdapter · 28.5 mm
  • Canon RFAdapter · 26.5 mm
  • Nikon ZAdapter · 30.5 mm
  • Fujifilm XAdapter · 28.8 mm
  • L-MountAdapter · 26.5 mm
  • Micro Four ThirdsAdapter · 27.25 mm
  • Fujifilm G (GFX)Adapter · 19.8 mm

    Covers full-frame: it can vignette on a medium format sensor.

  • Canon EF-MAdapter · 28.5 mm
  • Canon EFAdapter · 2.5 mm

    A rear element that sticks out can hit the camera mirror.

  • Nikon FNative

Sources03

thelensdb.comVisit ↗
dpreview.comVisit ↗
Nikon AF-S Nikkor 80-400mm F/4.5-5.6G ED VR

Other Mounts03

No alternate mounts are indexed for this family yet.
