N°107002 · Family detail
CanonTilt-shift·CANON EF mount·2009

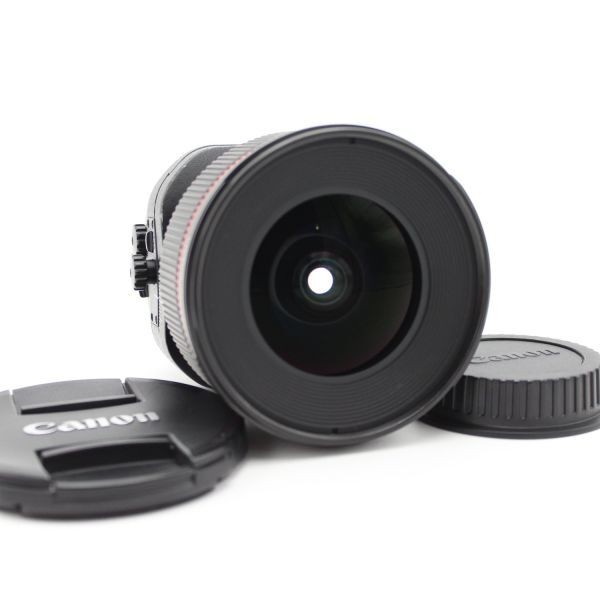

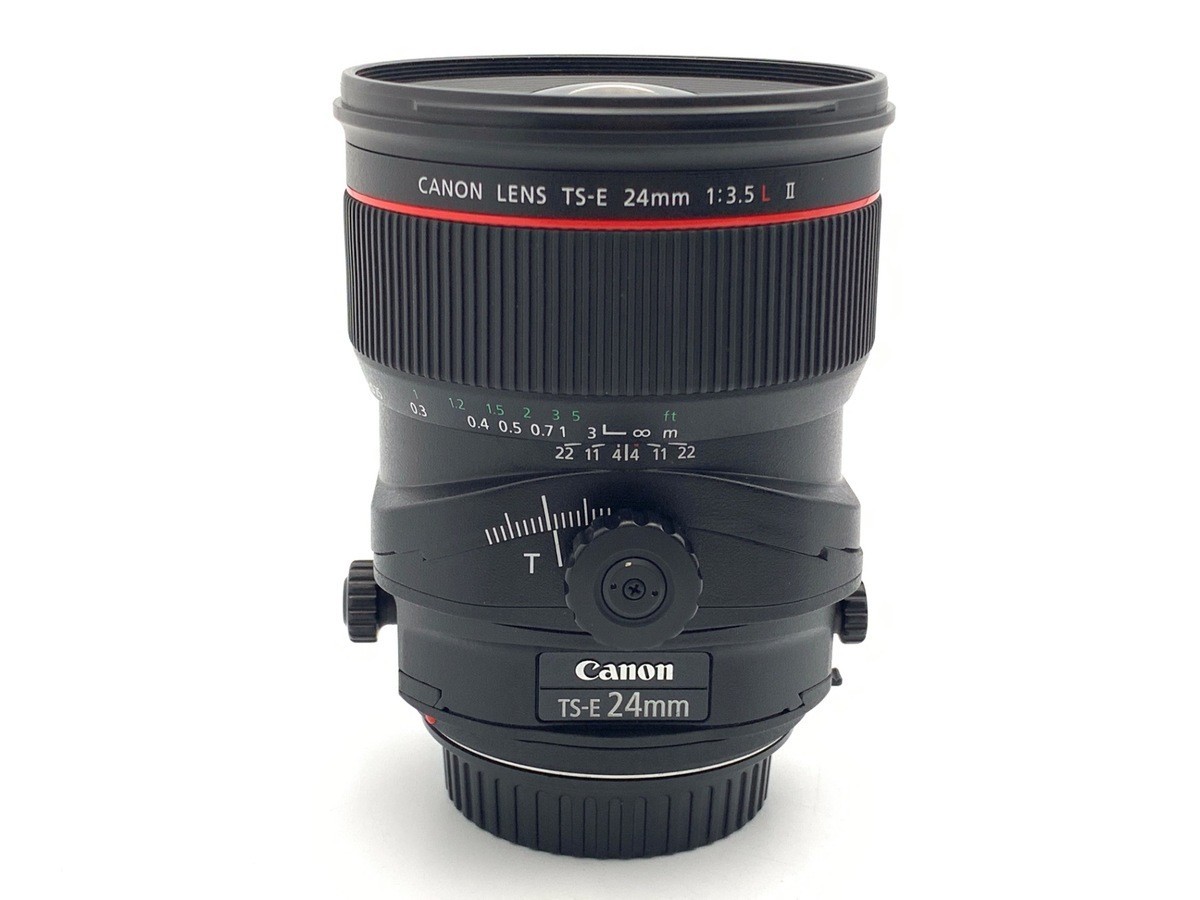

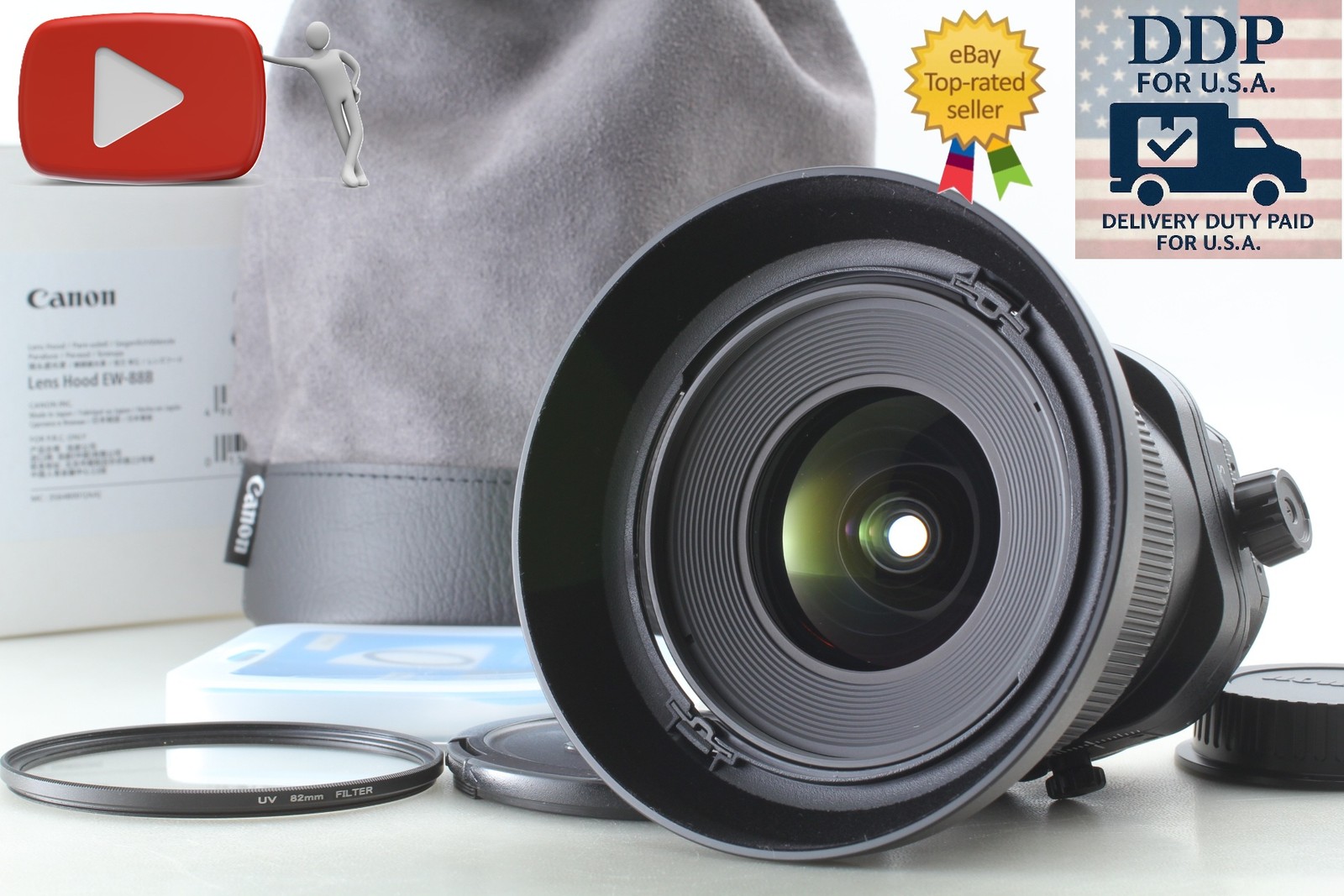

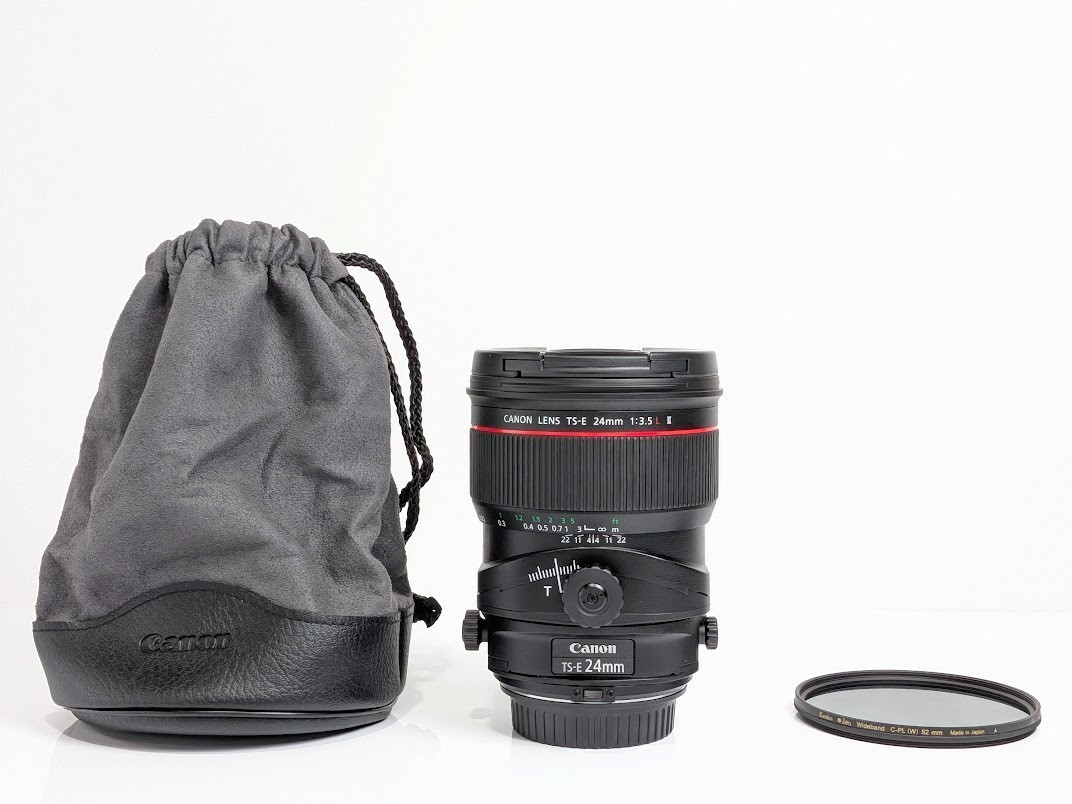

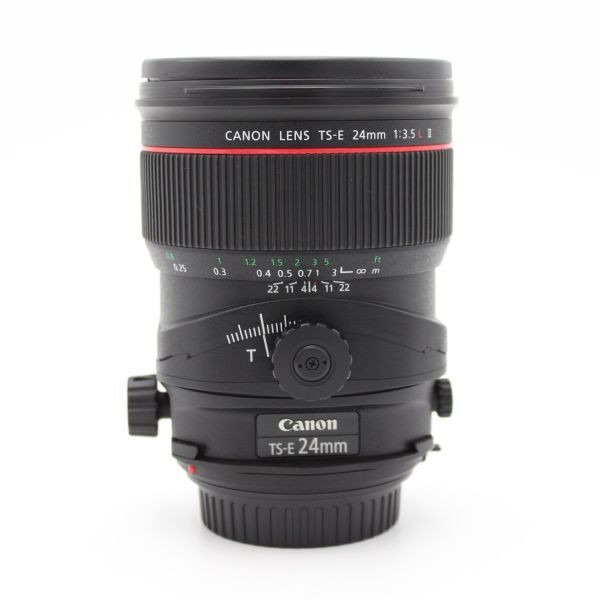

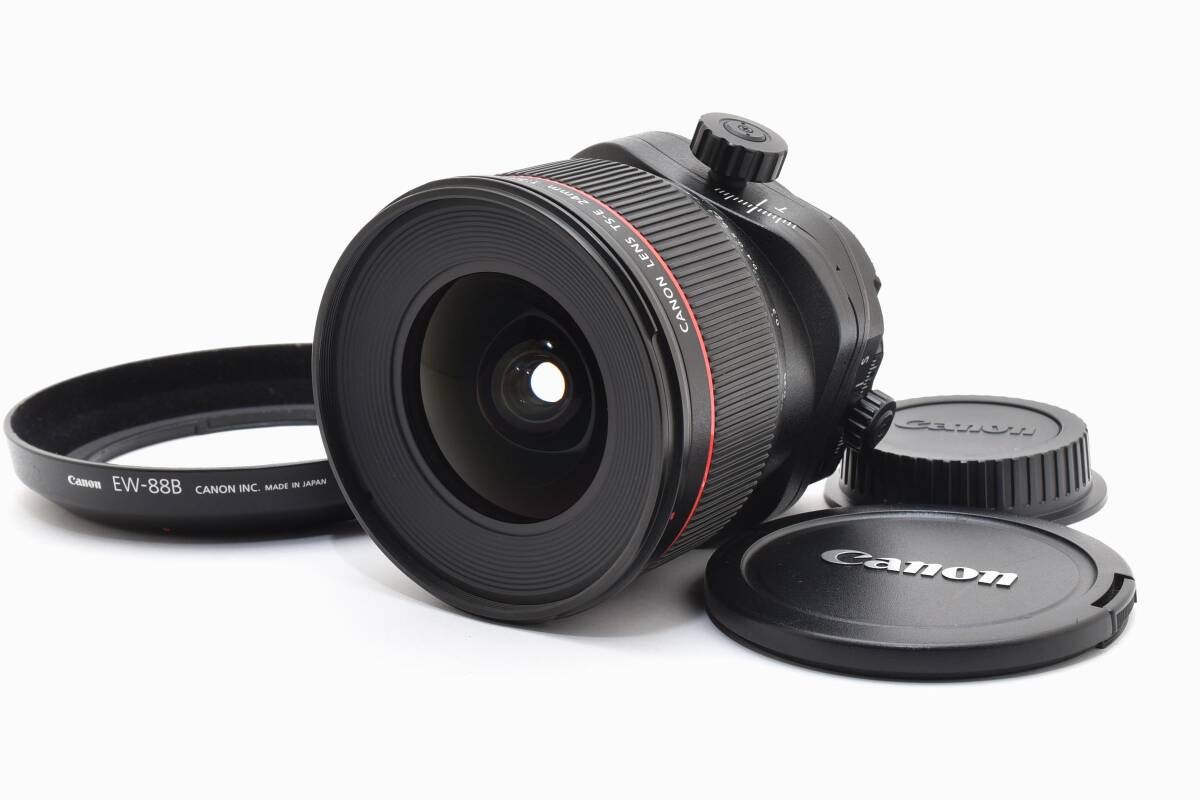

Canon TS-E 24mm F/3.5L II
Specifications01
MountCANON EF
Focal length24mm
Max aperturef/3.5
TypeTilt-shift · Wide · Prime
Release year2009
Weight780 g
Filter size82 mm
Physical length106 mm
Min focus distance0.21 m
Max magnification0.3401
Aperture blades8
Optical elements16
Groups11
AutofocusNo
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodEW-88B - Bayonet-type round
TeleconvertersNot compatible
EraDigital era
Production statusIn production
Additional Info02
Lens TypeShift lens
Summary02
Canon TS-E 24mm F3.5L II is an EF-mount tilt-shift prime lens for perspective control and close-to-subject architecture or landscape work. It has a fixed maximum aperture of f/3.5.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
