N°106851 · Family detail
CanonZoom·CANON RF mount·2023

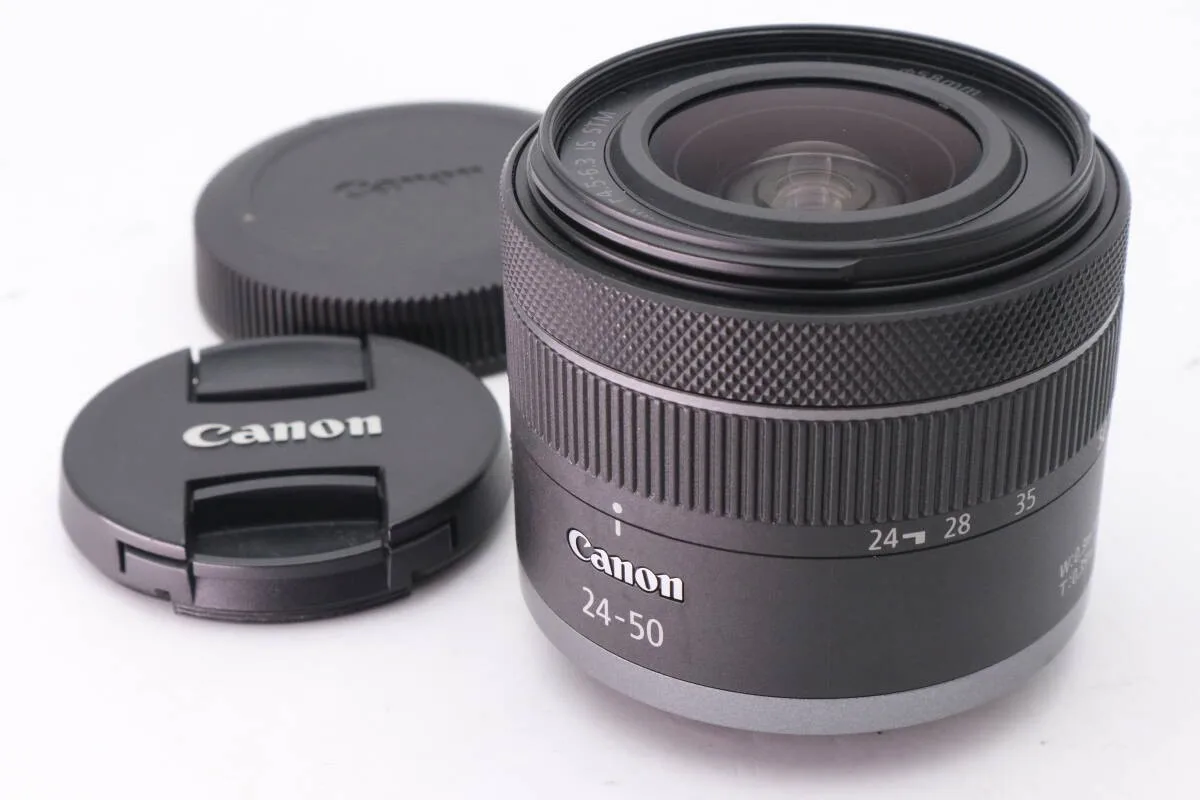

Canon RF 24-50mm F/4.5-6.3 IS STM
Specifications01
MountCANON RF
Focal length24-50mm
Max aperturef/4.5
TypeZoom
Release year2023
Weight210 g
Filter size58 mm
Physical length94 mm
Min focus distance0.3 m
Max magnification0.1901
Aperture blades7
Optical elements8
Groups8
Min aperturef/6.3
AutofocusYes
StabilizationYes
Aperture controlNone
The aperture is controlled from the camera

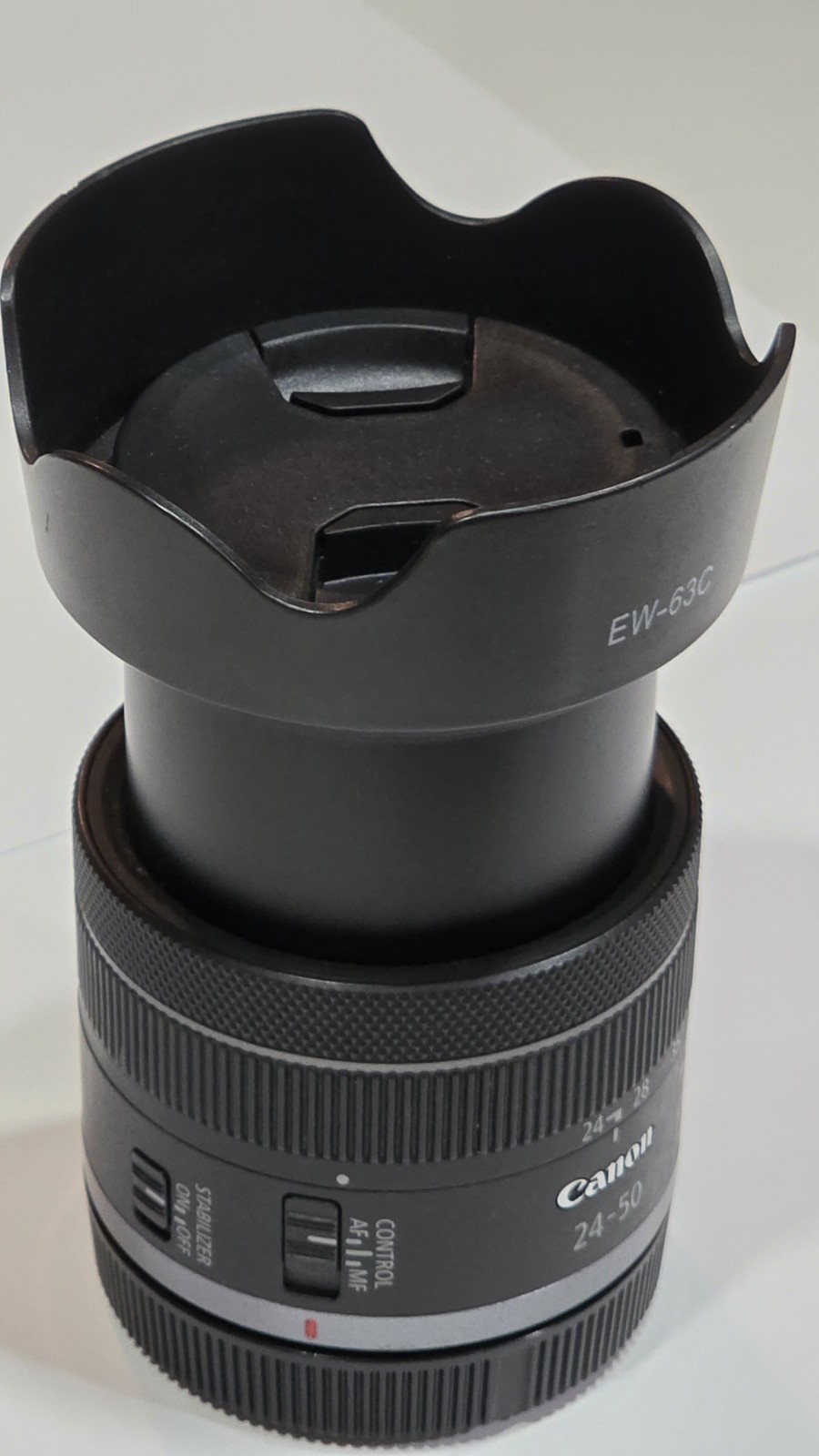

Lens hoodEW-63C - Bayonet-type petal-shaped
TeleconvertersNot compatible
Sensor coverage43.3 mm
EraDigital era
Production statusIn production
Additional Info02
SpecialIS STM
Lens TypeStandard zoom lens
Summary02
Canon RF 24-50mm is a compact standard zoom with variable maximum aperture (F/4.5-6.3) and built-in image stabilization, intended for general-purpose photography on Canon RF-mount mirrorless cameras.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon RF mount has a flange distance of 20 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- RF-S lenses cover APS-C only.
- Sony EAdapter · 2 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFNative
- Nikon ZAdapter · 4 mm
- Fujifilm XAdapter · 2.3 mm
- Canon EF-MAdapter · 2 mm
No plain adapter reaches infinity focus on: L-Mount, Micro Four Thirds, Fujifilm G (GFX), Canon EF, Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
