N°105156 · Family detail
CanonZoom·CANON EF mount·1990

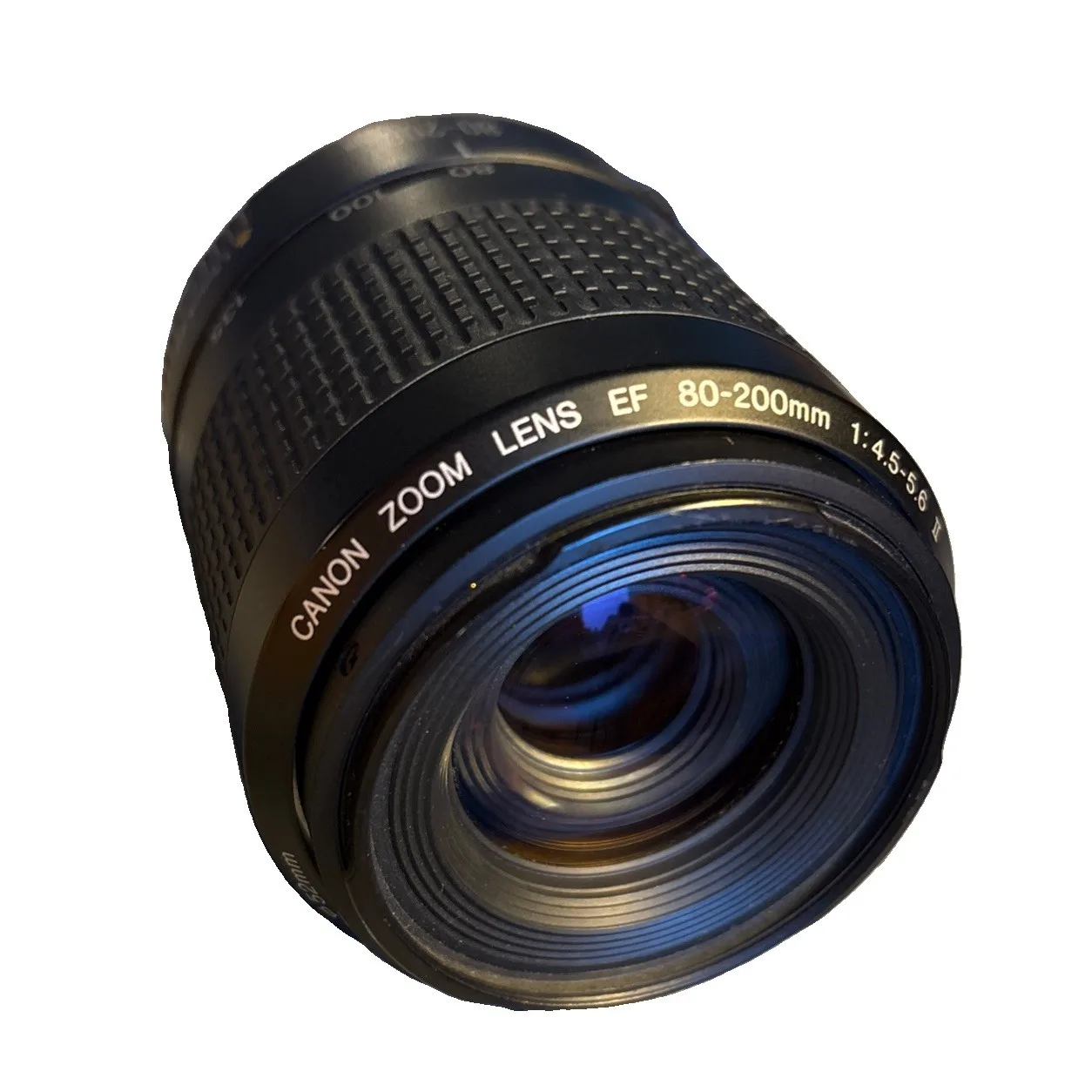

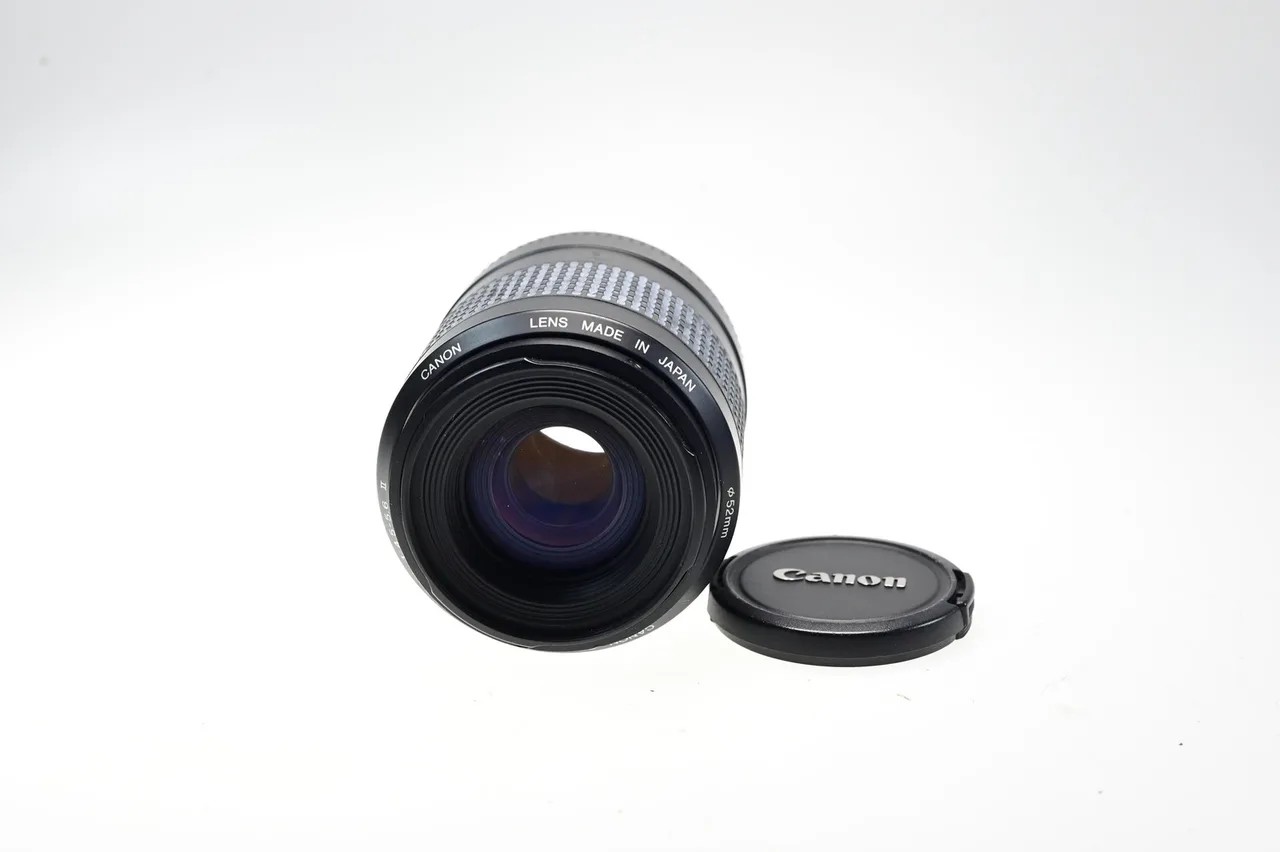

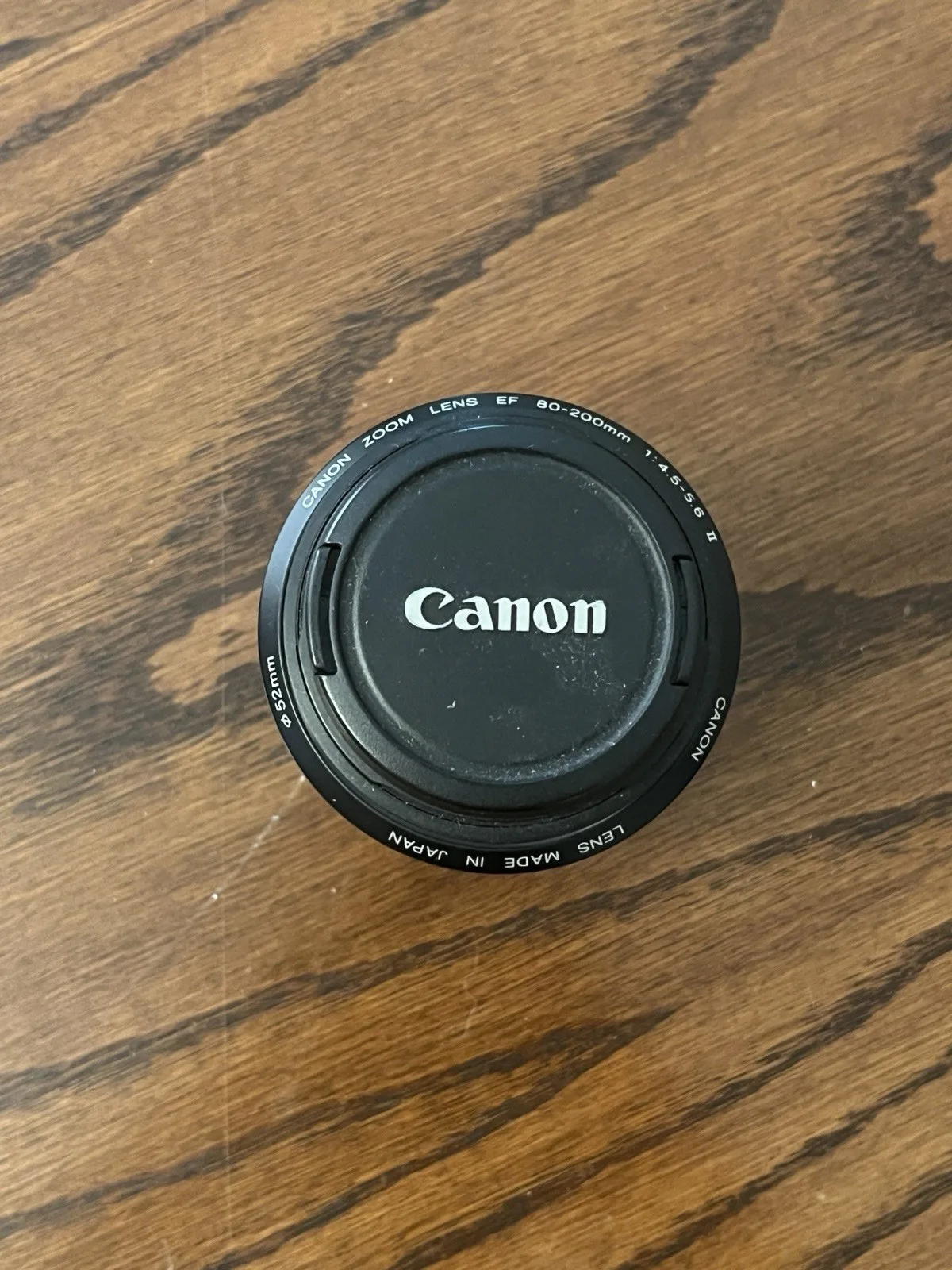

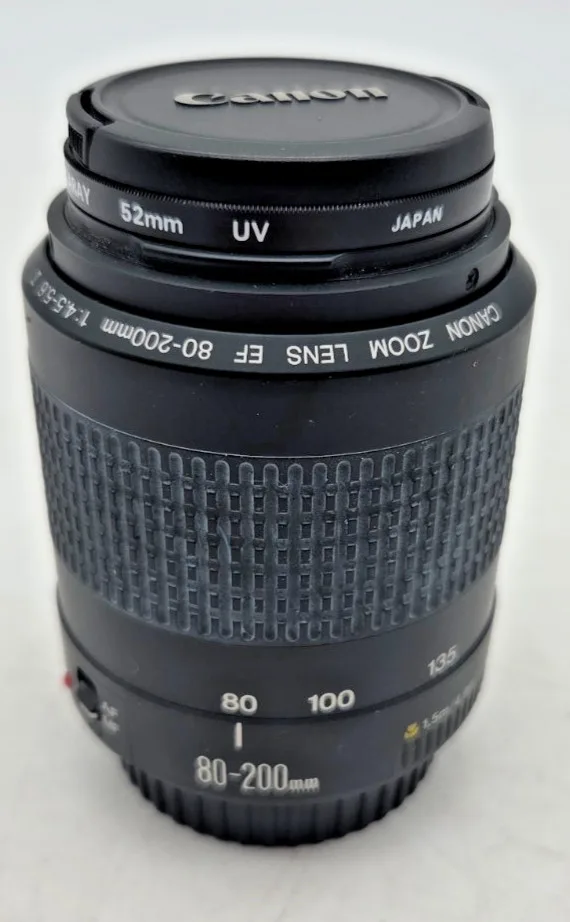

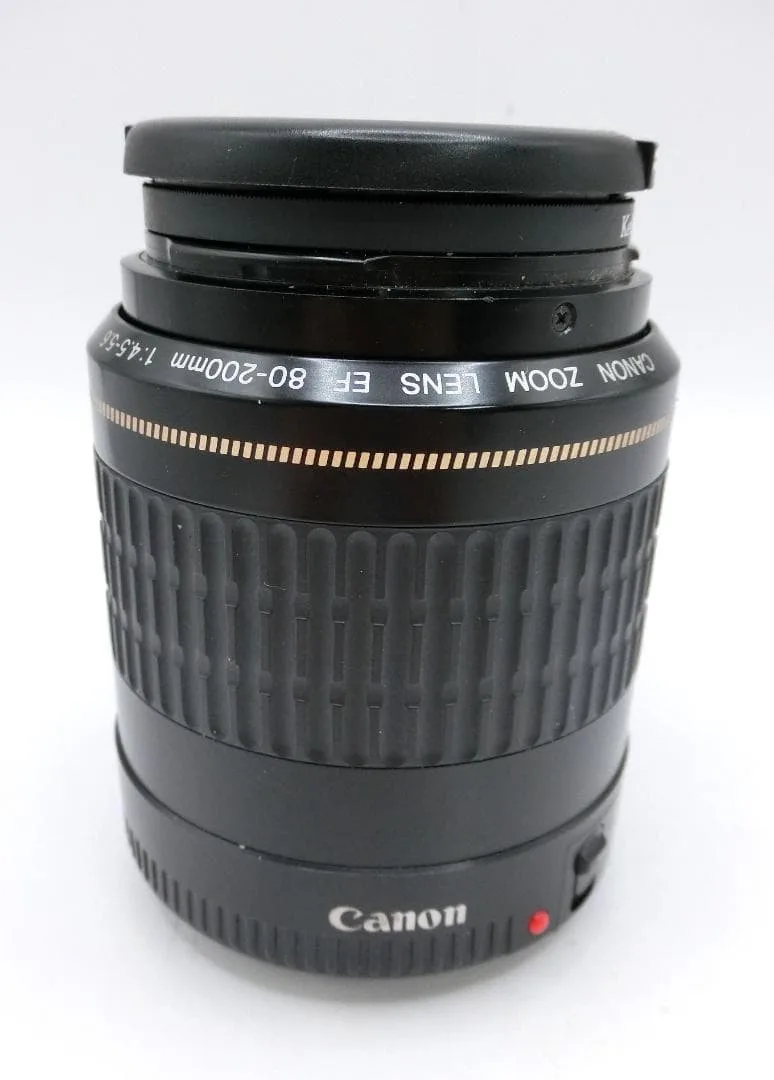

Canon EF 80-200mm F/4.5-5.6
Specifications01
MountCANON EF
Focal length80-200mm
Max aperturef/4.5
TypeZoom
Release year1990
Weight275 g
Filter size52 mm
Physical length77.8 mm
Min focus distance1.5 m
Max magnification0.16
Aperture blades5
Optical elements10
Groups7
Min aperturef/5.6
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodNot available
TeleconvertersNot compatible
Sensor coverage43.3 mm
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeTelephoto zoom lens
Summary02
Canon EF mount zoom lens with a focal length range of 80-200mm and a variable maximum aperture of f/4.5-5.6. Intended for general telephoto use such as portraits and outdoor events.
Where can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
