N°103071 · Family detail
CanonTilt-shift·CANON EF mount·1991

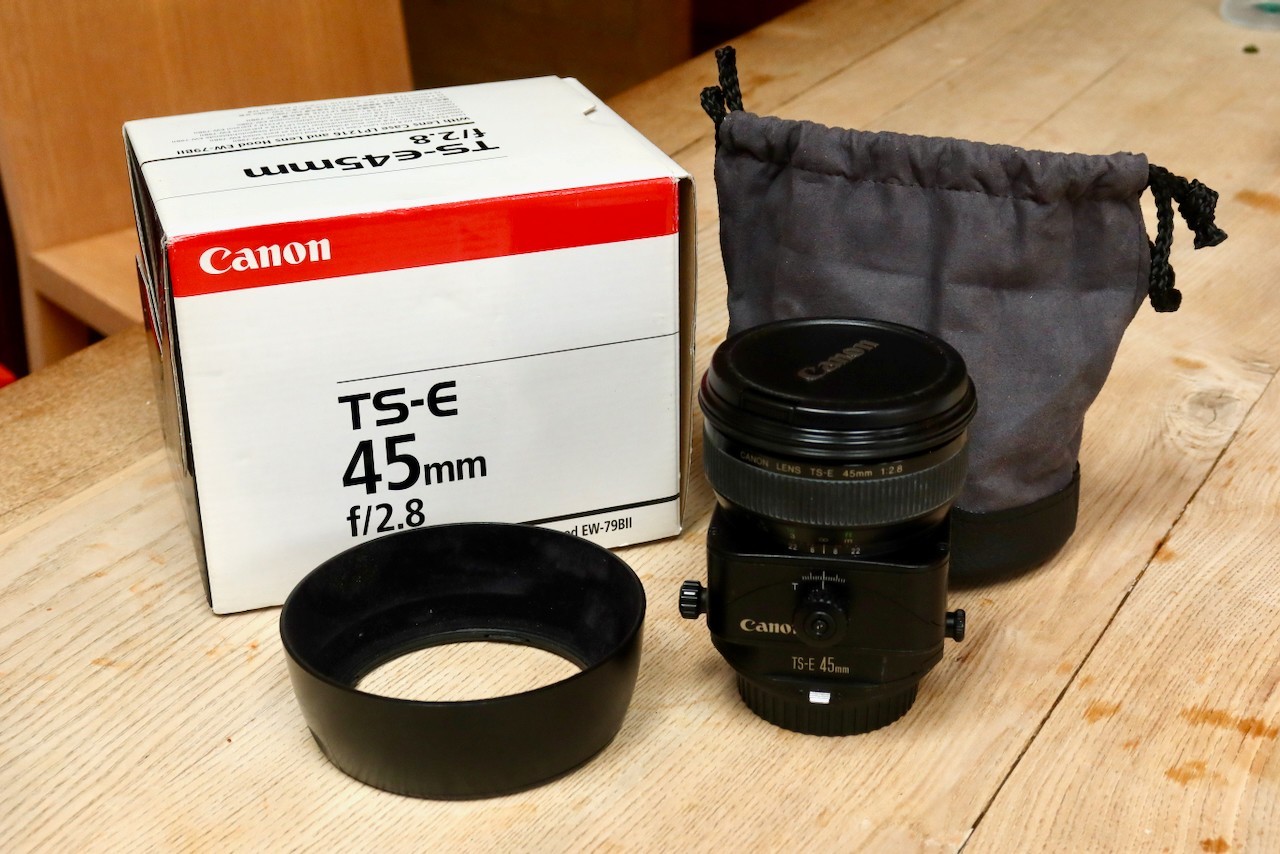

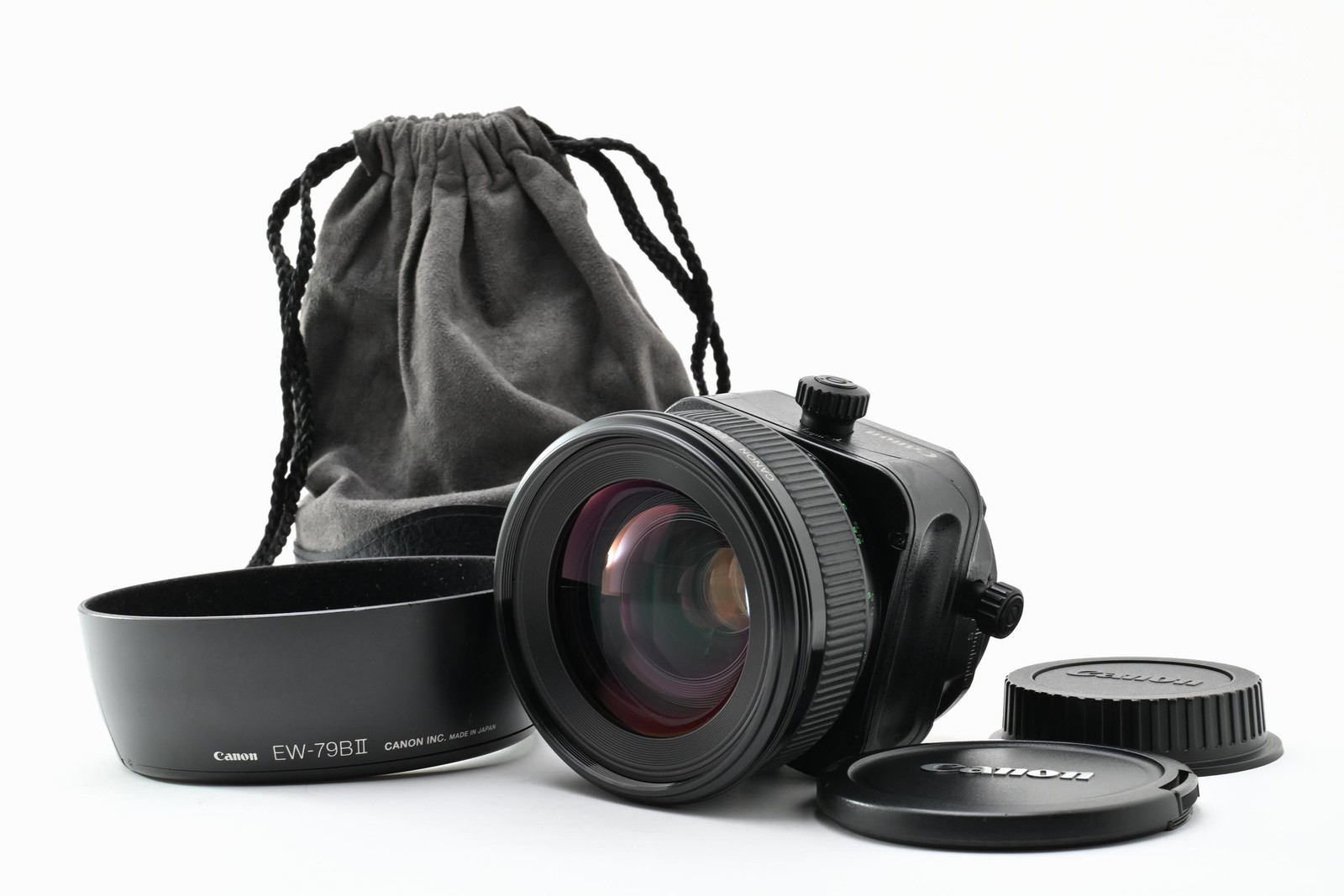

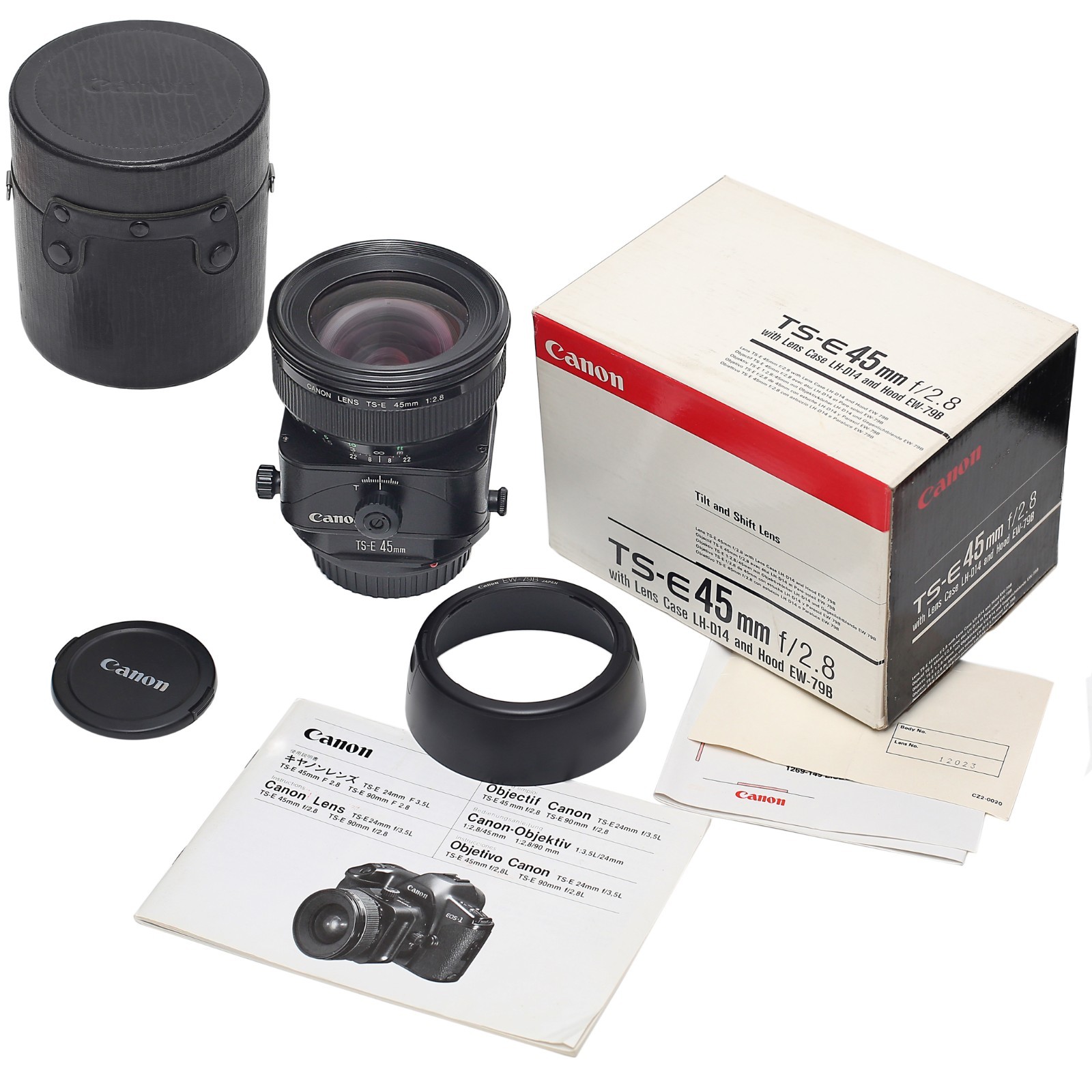

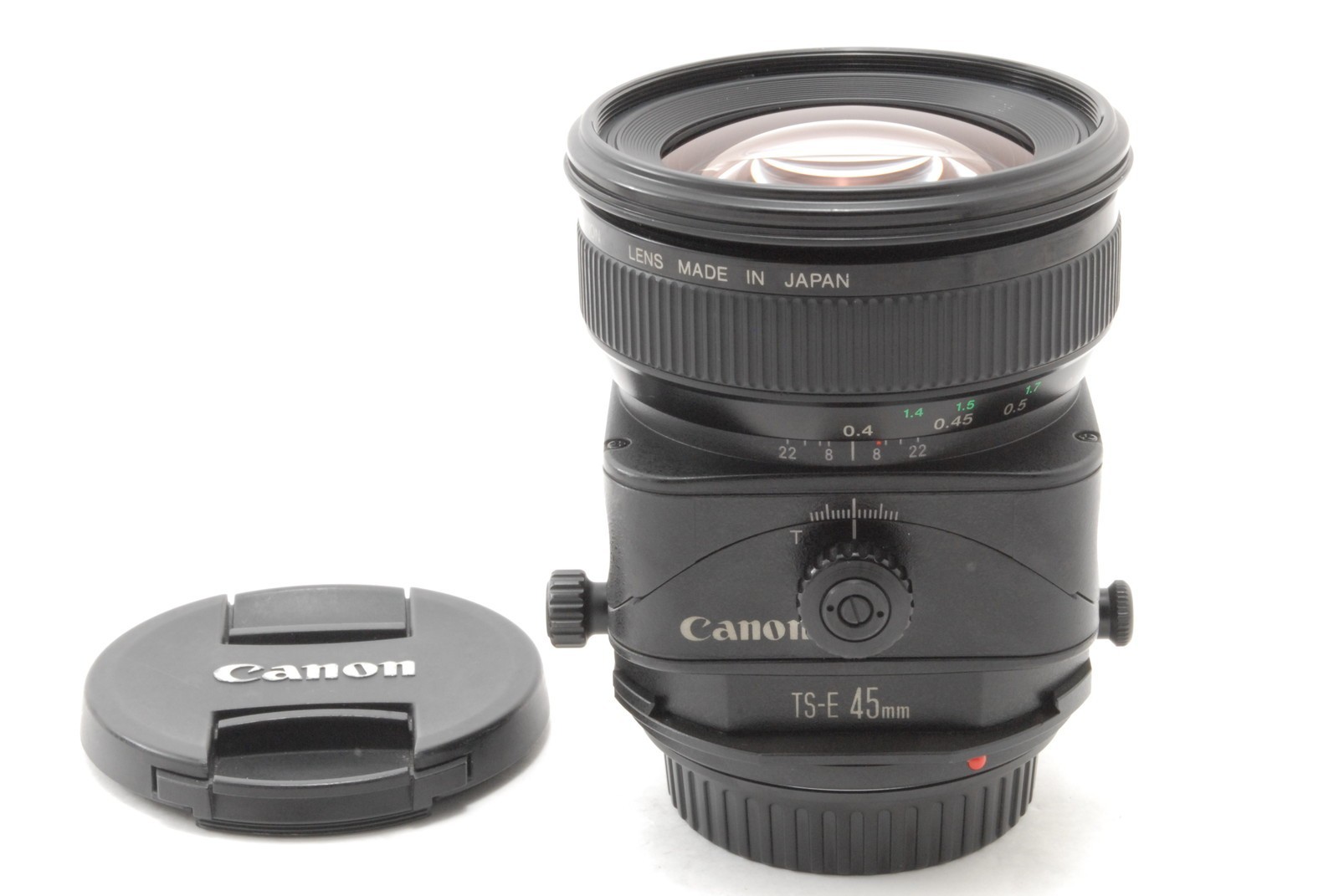

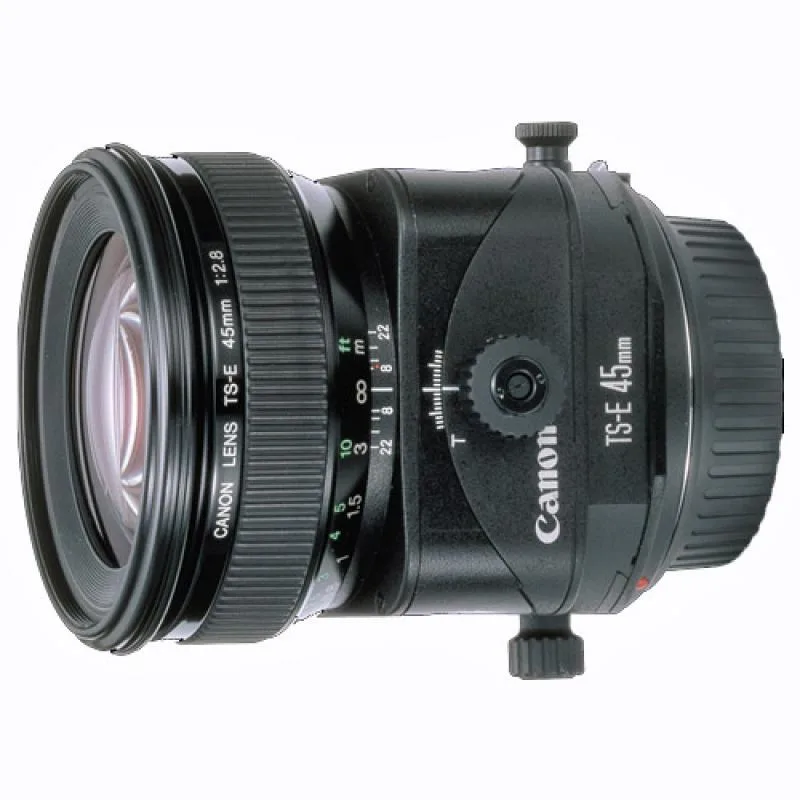

Canon TS-E 45mm F/2.8
Specifications01
MountCANON EF
Focal length45mm
Max aperturef/2.8
TypeTilt-shift · Prime
Release year1991
Weight645 g
Filter size72 mm
Physical length90.1 mm
Min focus distance0.4 m
Max magnification0.16
Aperture blades8
Optical elements10
Groups9
AutofocusNo
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodEW-79B - Snap-on round
TeleconvertersNot compatible
Sensor coverage55 mm
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeShift lens
Field Notes02
Canon TS-E 45mm F/2.8 is a tilt-shift prime lens for the Canon EF mount, providing perspective control and selective focus. Suitable for architecture and product work, with a fixed f/2.8 maximum aperture.
AI-assisted summary — verify against linked sources
Other Mounts03
No alternate mounts are indexed for this family yet.
