N°102965 · Family detail
CanonPrime·CANON EF mount·2012

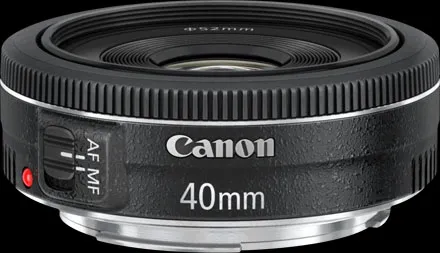

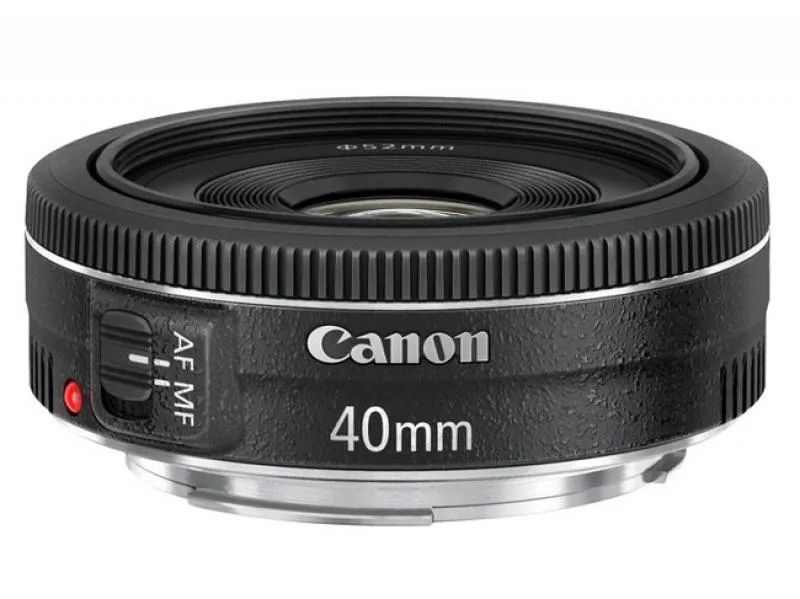

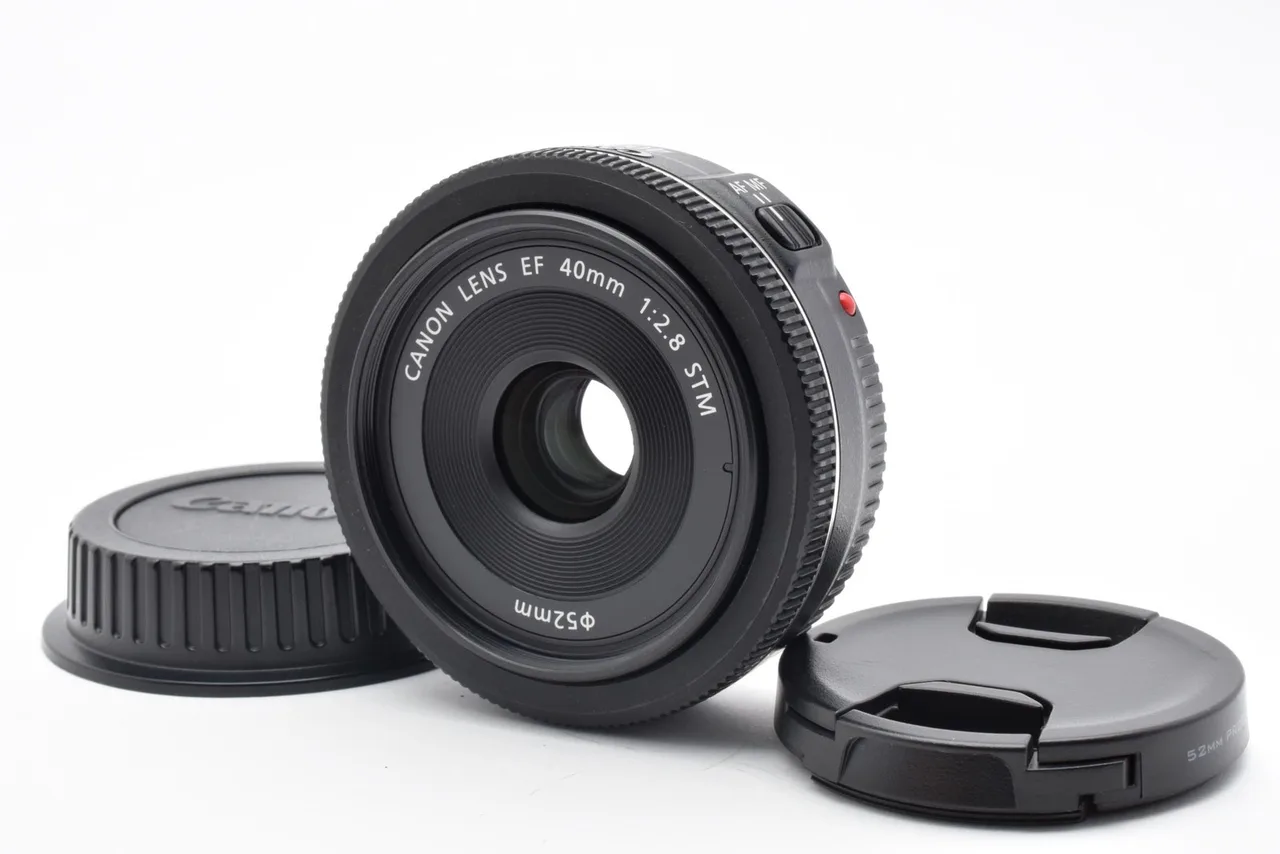

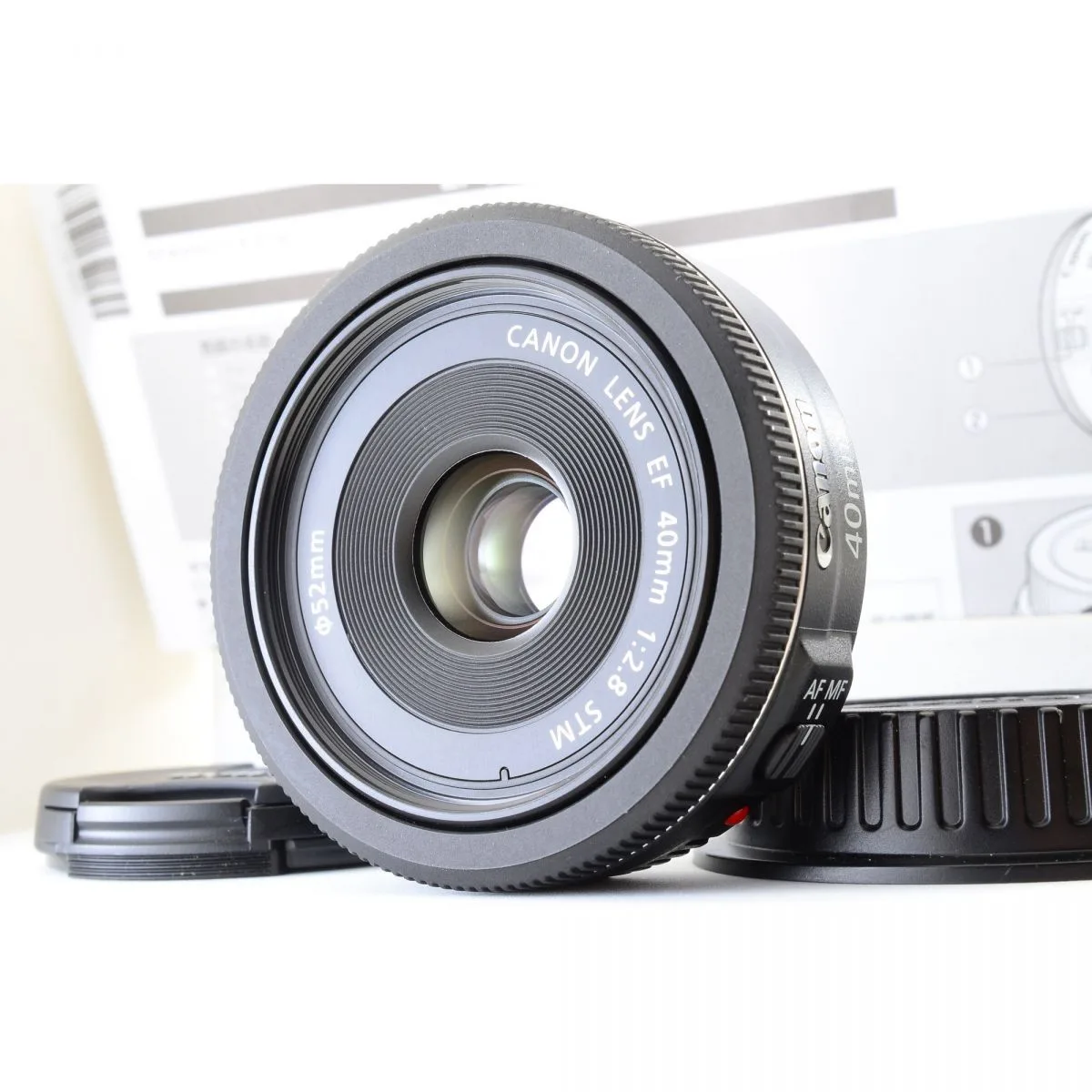

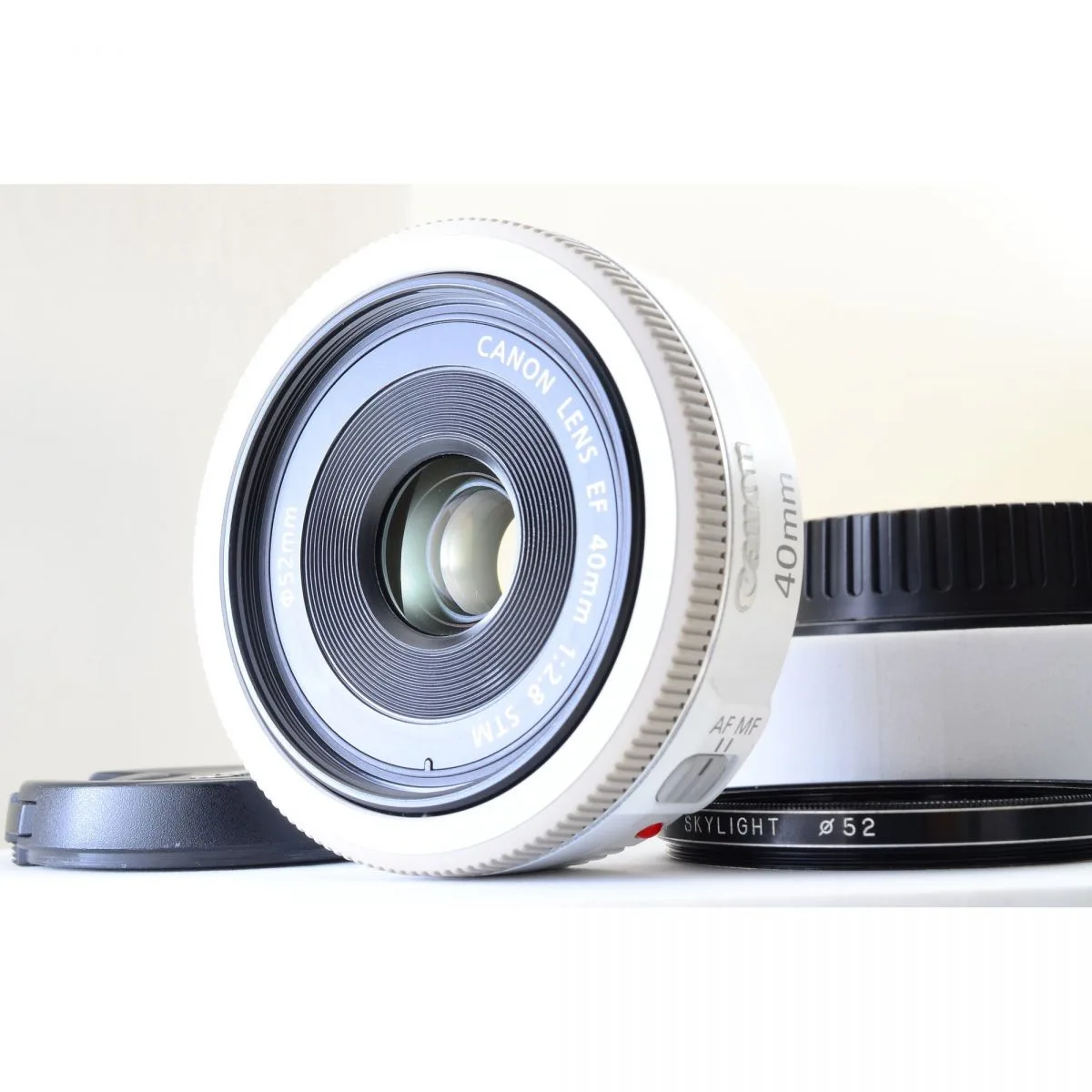

Canon EF 40mm F/2.8 STM
Specifications01
MountCANON EF
Focal length40mm
Max aperturef/2.8
TypePrime
Release year2012
Weight130 g
Filter size52 mm
Physical length22.8 mm
Min focus distance0.3 m
Max magnification0.1799
Aperture blades7
Optical elements6
Groups4
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera
Lens hoodES-52 - Screw-type round
TeleconvertersNot compatible
Sensor coverage43.3 mm
EraDigital era
Production statusDiscontinued
Additional Info02
SpecialSTM
Lens TypeWide-angle prime lens
Summary02
Canon EF 40mm prime lens with a maximum aperture of f/2.8. Designed for general-purpose photography on Canon EF-mount cameras, suitable for low-light and everyday use.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
