N°102509 · Family detail
CanonMacro·CANON EF mount·2017

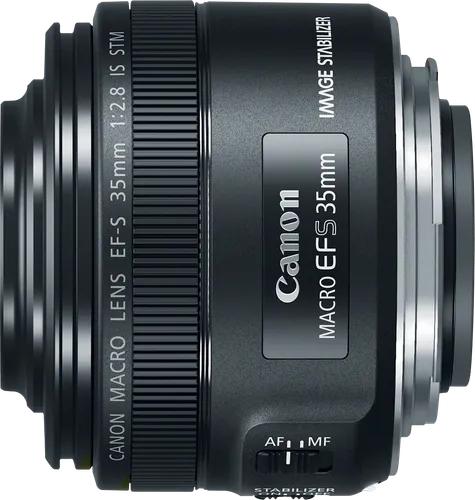

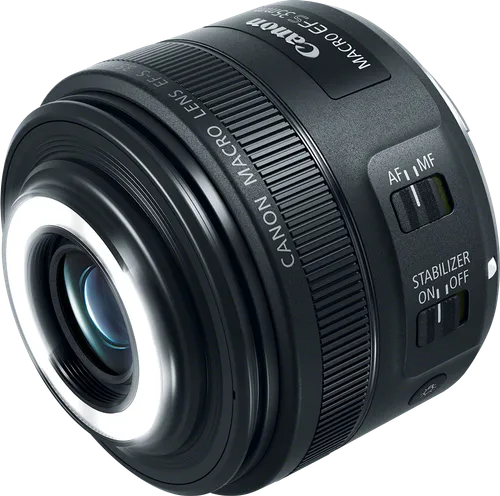

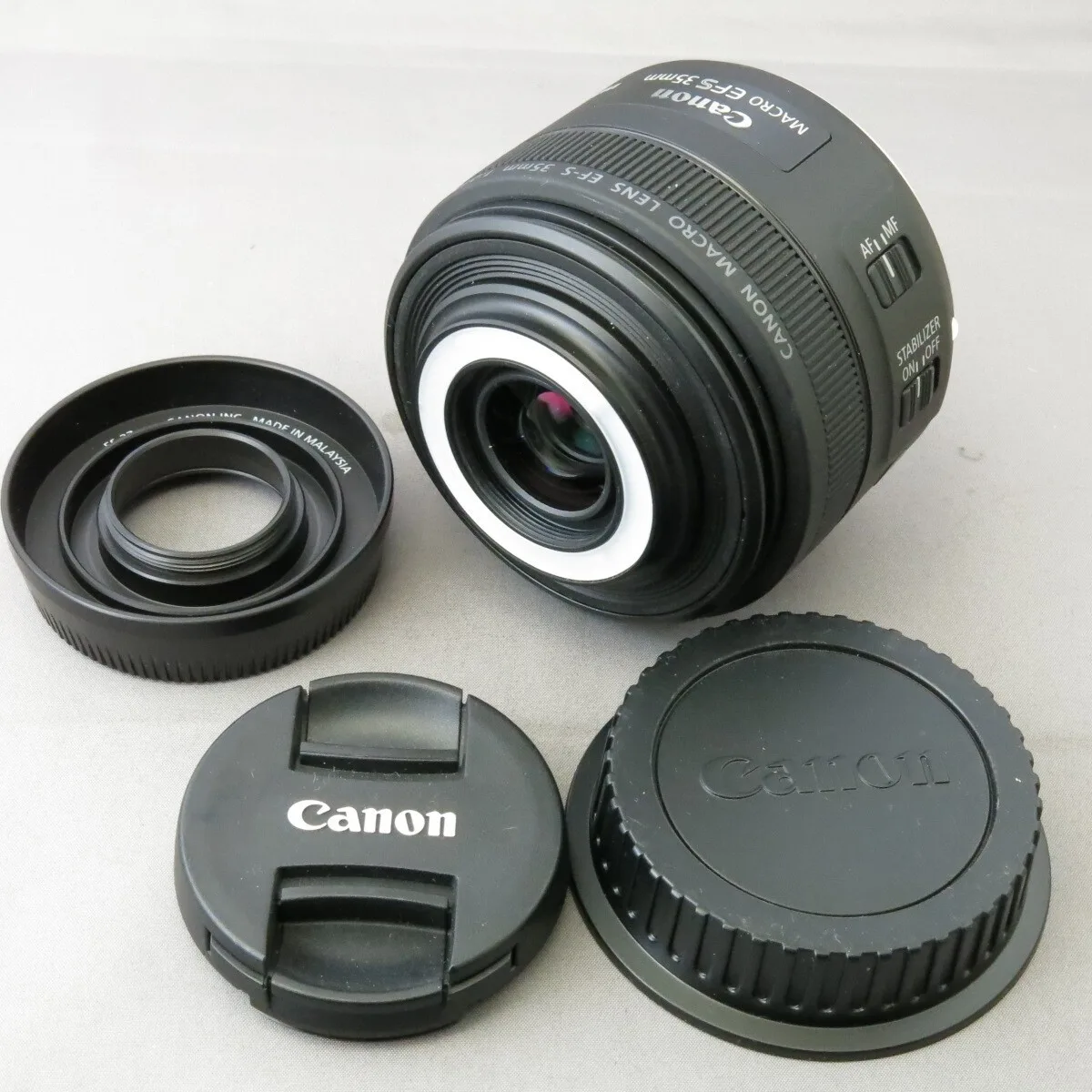

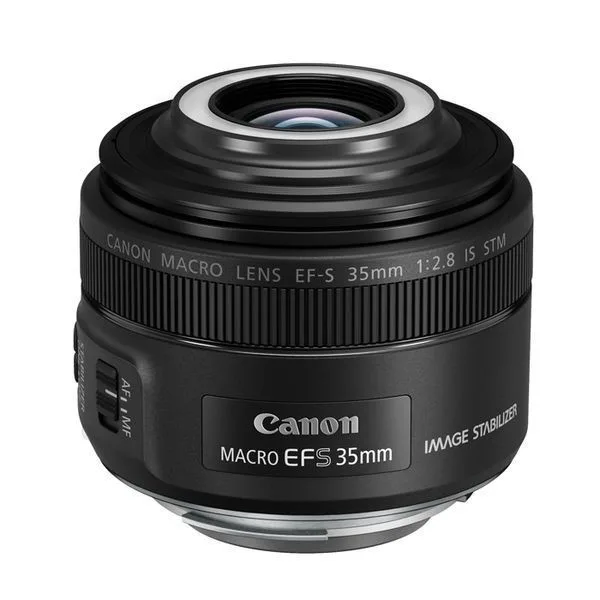

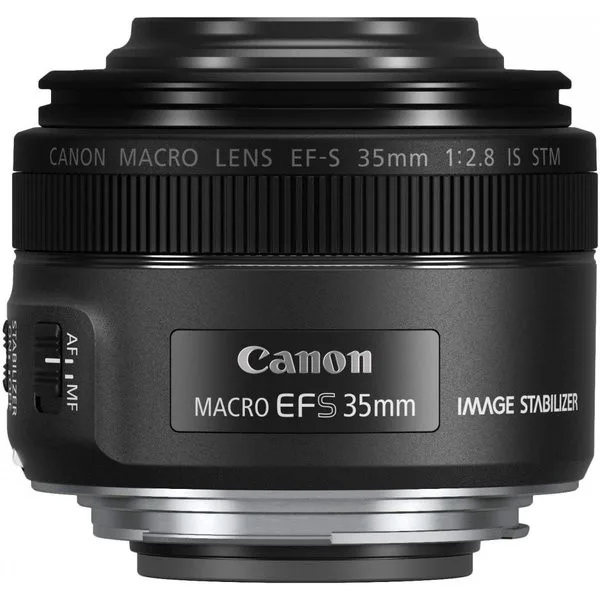

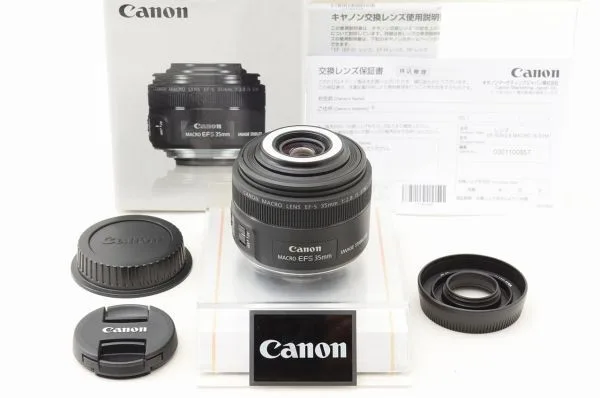

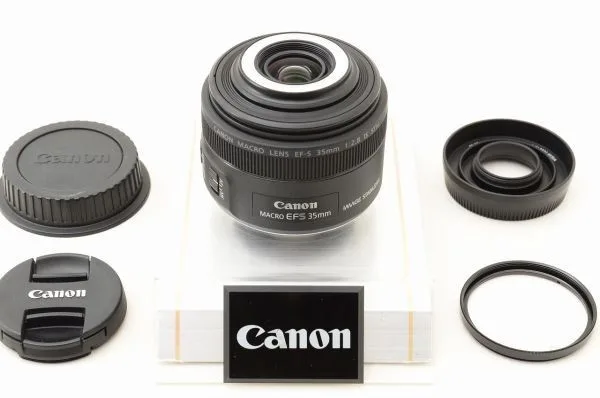

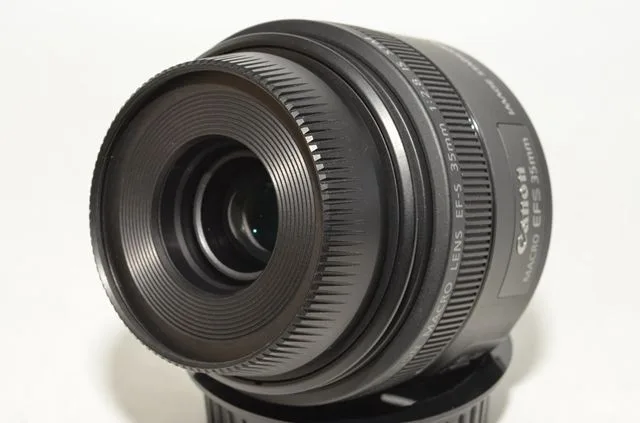

Canon EF-S 35mm F/2.8 Macro IS STM
Specifications01
MountCANON EF
Focal length35mm
Max aperturef/2.8
TypeMacro · Wide · Prime
Release year2017
Weight190 g
Filter size49 mm
Physical length55.8 mm
Min focus distance0.13 m
Max magnification1
Aperture blades7
Optical elements10
Groups6
AutofocusYes
StabilizationYes
Aperture controlNone
The aperture is controlled from the camera
Lens hoodES-27 - Screw-type round
TeleconvertersNot available
Sensor coverageAPS-C
EraDigital era
Production statusDiscontinued
Additional Info02
SpecialMACRO IS STM
Lens TypeMacro lens
Summary02
Canon EF-S 35mm prime macro lens with a fixed f/2.8 maximum aperture. Designed for close-up work with Optical Image Stabilizer (IS), suitable for general shooting and macro photography.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
