N°102502 · Family detail
CanonWide·CANON FD mount·1973

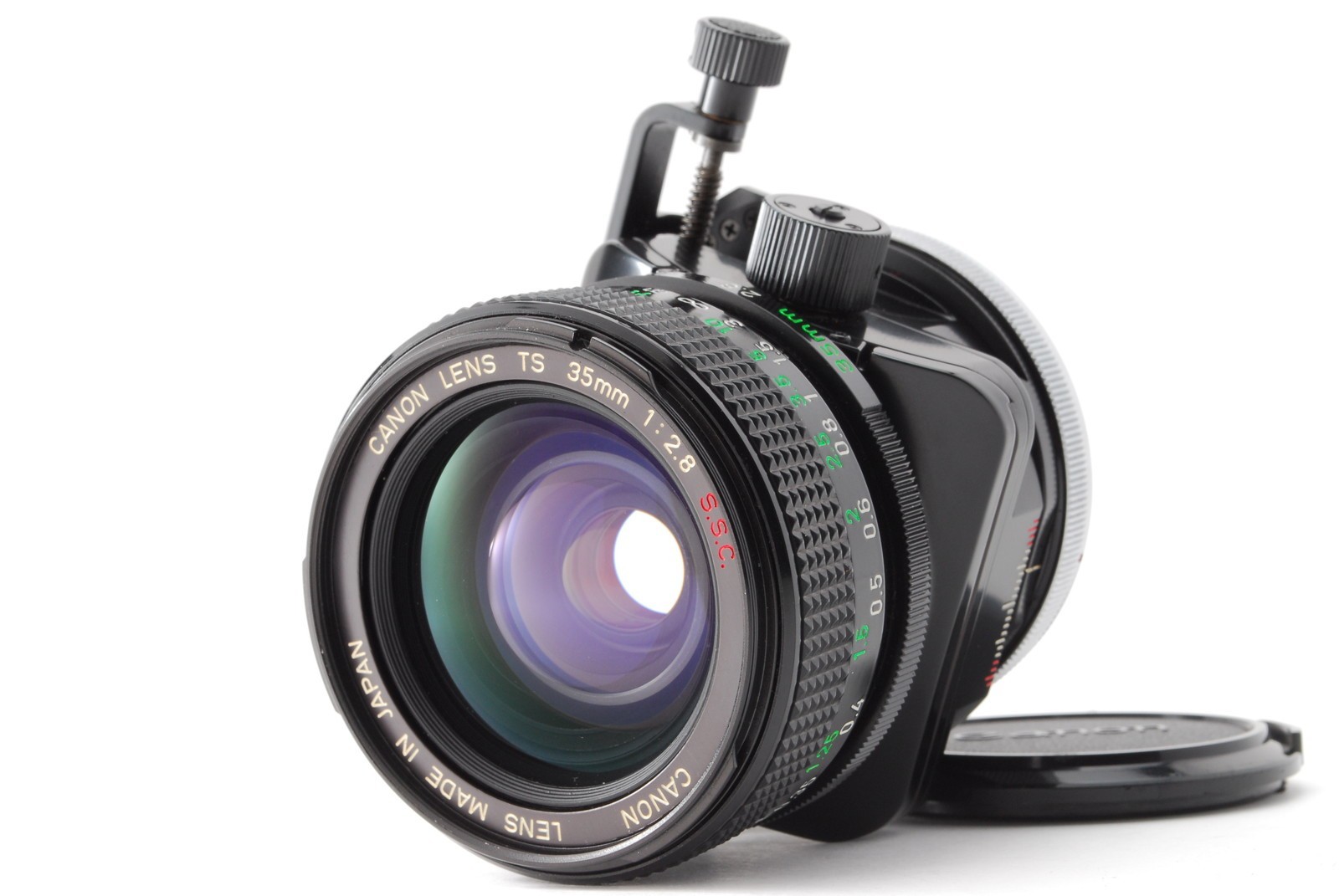

Canon FD TS 35mm F/2.8 S.S.C.
Specifications01
MountCANON FD
Focal length35mm
Max aperturef/2.8
TypeWide · Prime
Release year1973
Weight550 g
Filter size58 mm
Min focus distance0.3 m
Max magnification0.1923
Aperture blades8
Optical elements9
Groups8
AutofocusNo
StabilizationNo
Aperture controlAperture ring
Lens hoodBW-58B - Bayonet-type round
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeShift lens
Summary02
Canon FD TS 35mm lens for the Canon FD mount. It’s a 35mm prime with a maximum aperture of f/2.8, intended for general photography and use cases that benefit from tilt-shift perspective control.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon FD mount has a flange distance of 42 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- FD lenses stay at full aperture until the camera moves a lever on the lens. Use an FD adapter with a ring that moves this lever.
- Sony EAdapter · 24 mm
- Canon RFAdapter · 22 mm
- Nikon ZAdapter · 26 mm
- Fujifilm XAdapter · 24.3 mm
- L-MountAdapter · 22 mm
- Micro Four ThirdsAdapter · 22.75 mm
- Fujifilm G (GFX)Adapter · 15.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 24 mm
No plain adapter reaches infinity focus on: Canon EF, Nikon F.
Other Mounts03
No alternate mounts are indexed for this family yet.
