N°100506 · Family detail
CanonWide·CANON FD mount·1973

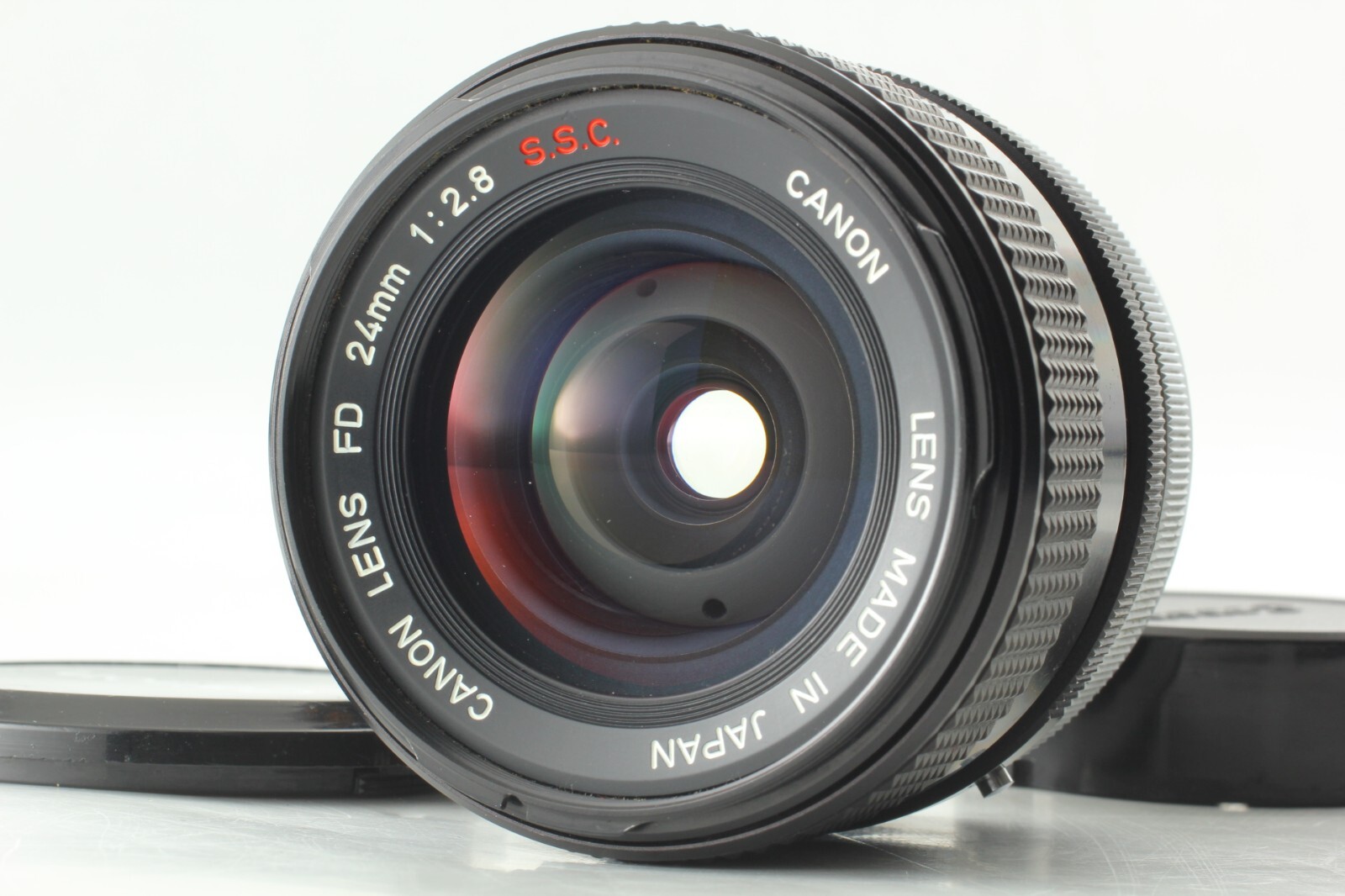

Canon FD 24mm F/2.8 S.S.C.
Specifications01
MountCANON FD
Focal length24mm
Max aperturef/2.8
TypeWide · Prime
Release year1973
Weight330 g
Filter size55 mm
Min focus distance0.3 m
Max magnification0.114
Aperture blades6
Optical elements9
Groups8
AutofocusNo
StabilizationNo
Aperture controlAperture ring (Manual settings + Auto Exposure setting)
Lens hoodBW-55B - Bayonet-type round
TeleconvertersCanon Extender FD 2X-B→ 48mm F/5.6
EraFilm era
Production statusDiscontinued
Additional Info02
Lens TypeWide-angle prime lens
Field Notes02
Canon FD 24mm f/2.8 wide-angle prime lens for Canon FD-mount cameras, designed for general wide, landscape, and low-light use. It uses a fixed 24mm focal length and a maximum aperture of f/2.8.
AI-assisted summary — verify against linked sources
Other Mounts03
No alternate mounts are indexed for this family yet.
