N°100368 · Family detail
SigmaMacro·CANON EF mount·2004

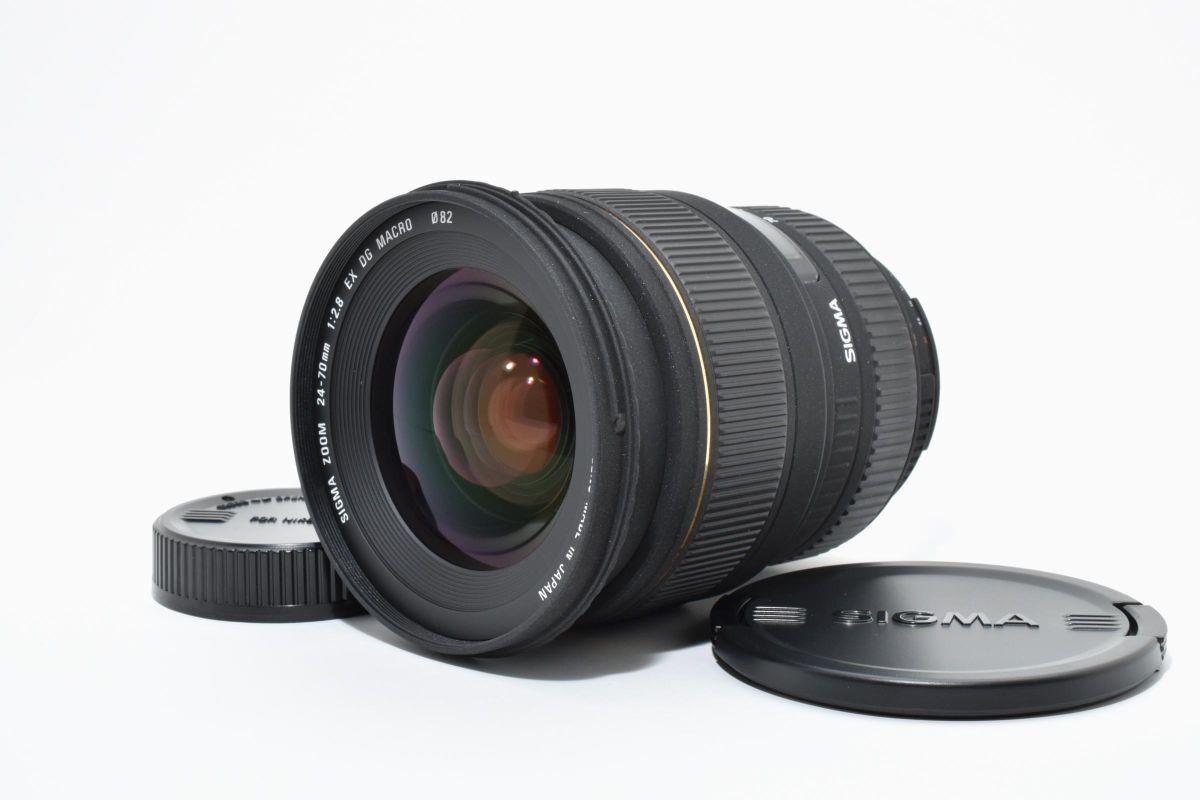

Sigma 24-70mm F/2.8 EX DG Macro
Specifications01
MountCANON EF
Focal length24-70mm
Max aperturef/2.8
TypeMacro · Zoom
Release year2004
Weight715 g
Filter size82 mm
Physical length116 mm
Min focus distance0.4 m
Max magnification0.2632
Aperture blades9
Optical elements14
Groups13
AutofocusYes
StabilizationNo
Aperture controlNone
The aperture is controlled from the camera(Canon EF, Minolta/Sony A, Sigma SA)
Aperture ring (Manual settings + Auto Exposure setting)(Nikon F, Pentax K)
Lens hoodLH875-02 - Bayonet-type petal-shaped
TeleconvertersNot compatible
EraDigital era
Production statusDiscontinued
Additional Info02
Lens TypeStandard zoom lens
Summary02
Sigma 24-70mm zoom lens for Canon EF, with a constant f/2.8 maximum aperture. Designed for general-purpose photography and includes a macro feature for close focusing.
AI-assisted summary — verify against linked sourcesWhere can this lens be adapted?
The Canon EF mount has a flange distance of 44 mm. A plain adapter fits a camera whose flange distance is at least 1.46 mm shorter. How lens adapters work
- Native lenses set the aperture, and often the focus, electronically. On a plain adapter they do not work. Use an electronic adapter made for this pair; for many pairs nobody makes one. Fully manual lenses are the exception.
- Sony EAdapter · 26 mm
The camera mount (46.1 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Canon RFAdapter · 24 mm
- Nikon ZAdapter · 28 mm
- Fujifilm XAdapter · 26.3 mm
- L-MountAdapter · 24 mm
The camera mount (51.6 mm) is narrower than the lens mount (54 mm). A large rear element can darken the corners.
- Micro Four ThirdsAdapter · 24.75 mm
- Fujifilm G (GFX)Adapter · 17.3 mm
Covers full-frame: it can vignette on a medium format sensor.
- Canon EF-MAdapter · 26 mm
- Canon EFNative
No plain adapter reaches infinity focus on: Nikon F.
Other Mounts03
This lens family is also indexed in 5 other mounts.
